Remote control

Supports remote on/off function

Positioning and orientation

Has positioning and orientation functions

Information output

Supports obtaining information such as the distance, speed, and angle of the detected object

Multi-target tracking

Supports multi-target tracking switching logic; can track all trajectories of multiple targets in real time

Target fusion processing function

Supports multi-sensor data fusion processing function

Defense zone management

Can flexibly set defense zones, accurately locate, and trigger intrusion alarms.

Anti-interference ability

Has online adjustment capabilities for detection sensitivity/speed range, and the ability to filter abnormal trajectory interference. Through sensitivity and abnormal trajectory filtering functions, it can effectively filter out false alarms caused by clutter

Online monitoring function

Has functions for monitoring working status and fault alarms; has equipment offline alarm function

Remote monitoring status

Has remote monitoring capabilities, can report equipment status in real time; has equipment online/offline alarm function

Online self-inspection function

The equipment has an online self-inspection function

Adaptive processing capability

Has moving target adaptive clutter processing capability and adaptive clutter map processing capability

Linkage function

Has radar pan-tilt linkage function, target tracking and capture for evidence (automatic tracking mode, radar tracking mode, image tracking mode)

Multi-site networking for blind spot filling

Has functions for networking of multiple devices; has capabilities for multi-site collaborative detection; has capabilities for blind spot filling in case of adjacent site failures

Working system

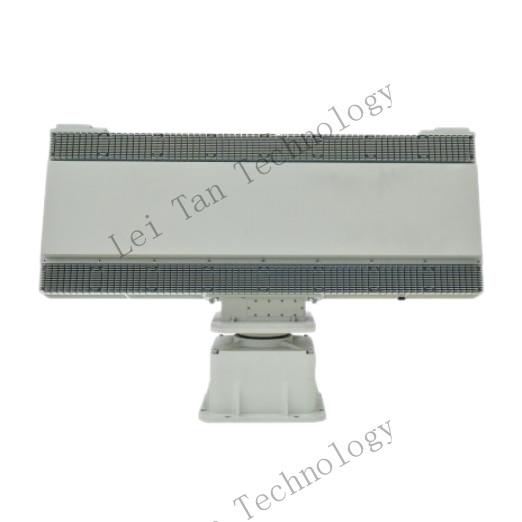

Active digital phased array (azimuth mechanical scanning + elevation electronic scanning)/pulse Doppler.

Working frequency band

X band

Effective detection range

100m～5.0km (drone RCS≥0.01㎡).

Azimuth coverage

360°

Elevation coverage

40°

Detection speed

1.8km/h～270km/h

Azimuth accuracy

≤0.5°(search)≤0.3°(tracking)

Elevation accuracy

≤1.0°(search)≤0.5°(tracking).

Range accuracy

≤10m

Data rate

≥0.2Hz.

Data interface

RJ45/1 100Mbps Ethernet

Power input

≤350W (power consumption) AC200-AC240 (input)

Working temperature

- 40℃～ + 55℃.

Weight

≤48kg (whole machine).
