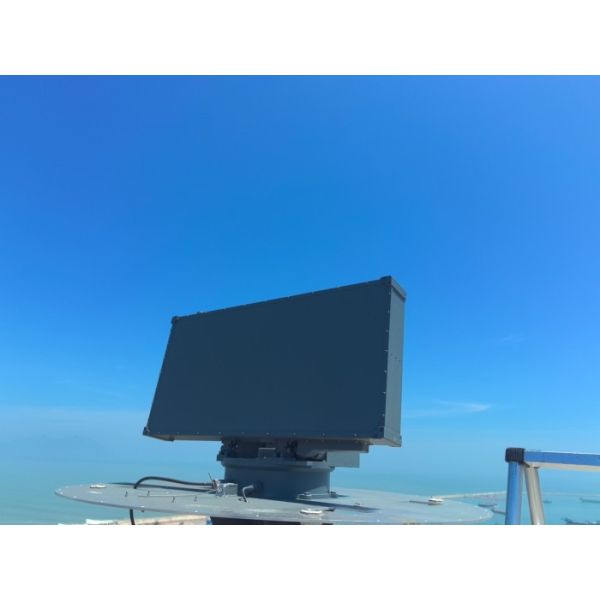

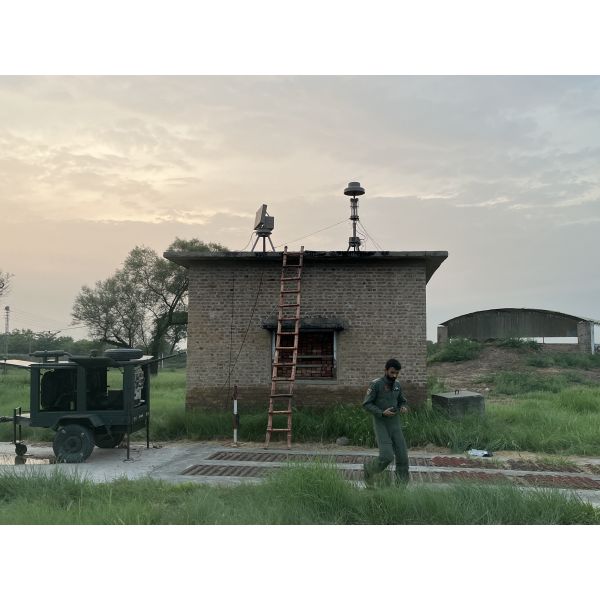

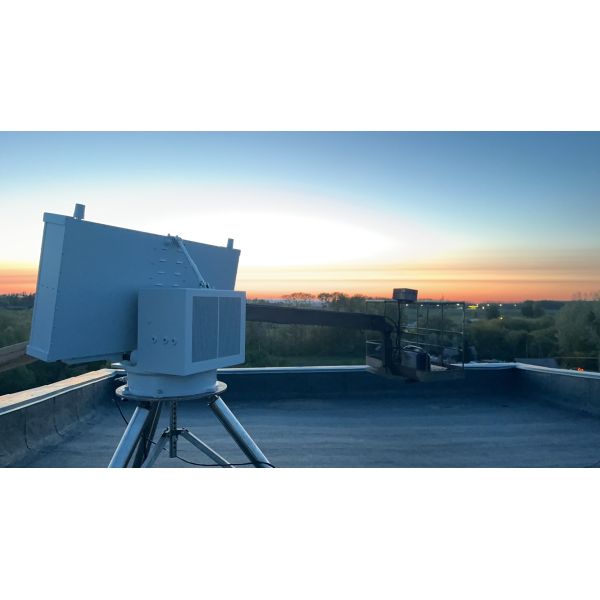

All-weather High Anti-jamming Mobile 3D Air Surveillance Detection and Tracking Radar for Anti-drone Operations
All-weather High Anti-jamming Mobile 3D Air Surveillance Detection and Tracking Radar for Anti-drone Operations
All-weather High Anti-jamming Mobile 3D Air Surveillance Detection and Tracking Radar for Anti-drone Operations
All-weather High Anti-jamming Mobile 3D Air Surveillance Detection and Tracking Radar for Anti-drone Operations
All-weather High Anti-jamming Mobile 3D Air Surveillance Detection and Tracking Radar for Anti-drone Operations
All-weather High Anti-jamming Mobile 3D Air Surveillance Detection and Tracking Radar for Anti-drone Operations
Specifications
Brand Name :
Lei Kan
Model Number :
LKYF-R02A
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Intelligent Anti-jamming Mechanism :
Effectively Coping with Active/Passive Interference
Dynamic platform adaptation :
Supports on-the-go work and automatic calibration, suitable for scenarios like vehicle-mounted applications
Detection Range :
(Mavic 2 / Phantom 4) ≥ 2.5 km / ≥ 3 km
Electromagnetic Silence Control :
Supports sector silence settings
Description

Ⅰ. Product Overview

The Low altitude defense radar tracking system is a three-coordinate radar system engineered for low-altitude defense, specifically designed to detect and track low-flying aerial vehicles in complex environments. Utilizing a Pulse-Doppler mechanism with azimuth mechanical scanning and elevation phase scanning, it offers excellent moving-target detection performance. The radar integrates seamlessly with EO/IR, jamming, and laser weapon systems, making it suitable for both fixed-site and mobile platform deployments.

All-weather High Anti-jamming Mobile 3D Air Surveillance Detection and Tracking Radar for Anti-drone Operations

Ⅱ. Product Core Capabilities

1. Comprehensive Situational Awareness: Supports recognition and tracking of various target types, suitable for complex airspace.

2. Intelligent Anti-Jamming Mechanism: Effectively counters active/passive interference, ensuring stable detection.

3. Dynamic Platform Compatibility: Supports on-the-move operation and automatic calibration, ideal for vehicle-mounted and other mobile applications.

4. Flexible Multi-Mode Switching: Supports operational modes like TWS and STT to adapt to diverse mission requirements.

5. Electromagnetic Silence Control:Allows sector-based silence settings, enhancing battlefield adaptability.

6. Health Self-Check System:Continuously monitors system status, improving maintenance efficiency.

All-weather High Anti-jamming Mobile 3D Air Surveillance Detection and Tracking Radar for Anti-drone Operations

All-weather High Anti-jamming Mobile 3D Air Surveillance Detection and Tracking Radar for Anti-drone Operations

Ⅲ. Product Technical Specifications

Item

Specification

Frequency Band

X-Band (9 ~ 10.2 GHz)

Detection Range (Mavic 2 / Phantom 4 Equivalent)

≥ 2.5 km / ≥ 3 km

Angle/Range Accuracy

≤ 0.6° / ≤ 10 m

Speed Measurement Range

1 ~ 100 m/s

Elevation Coverage

0° ~ 40°

Blind Zone

≤ 150 m

Overall Dimensions (L x W x H)

≤ 885 x 330 x 570 mm

Weight

≤ 35 kg

Power Consumption

≤ 220 W

Ingress Protection Rating

IP65

Operating Temperature

-40℃ ~ +65℃

All-weather High Anti-jamming Mobile 3D Air Surveillance Detection and Tracking Radar for Anti-drone Operations







Ⅳ. Company Presentation

All-weather High Anti-jamming Mobile 3D Air Surveillance Detection and Tracking Radar for Anti-drone Operations





Ⅴ. Service Support

All-weather High Anti-jamming Mobile 3D Air Surveillance Detection and Tracking Radar for Anti-drone Operations
