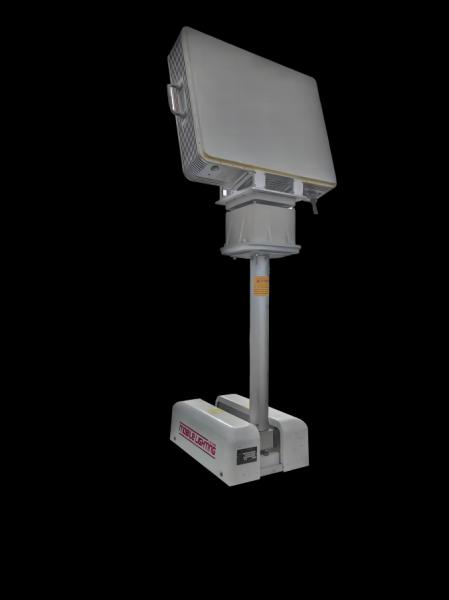

5km Ku-band One-dimensional AESA Phased Array Radar Simultaneously processing multiple batches
5km Ku-band One-dimensional AESA Phased Array Radar Simultaneously processing multiple batches
Specifications
Brand Name :
Lei Kan
Model Number :
LKXR-KD107
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
High reliability all solid state :
AESA technology
Band :
Ku Band
Detection Range :
5km
Track it at the same time :
≥100 batches
Description

Ⅰ. Overview


The one-dimensional AESA phased array with Ku-band and azimuth machine scanning system can realize three-dimensional airspace detection of 360° azimuth and 0°-45° pitch, and can process more than 100 batches of low-altitude targets at the same time.

Ⅱ. Highlights


1. AESA solid-state architecture

2. 5 km detection on 0.01 m² drones

3. 45° elevation scan adapts to rugged terrain

3. 27 kg single unit, rapid set-up


Ⅲ. Specifications


Parameter

Value

Radar type

Elevation AESA + Azimuth mechanical

Band

Ku

Coverage

Az 360°
El 0-45°

Scan rate

60°/s

Range (Pd=0.8)

5 km (0.01 m²)

Blind range

≤200 m

Range res./acc.

10 m / ≤4 m

Az accuracy

≤0.5°

El accuracy

≤0.5°

Vel. accuracy

≤1 m/s

Radial velocity

0.8–40 m/s

Max tracks

≥100

TX power

160 W

Size/Weight

590×475×126 mm / 27 kg

Ⅳ. Features


1. High reliability solid-state modules

2. Advanced clutter suppression for urban use

3. Fast elevation scan for high data rate
