Specifications
Brand Name :
CHONGYANG
Model Number :
CY-RO-3000L/H
Certification :
ISO ,CE
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10 Sets/Month
Delivery Time :
35 days after receiving the deposit
Packaging Details :
Export Standard and Wood Package
Capacity :
250L/H–50000L/H
Conductivity :
≤1.3 μS/cm
TOC :
≤500 ppb
Microbial Limit :
≤100 CFU/ml
Recovery Rate :
≥97%
RO Configuration :
Double Pass RO
EDI Module :
High Temperature, Normal Temperature type
RO Membrane :
4040 / 8040
RO Housing :
SS304 / SS316L
System Material :
SS304 / SS316L
Piping Material :
SS316L Electropolished
Surface Finish :
Ra ≤0.6 μm
Connection :
Clamp / Welding
Documentation :
FAT / SAT / IQ / OQ / PQ
Operation Mode :
Automatic / Manual
Description

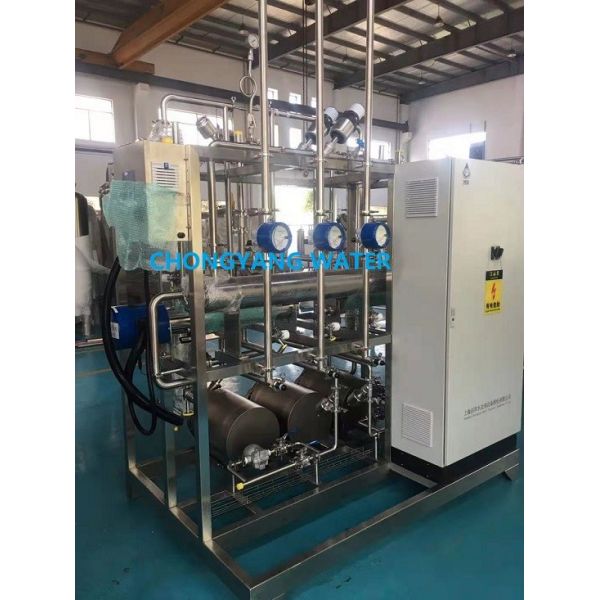

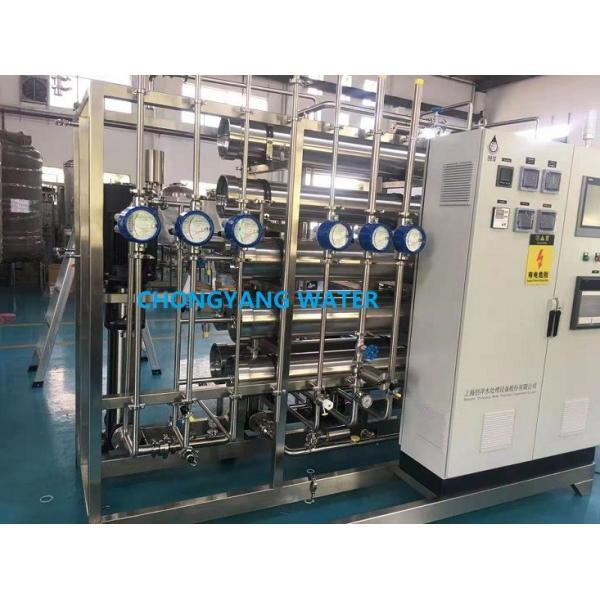

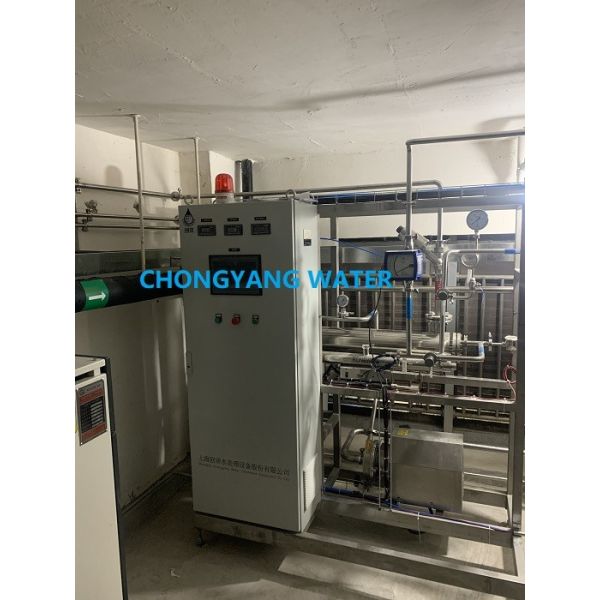

GMP Pharma Purified Water System With Double Pass RO Technology

A GMP pharma purified water system with double pass RO technology is designed to produce high-purity process water for clean utility applications. The system is widely used in biotechnology, healthcare, laboratory, cosmetics, and high-standard manufacturing industries where stable water quality and hygienic design are essential.

This purified water generation system combines pretreatment, double pass reverse osmosis, UV sterilization, EDI polishing, and sanitary distribution technology to ensure reliable water quality and continuous operation.

What Is a GMP Pharma Purified Water System?

A GMP pharma purified water system is an advanced water purification solution engineered for industries requiring stable, low-conductivity, low-TOC, and microbiologically controlled water quality.

Compared with conventional single-stage reverse osmosis systems, double pass RO technology significantly improves salt rejection, conductivity reduction, and overall water purity.

  • Pretreatment system
  • Double pass reverse osmosis system
  • EDI polishing unit
  • UV sterilization module
  • Ozone sanitization system
  • Sanitary storage tank
  • Clean utility distribution loop
  • Online monitoring instruments

Technical Specifications

The following table shows typical purified water quality requirements and engineering design references for clean utility water systems.

Parameter China GMP Purified Water Standard USP Purified Water Standard EP Purified Water Standard WHO Water Standard
Conductivity 25°C ≤ 1.3 μS/cm ≤ 1.3 μS/cm ≤ 4.3 μS/cm ≤ 1.3 μS/cm
TOC ≤ 500 ppb ≤ 500 ppb ≤ 500 ppb ≤ 500 ppb
Microbial Limit ≤ 100 CFU/ml ≤ 100 CFU/ml ≤ 100 CFU/ml ≤ 100 CFU/ml
Endotoxin Not Specified Not Specified Not Specified Not Specified
pH Value 5.0 – 7.0 Not Specified 5.0 – 7.0 5.0 – 7.0
System Material SS316L SS316L SS316L SS316L
Surface Finish Ra ≤ 0.6 μm Ra ≤ 0.6 μm Ra ≤ 0.6 μm Ra ≤ 0.6 μm
Sanitization Method Ozone / Hot Water Ozone / Hot Water Ozone / Hot Water Ozone / Hot Water

Features & Advantages

Double Pass RO Technology

Improves conductivity control and overall purified water quality.

GMP Hygienic Design

Uses sanitary engineering principles for clean utility environments.

Stable Water Quality

RO, EDI, and UV technologies support continuous stable operation.

PLC Automation

Supports automatic operation, alarm protection, monitoring, and data recording.

Low Conductivity

Reduces dissolved salts, organic contaminants, and conductivity levels.

Sanitization Capability

Optional ozone, hot water, and pasteurization sanitization systems.

Modular Skid Design

Easy for transportation, installation, operation, and future expansion.

Validation Support

Documentation support including FAT, SAT, IQ, OQ, and PQ.

Application Industries

Biotechnology Industry

Used for fermentation systems, biological processing, and clean utility water generation.

Healthcare Industry

Suitable for equipment cleaning, sterilization centers, and sanitary utility applications.

Laboratory & Research Centers

Provides stable purified water for analytical testing and research environments.

Cosmetics Industry

Used for creams, lotions, skincare products, and hygienic process water preparation.

Production Process

The production process can be customized according to raw water quality, required capacity, and final water quality targets.

Raw Water
→

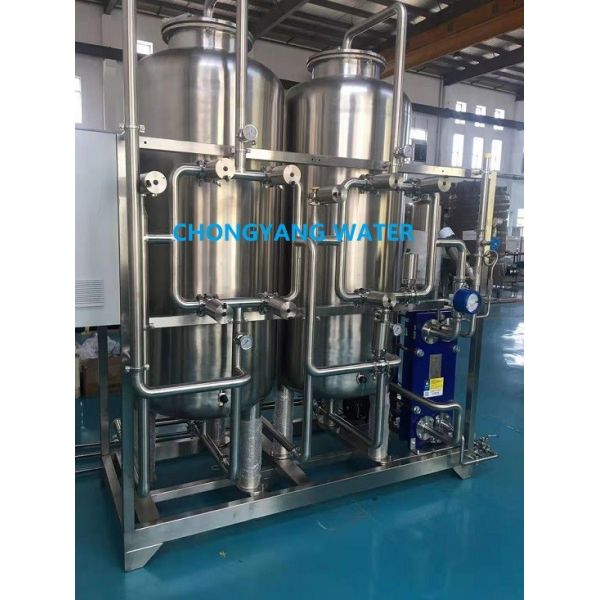

Sand Filter
→
Carbon Filter
→
Softener
→
Security Filter
→
First Pass RO
→
Intermediate Tank
→
Second Pass RO
→
EDI Module
→
UV Sterilizer
→
Sanitary Tank
→
Distribution Loop

Optional Configurations

  • EDI Polishing Unit
  • Ozone Sanitization System
  • Hot Water Sanitization
  • Pasteurization System
  • Online TOC Monitoring
  • Conductivity Monitoring
  • Automatic CIP System
  • SS316L Electropolished Piping
  • Heat Exchanger
  • Remote Monitoring System
  • Automatic Control Cabinet
  • Clean Utility Distribution Loop

Why Choose CHONGYANG WATER

CHONGYANG WATER is a professional manufacturer specializing in purified water generation systems, RO EDI water treatment equipment, and clean utility engineering solutions.

  • Professional water engineering team
  • GMP hygienic engineering design
  • Double pass RO technology expertise
  • Customized turnkey solutions
  • FAT / SAT support
  • Installation and commissioning service
  • Technical training and after-sales support

Request a Customized Solution

Looking for a reliable GMP pharma purified water system manufacturer?

CHONGYANG WATER provides customized double pass RO purified water generation systems for biotechnology, healthcare, laboratory, cosmetics, and industrial clean utility applications.
