Stainless Steel Mobile Lifting Feeder For Material Conveying

Description:

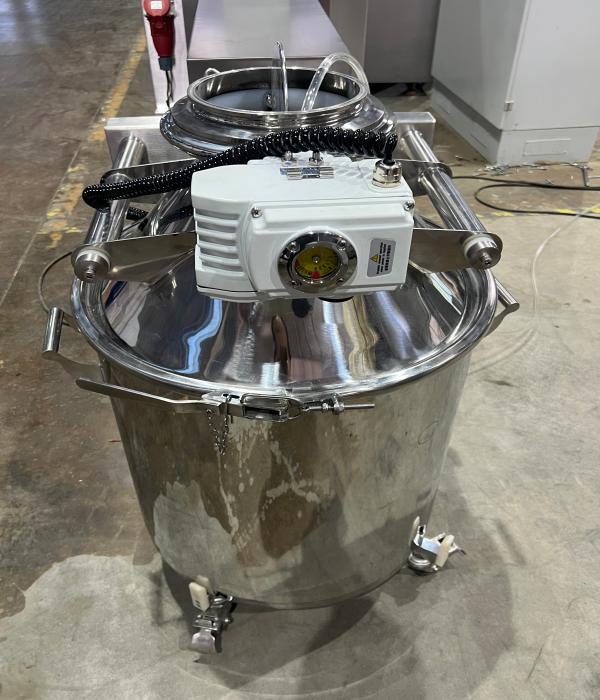

The mobile lifting and feeding machine uses a motor-driven lifting mechanism as its core power source, and the entire machine is equipped with omnidirectional casters for flexible workstation transfer. During operation, the material hopper containing powder or granular materials is first sealed and locked to the cone hopper. The electrical control system is then activated, and the cantilever lifts the hopper smoothly along a single-column guide rail to the set height. Subsequently, the tilting mechanism rotates the hopper 180°, aligning the discharge port downwards with the inlet of downstream equipment, allowing the material to be conveyed by its own weight.

The equipment employs a gravity-feed closed conveying method. After the butterfly valve is opened, the material flows into the tablet press, wet granulation machine, or mixer within the closed channel, eliminating dust emissions and avoiding material contamination and loss caused by manual feeding. After feeding is completed, the butterfly valve is closed, the hopper reverses and resets, and the entire machine can be moved to other processes for cyclical operation, meeting GMP clean production requirements and suitable for solid material transfer scenarios in the pharmaceutical and food industries.

Application:

This mobile lifting charging machine is widely used for sealed transfer and feeding of powder and granular materials in pharmaceutical, food and fine chemical industries. It can flexibly connect with rotary tablet presses, wet granulators, mixers and other processing equipment to replace manual feeding, realize dust-free charging, reduce dust pollution, material loss and cross-contamination, meet the production specifications of GMP clean workshops, and is suitable for material transportation between multiple stations in solid preparation production lines.

Specification:

Feature Advantage:

1. Equipped with casters for easy movement between different workshop stations for multi-equipment feeding.
2. Hermetic connection between bin and hopper, gravity discharging to avoid dust leakage, material waste and cross-contamination.
3. Electrically controlled vertical lifting and 180° bin tilting, adjustable height to perfectly match tablet presses, granulators and mixers.

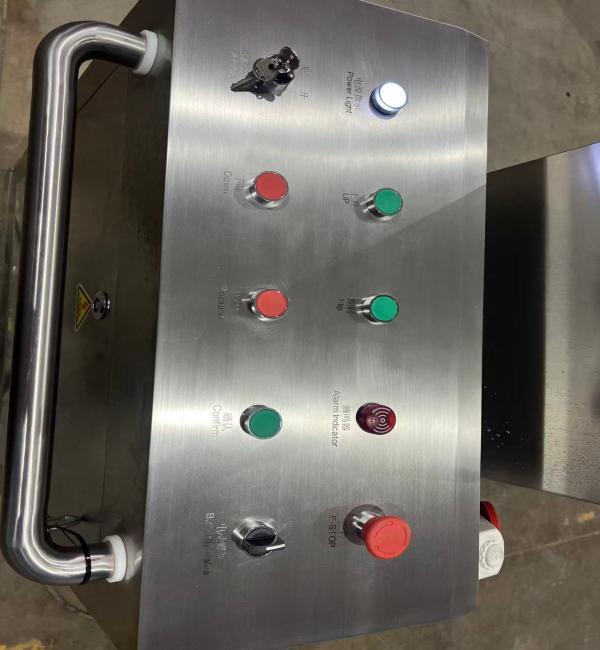

4. Independent control cabinet with emergency stop button, smooth running, greatly reduce labor intensity of manual feeding.

FAQ:

Q1: What types of pharmaceutical equipment do you manufacture?

We primarily manufacture a series of equipment for crushing, mixing, granulation, drying, coating, and cleaning, and provide complete production line solutions for industries such as health products, food, new energy, and chemicals.

Q2: Do you offer customized solutions?

Absolutely. We can customize equipment dimensions, capacity, control systems, material contact parts, feeding/discharging methods, and automation levels based on your specific production requirements.

Q3: Can your equipment comply with GMP requirements?

Yes. Our equipment is designed and manufactured in accordance with GMP standards. We use high-quality stainless steel materials (SS304 or SS316L), sanitary welding techniques, and easy-to-clean structures to ensure compliance with pharmaceutical production requirements.

Q4: What industries can use your equipment?

· Pharmaceutical manufacturing

· Nutraceutical production

· Food processing

· Chemical industries

· Biotechnology applications

Q5: Do you provide installation and commissioning services?

Yes. We offer installation guidance, commissioning support, operator training, and technical consultation. Remote support and on-site services are available depending on project requirements.

Q6: How do I choose the right machine model?
Our engineering team can recommend the most suitable model based on:
· Product characteristics
· Batch size
· Production capacity
· Facility layout
· Automation requirements
· Regulatory standards
Simply contact us with your requirements for a free consultation.

Q7: What is the lead time for production?

The specific delivery time depends on the machine type and configuration. The exact delivery cycle will be confirmed during the quotation process.

Q8: How do you ensure product quality?

Each machine undergoes the following processes:

Raw material inspection

Precision machining

Functional testing

Quality inspection and Factory Acceptance Testing (FAT)

Only qualified equipment is delivered to the customer.
