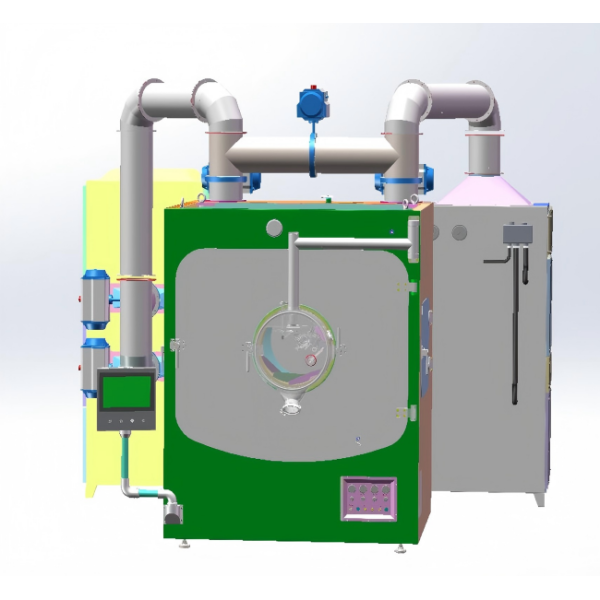

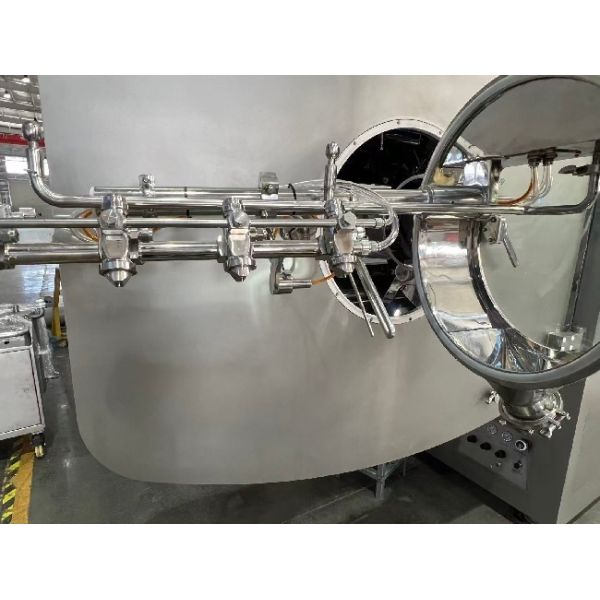

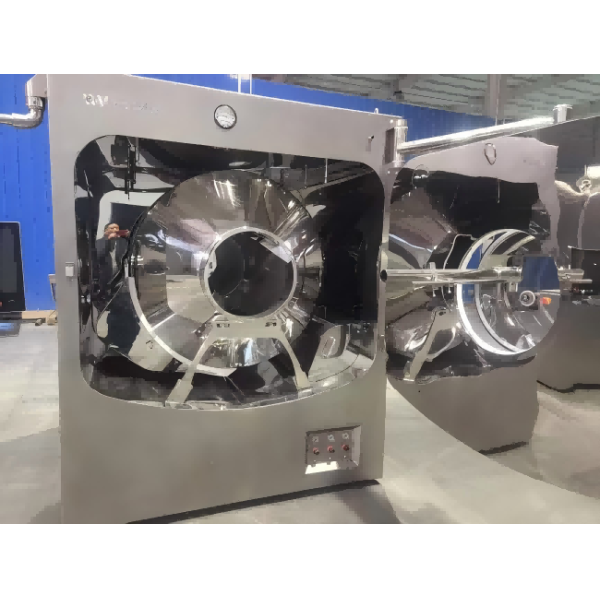

High Efficiency Automatic Tablet Film Coating Machine With Interchangeable Pan Function

Description:

Under the rotation of the coating roller, the core moves continuously inside the roller. A peristaltic pump delivers the coating medium to the spray gun and sprays it onto the surface of the core. Under negative pressure, the air intake unit supplies clean hot air into the wafer bed according to the set program and process parameters to dry the core. The hot air is discharged through the exhaust air unit through the bottom of the core layer, so that the coating medium sprayed on the surface of the core can quickly form a strong, dense, smooth, and rounded surface film, completing the coating process.

The GBX series coating machine is a high-efficiency piece of equipment for the large-scale coating of tablets and pills in the pharmaceutical industry. It uses a rotating drum to evenly tumble the material, and with a precise temperature-controlled hot air system and atomizing spray device, the coating liquid is evenly sprayed onto the surface of the material and quickly dried into a film. It can achieve multiple functions such as moisture-proof, taste-masking, enteric coating, and sustained release coating. The entire process is sealed and dust-free, and the operation is intelligent and controllable.

Specification:

Application:

This new automatic coating machine is specifically designed for coating processes of various tablets, pills, and granules. While improving production efficiency, this equipment also ensures the stability of the product materials. Reliable manufacturing processes, interchangeable rollers, and online cleaning functions all meet GMP industrial and operability requirements. Various unique functional combinations shorten batch changeover times and can meet different process operation requirements, making it the preferred equipment for film coating, sugar coating, and pharmaceutical coating applications.

Feature Advantage:

1. Optimized roller guide structure ensures smooth material tumbling without dead angles, resulting in uniform coating and low auxiliary material loss.

2. All stainless steel contact parts and a sealed coating environment effectively prevent dust spillage and cross-contamination.

3. PLC + touch screen control system allows real-time adjustment and recording of parameters such as temperature, rotation speed, and spray volume, providing process traceability and convenient, stable operation.

4. Equipped with comprehensive safety protection devices, the hot air and spray systems are stable and reliable, adaptable to different coating formulations and process requirements.
