Specifications
Condition :
Brand New
Max Loading Volume :
2400L
Rotary Motor Power :
4-15kw
Warranty :
12 Months
Item Name :
Fully Automatic Lifting Mixer
Brand Name :
Hongwang
Place of Origin :
China
MOQ :
1set
Payment Terms :
T/T,Western Union
Packaging Details :
wooden case
Maximum Loading Weight :
1500kg
Lifting Motor Power  :
1.5-4kw
Hopper Volume :
400-3000L
Model Number :
ZTH-400/600/800/3000
Certification :
ISO9001
Price :
Negotiable
Supply Ability :
10 Sets per month
Delivery Time :
20-30 work days
Description

Stainless Steel Automatic Lifting Hopper Mixer For Efficient Mixing

Description:

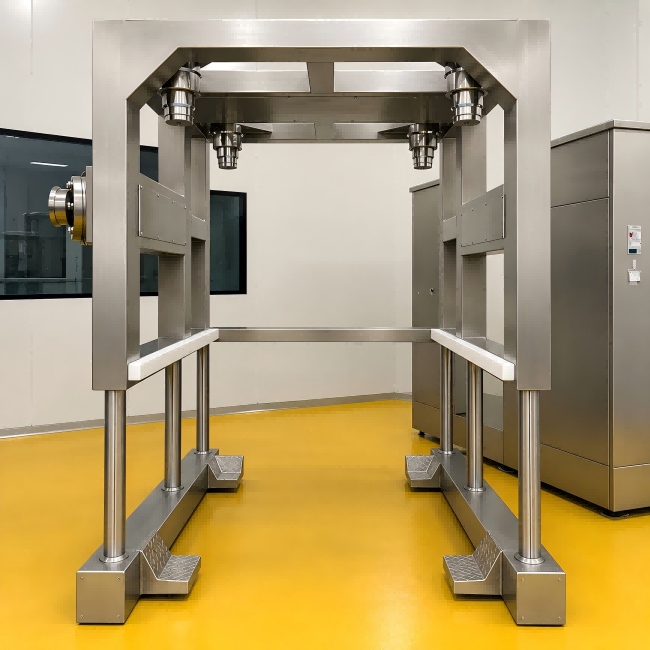

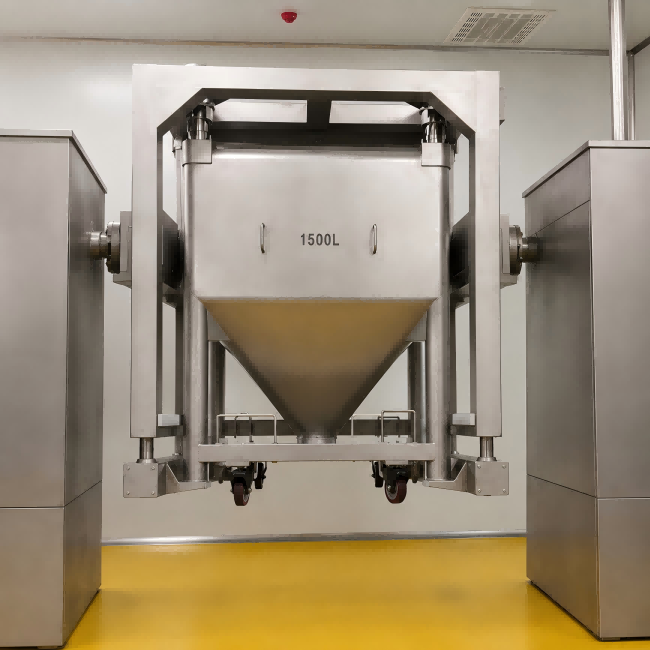

The ZTH automatic lifting hopper mixer adopts a hopper-type mixing process: the hopper containing the material is lifted and locked to the main unit, and the hopper is driven by the drive mechanism to make a three-dimensional rotational motion, so that the material undergoes strong convection, shearing and diffusion motion in the hopper, achieving efficient and uniform mixing of different powder/particle components.
The automatic lifting hopper mixer is a high-efficiency mixing equipment designed for the pharmaceutical, chemical, and food industries. It drives the material to undergo convection, shearing, and diffusion movements through the three-dimensional rotation of the hopper, achieving highly uniform mixing of powders and granules. It supports interchangeability of hoppers of different specifications, can be used for multiple purposes, is fully enclosed and dust-free, has automated operation, is easy to clean and maintain, and meets the requirements of mass production and clean production.

Specification:

Model

ZTH-400

ZTH-600

ZTH-800

ZTH-1000

ZTH-1200

ZTH-1500

ZTH-2000

ZTH-3000

Hopper volume(L)

400

600

800

1000

1200

1500

2000

3000

Maximum loading volume(L)

320

480

640

800

960

1200

1600

2400

Maximum loading weight(kg)

200

300

400

500

600

750

1000

1500

spindle speed(rpm)

3-20

3-20

3-20

3-15

3-15

3-15

3-15

3-12

Rotary motor power(kw)

4.0

4.0

4.0

5.5

5.5

7.5

11.0

15

Lifting motor power (kw)

1.5

1.5

1.5

2.2

3.0

4

4

4

Machine weight(kg)

1800

2500

2800

3000

3200

3600

4200

4800

SS Pharmaceutical Mixing Equipment 3000L Automatic Lifting Hopper Mixture Machine

SS Pharmaceutical Mixing Equipment 3000L Automatic Lifting Hopper Mixture Machine

Application:

This machine can automatically complete all actions such as lifting, clamping, mixing, and lowering. Equipped with one automatic lifting hopper mixer and multiple mixing hoppers of different sizes, it can meet the mixing requirements of large batches and multiple varieties, making it an ideal equipment for total mixing in pharmaceutical plants. It is also widely used in the pharmaceutical, chemical, and food industries.

Feature Advantage:

1. Interchangeable hoppers of different sizes adapt to varying batch production needs, reducing cross-contamination and improving equipment utilization.

2. Fully enclosed design prevents dust spillage, meeting pharmaceutical GMP cleanroom standards and avoiding material contamination and cross-contamination.

3. Three-dimensional motion mixing ensures no dead corners or stratification of materials, achieving a mixing uniformity of over 99% and good batch-to-batch consistency.

4. Separable and detachable hoppers eliminate cleaning dead corners, facilitating cleaning and disinfection and meeting the cleaning validation requirements for multi-product production.

5. PLC + touch screen control automatically completes processes such as hopper lifting, locking, mixing, and lowering, making operation convenient and reducing manual labor intensity.
