Sanitary Standard Butterfly Valves For Material Flow Control
Sanitary Standard Butterfly Valves For Material Flow Control
Specifications
Payment Terms :
Western Union,T/T
Item Name :
Standard Butterfly Valve
Price :
Negotiable
Packaging Details :
wooden case
Structural Dimensions :
150mmx230mmx55mm
MOQ :
1set
Place of Origin :
China
Condition :
Brand New
Brand Name :
Hongwang
Temperature Range :
-20~120℃
Delivery Time :
7- 10 work days
Steam Pressure :
1.6MPa
Warranty :
12 Months
Material :
Stainless Steel
Certification :
ISO9001
Model Number :
ADF150WCA/300WCA
Open Differential Pressure :
≥0.02MPa
Description

Sanitary Standard Butterfly Valves For Material Flow Control

Description:

The DF butterfly valve is a sanitary flow control device widely used in the pharmaceutical, food, chemical, and powder handling industries. It is primarily used for material shut-off, regulation, and control in hoppers, storage tanks, conveying pipelines, and batching systems. The valve body is made of high-quality 304 or 316L stainless steel, with precision-polished inner and outer surfaces, exhibiting excellent corrosion resistance, easy cleaning, and hygienic performance, meeting GMP and food-grade production requirements.


This butterfly valve achieves rapid opening and closing through a rotating valve plate. It features a compact structure, flexible operation, and excellent sealing performance, effectively preventing dust leakage and material residue. The product can be configured with manual, electric, or pneumatic actuators according to actual working conditions to achieve automated control, improving production efficiency and operational stability.


The DF butterfly valve is particularly suitable for conveying and batching powders, granules, and other bulk materials. It can be used in conjunction with vacuum feeders, mixers, silos, reactors, and packaging equipment, making it an indispensable key control component in modern production lines.


Specification:

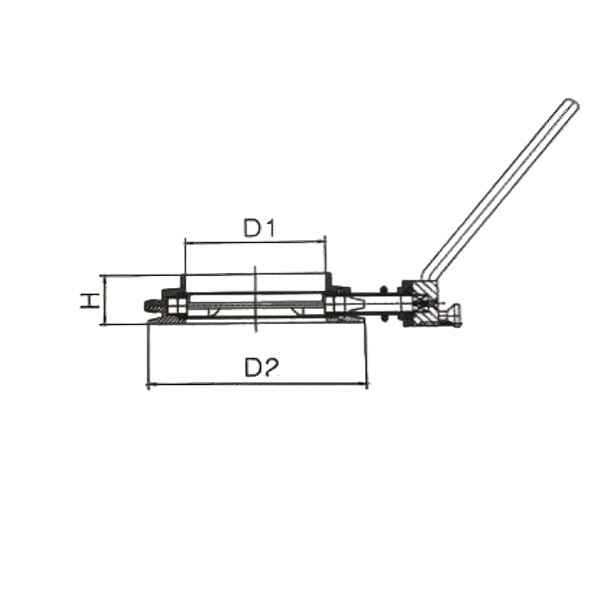

Model

Main structural dimensions

ΦD1

φD2

H

ADF150WCA

150

230

55

ADF200WCA

200

280

55

ADF250WCA

250

330

60

ADF300WCA

300

380

60

Sanitary Standard Butterfly Valves For Material Flow Control


Feature Advantage:

1. Excellent sealing performance, effectively preventing material leakage.


2. Quick on/off, simple operation, and low maintenance cost.


3. Manual, pneumatic, and electric drive options available.


4. Suitable for powder, granular, and bulk material conveying systems.
