Movable Circular Storage And Transfer Hoppers For Material Conveying
Movable Circular Storage And Transfer Hoppers For Material Conveying
Specifications
Temperature Range :
-30~120℃
Warranty :
12 Months
Brand Name :
Hongwang
Packaging Details :
wooden case
MOQ :
1set
Delivery Time :
7- 10 work days
Price :
Negotiable
Pressure Resistance Of Silos :
-0.1~+0.1MPa
Volume :
150-1000L
Place of Origin :
China
Supply Ability :
20 Sets per month
Cleaning Water Pressure :
0.2-0.3MPa
Certification :
ISO9001
Item Name :
Circular Turnover Hopper
Condition :
Brand New
Material :
Stainless Steel
Model Number :
LDC150/400/600/1000
Payment Terms :
Western Union,T/T
Description

Movable Circular Storage And Transfer Hoppers For Material Conveying

Description:

Stainless Steel Mobile Circular Transfer Hopper is custom-manufactured for pharmaceutical, food and chemical solid preparation production lines, made entirely of high-quality 304 or 316L stainless steel with mirror polished inner and outer surfaces to meet GMP production standards. The upper part adopts cylindrical round structure and the bottom is designed with conical hopper, which ensures smooth blanking without material bridging and residue accumulation, greatly improving raw material transfer efficiency.


Equipped with sturdy stainless steel support frame and heavy-duty universal casters including brake wheels, the circular turnover bin realizes flexible free movement between mixing, granulation, coating and filling equipment on the workshop floor, realizing closed-loop turnover of granular and powdery raw materials to avoid cross-contamination. We support customized volume ranging from 50L to 2000L, optional quick-clamp inlet and outlet connections to match different processing machines. Widely used in tablet, capsule, granule production as intermediate material storage and transfer container, durable structure, easy to clean and sterilize, it is an essential auxiliary equipment for modern clean production workshops.

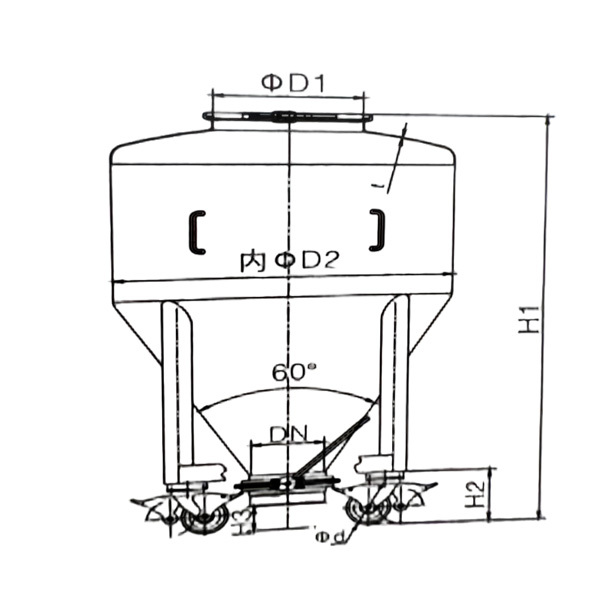

Specification:


Model


Volume
(L)

Main structural dimensions

H1

H2

H3

φD1

φD2

φd

DN

LDC150

150

992

140

167

400

750

100

200

LDC200

200

1104

140

167

400

750

100

200

LDC300

300

1106

185

87

400

900

125

200

LDC400

400

1261

185

87

400

900

125

200

LDC500

500

1416

185

87

400

900

125

200

LDC600

600

1468

185

231

500

1200

125

250

LDC800

800

1654

185

231

500

1200

125

250

LDC1000

1000

1654

185

81

500

1200

125

250
