Portable Mobile Mixing Hopper Casters Pharmaceutical Parts
Portable Mobile Mixing Hopper Casters Pharmaceutical Parts
Specifications
MOQ :
1set
Volume :
2-100L
Condition :
Brand New
Cylinder Thickness :
1.5-2.5mm
Model Number :
LDS2/15/30/75/100
Min Structural Dimension :
151mmx150mm
Brand Name :
Hongwang
Certification :
ISO9001
Butterfly Valve Bore :
DN80/100/150
Supply Ability :
20 Sets per month
Payment Terms :
T/T,Western Union
Packaging Details :
wooden case
Warranty :
12 Months
Material :
Stainless Steel
Place of Origin :
China
Item Name :
Mobile Mixing Hopper
Price :
Negotiable
Delivery Time :
7- 10 work days
Description

Portable Mobile Mixing Hopper With Casters

Description:

This dynamic mixing hopper is a specialized, reusable mixing container for pharmaceutical solid dosage forms. It is crafted from high-quality stainless steel and offers standard capacities from 200L to 1000L. The overall square shape features a 60° conical bottom, with a mirror-polished inner wall eliminating unsanitary corners and ensuring smooth material flow without powder accumulation. Equipped with braked, silent swivel casters at the bottom, it allows for flexible transport within mixing, batching, tableting, and filling workshops. Integrating closed mixing, material storage, and workshop turnover functions, it eliminates repeated material transfer steps, reducing the risk of cross-contamination of pharmaceutical from the source.

The equipment has a pre-installed standardized clamping flange for precise clamping and locking with a column-mounted mixer, achieving fully enclosed powder mixing operations with no dust leakage. The conical bottom is equipped with a standard DN discharge interface, compatible with vacuum feeding and dust removal systems, and suitable for automated production lines. The product strictly adheres to GMP cleanroom standards and can be used not only for the production of pharmaceutical tablets, capsules, and granules, but also for the storage and transportation of health foods, veterinary drugs, and fine chemical powders. Customized wall thickness, volume, and interface specifications are supported.

Specification:

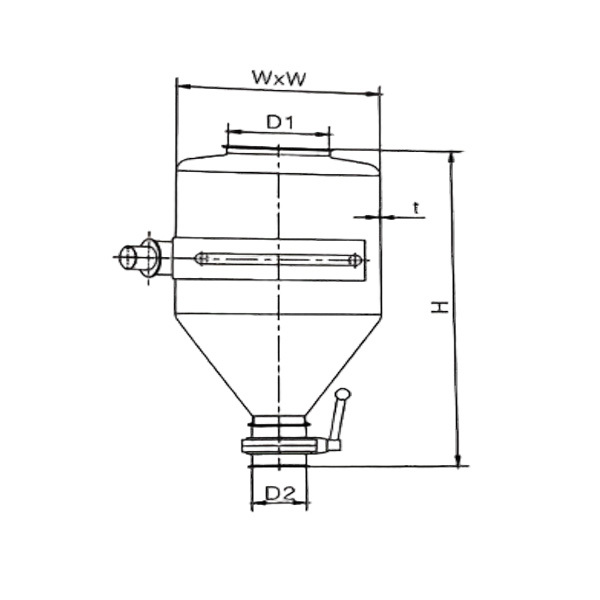

Model

Volume
(L)

Main structural dimensions

H

φD1

φD2

 W

LDS2

2

151

101.6

38

150

LDS5

5

353

127

50

190

LDS10

10

384

127

50

260

LDS15

15

465

127

50

260

LDS20

20

456

200

75

320

LDS25

25

506

200

75

320

LDS30

30

556

200

75

320

LDS35

35

606

200

75

320

LDS50

50

638

200

100

400

LDS75

75

783

200

100

400

LDS100

100

653

400

200

550
