GMP Clamp-type Mixing Hoppers Are Used For Mixing Solid Dosage Forms
GMP Clamp-type Mixing Hoppers Are Used For Mixing Solid Dosage Forms
Specifications
Certification :
ISO9001
Delivery Time :
7- 10 work days
Number Of Stacking Layers :
≤2
Supply Ability :
20 Sets per month
Condition :
Brand New
Price :
Negotiable
Payment Terms :
T/T,Western Union
Model Number :
LDY2000/3000
Packaging Details :
wooden case
Feed Cone Angle :
60°
Warranty :
12 Months
Item Name :
Clamp-type mixing hopper
Brand Name :
Hongwang
Discharge Port Diameter :
200-250mm
MOQ :
1set
Material :
Stainless Steel
Place of Origin :
China
Clamp Seal Width :
3mm
Description

GMP Clamp-type Mixing Hoppers Are Used For Mixing Solid Dosage Forms

Description:

The clamp-type column mixing hopper is a specialized turnover mixing tank for pharmaceutical solid dosage forms. It is made of high-quality stainless steel in one piece, featuring a square hopper and a 60° conical bottom structure. It can be paired with a column-type lifting mixer for clamp locking, achieving in-situ sealed mixing, transfer, and temporary storage. Specifications range from LDT200 to LDT3000L.


The hopper flange clamps and locks to the mixing unit, preventing dust leakage and ensuring fully sealed powder mixing, eliminating cross-contamination. It is suitable for mixing pharmaceutical granules and powders. The bottom is equipped with silent swivel casters with brakes, allowing direct transfer to batching and tableting processes after mixing, eliminating the need for intermediate powder transfer and feeding. The inner and outer surfaces are mirror-polished, and the 60° conical bottom angle eliminates dead corners and material accumulation, ensuring smooth discharge. The standard DN interface allows connection to dust collection and vacuum feeding equipment.

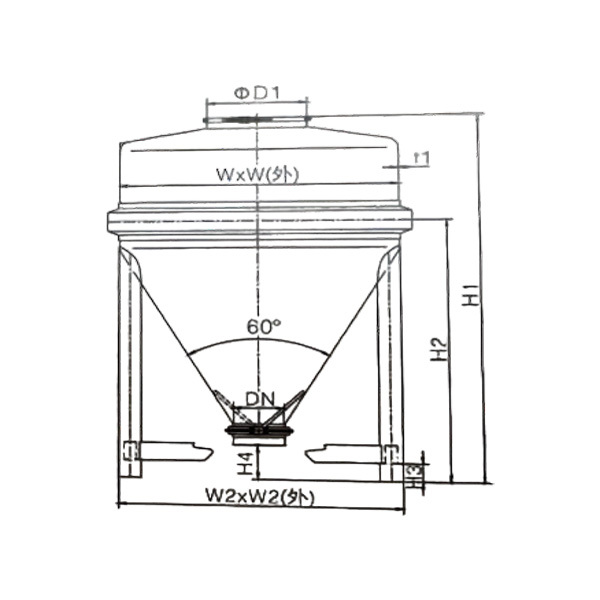

Specification:



Model



Volume
(L)

Main structural dimensions

H1

H2

H3

H4

φD1

W1

W2

LDY2000

2000

2046

1470

100

190

500

1400

1406


LDY3000

3000

2402

1470

100

140

500

1494

1500


GMP Clamp-type Mixing Hoppers Are Used For Mixing Solid Dosage Forms


Application:

It is mainly used for closed mixing of pharmaceutical solid dosage forms (tablets, capsules, granules), health food, veterinary drugs, and fine chemical powders, as well as for temporary storage of intermediate products and workshop turnover. It is equipped with a column-type hopper mixer to form a complete closed production system.
