LDT Series Mixing Hoppers Column Type Pharmaceutical Parts For Powder Mixing Transfer
LDT Series Mixing Hoppers Column Type Pharmaceutical Parts For Powder Mixing Transfer
Specifications
Pressure Resistance :
0.5MPa
Certification :
ISO9001
Place of Origin :
China
Condition :
Brand New
Payment Terms :
T/T,
Column Height from The Ground H3 :
100mm
Delivery Time :
7- 10 work days
Hook Alignment Gap :
＜2mm
Model Number :
LDT200/600/1000
Single Wheel Load :
≥250kg
Warranty :
12 Months
Brand Name :
Hongwang
Supply Ability :
20 Sets per month
MOQ :
1set
Material :
Stainless Steel
Price :
Negotiable
Item Name :
Column-type Mixing Hopper
Packaging Details :
wooden case
Description

LDT Series Column-type Mixing Hoppers Are Used For Efficient Powder Mixing And Transfer

Description:

The overall structure of this equipment consists of a hopper body, a conical discharge port, supporting columns, a sealed top cover, and a movable base. The hopper body is typically square or cylindrical with a conical bottom design to facilitate smooth material discharge and reduce residue. The column-type support structure is highly stable and has a high load-bearing capacity, making it compatible with equipment such as elevators, mixers, tablet presses, and capsule filling machines.

The column-type mixing hopper features a compact structure, convenient operation, easy cleaning, and compliance with GMP requirements. Its inner and outer surfaces are mirror-finished or brushed-polished, with a no-dead-angle design to ensure hygiene and safety. The equipment supports multiple customization options, allowing for different volumes, discharge port sizes, and movement methods to meet the high efficiency, automation, and cleanliness requirements of modern production lines.

Application:

This equipment is mainly used for the closed conveying, uniform mixing and transfer storage of powder, granules and other materials. When used in conjunction with a lifting hopper mixer, it can achieve 360° tumbling mixing, allowing the materials to be fully turned over in a closed environment, achieving a highly efficient and uniform mixing effect, while effectively avoiding dust spillage and cross-contamination.

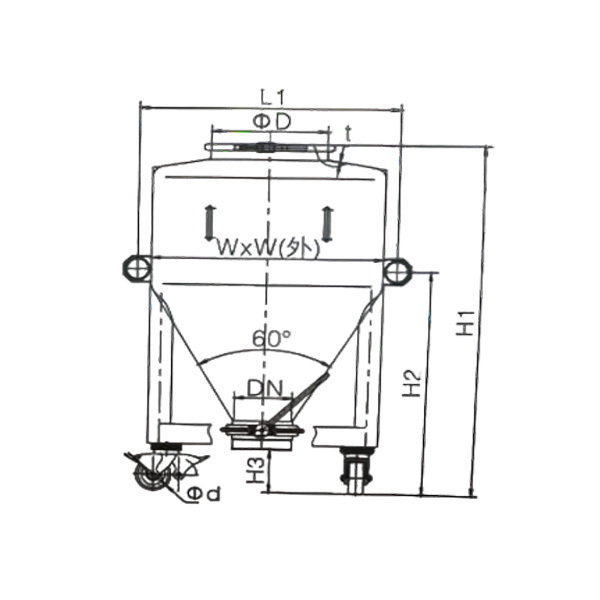

Specification:

Model


Volume
(L)

Main structural dimensions

H1

H2

H3

L1

φD

φd

W1

DN

LDT200

200

946

700

100

770

400

100

694

200

LDT300

300

1258

800

180

788

400

125

694

200

LDT400

400

1318

850

166

888

400

125

794

200

LDT600

600

1475

950

163

988

500

125

894

200

LDT800

800

1508

1000

141

1088

500

125

994

200

LDT1000

1000

1672

1050

125

1210

500

125

1094

250
