Electric Powder Butterfly Valve For Material Conveying And Feeding Systems
Electric Powder Butterfly Valve For Material Conveying And Feeding Systems
Specifications
Material :
Stainless steel
Connection method :
WCA
Gas source pressure :
0.4~0.6MPa
Brand Name :
Hongwang
Packaging Details :
wooden case
Item Name :
Electric split butterfly valve
Model Number :
QDF150/200/250
Protection level :
IP65
MOQ :
1set
Sealing material :
EPDM/PTFE
Warranty :
12 months
Condition :
Brand New
Certification :
ISO9001
Payment Terms :
T/T,
Delivery Time :
7- 10 work days
Place of Origin :
China
Price :
Negotiable
Description

Electric Powder Butterfly Valve For Material Conveying And Feeding Systems

Description:

The pneumatic/electric powder butterfly valve is a sanitary flow control device specifically designed for the conveying, batching, and diversion of powders, granules, and bulk materials. It is widely used in hopper, pipeline, and storage systems in the pharmaceutical, food, chemical, and fine chemical industries to achieve precise and efficient material control.


The valve body is made of high-quality stainless steel with smooth, polished inner and outer surfaces, meeting GMP and food-grade standards to ensure no material contamination and facilitating cleaning and maintenance. The valve plate can rotate quickly to open, close, or regulate the flow of materials, offering flexible operation and excellent sealing performance to effectively prevent dust leakage.This butterfly valve supports pneumatic or electric actuation and can be integrated with automated control systems for remote control and high-efficiency production. Its compact structure and easy installation make it an indispensable key control component in modern powder conveying production lines.

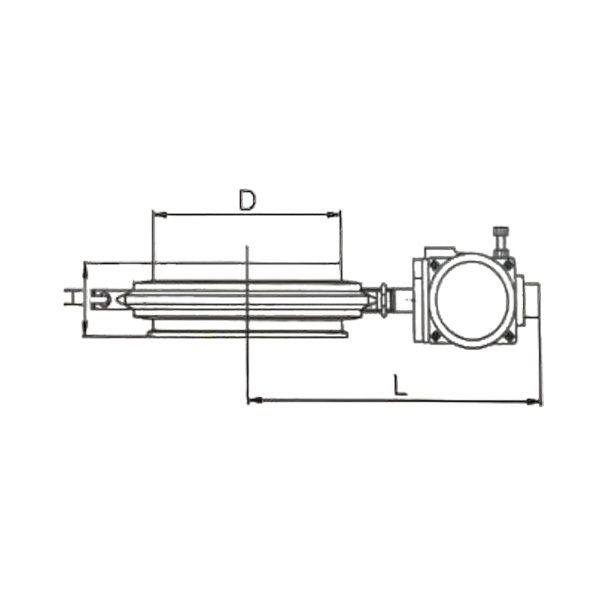

Specification:

Model

D

H

L

QDF150

150

90

280

QDF200

200

90

347

QDF250

250

90

388

Electric Powder Butterfly Valve For Material Conveying And Feeding Systems


Feature Advantage:

1. Pneumatic or electric operation, supporting automated control.


2. Rapid valve plate rotation, excellent sealing performance.


3. Efficient control of the flow rate of powders, granules, and bulk materials.


4. Compact structure, easy installation, low maintenance cost, and prevents dust leakage.
