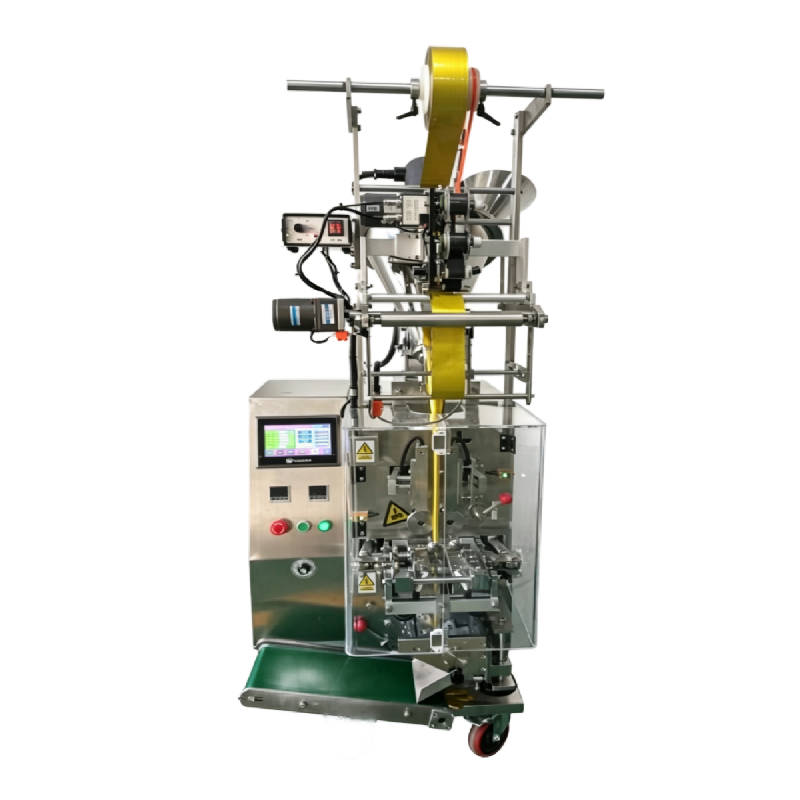

SUS304 Powder Sachet Packaging Machine 3 4 Sided Sachet Filling And Sealing
SUS304 Powder Sachet Packaging Machine 3 4 Sided Sachet Filling And Sealing
Specifications
Customizationoptions :
Available based on product and packaging requirements
Powersupply :
220V/380V, 50Hz/60Hz
Model Number :
TW-160F
Sachet sealing type :
3-side sealing or 4-side sealing
Packaging Details :
Fumigation-free plywood
Maintenance :
Easy maintenance with modular design
Afrer sale service :
24hours in 7 days online support
Delivery Time :
20 business days
Features :
Powder sachet packing machine
Certification :
CE
Capacity :
30-50 sachet per minute
Payment Terms :
T/T
Sachet size range :
W: 10-100mm L: 30-150mm
Userinterface :
Touchscreen HMI
Place of Origin :
Shanghai,China
Optional :
LOT printer
Industry :
Pharmaceutical,food,nutrition
Brand Name :
TIWIN INDUSTRY
Material :
SUS304 stainless steel
Description
Powder Sachet Packing Machine

This machine is equipped with a powder screw dosing system and is designed to pack various powder products including milk powder, flour, coffee powder, protein powder, as well as medicinal and chemical powders.

Technical Specifications
Model TW-160F
Max. Film Width 200mm
Sealing Type 3 Side Sealing
Screw Dosing Range 0-0.5g, 0.5-2g, 3-10g, 10-20g, 20g-30g
Sealer Horizontal sealing: line or diamond pattern
Vertical sealer: line or diamond pattern
Cutting Type Rotary flat cutter or pneumatic flat cutter or zigzag cutter
Capacity 30-50 sachets/min
Suitable Sachet Size Range W: 10-100mm L: 30-150mm (adjustable on touch screen)
Total Power 1.8kw
Voltage 220V or 380V
Weight 230Kg
Machine Dimension 625x730x1,880mm
Film Information Max diameter of film roll D: ≤300mm
Inner diameter of film roll: 76mm
Film thickness: 70-90um (suggestion)
Photo sensor mark size: 5x8mm (suggestion)
Film material: Must be composite film, 2 layers or three layers, such as PET/PE, Paper/PE, PET/AL/PE, OPP/PE
Key Features
  • PLC and touch screen control for easy operation, sachet length can be set directly on screen
  • The frame, electric box and all parts that contact with materials are food grade SUS304 material (SUS316 stainless steel optional)
  • Sachet-making, dosing, filling, sealing, and cutting are performed automatically
  • Includes date coding ribbon printer for LOT information printing
  • Either under set length control or photo-electronic color tracing for fast control and film saving
  • Alarm function: Abnormal cursor detection, abnormal bag pulling signal, abnormal paper feeding signal
Frequently Asked Questions
What types of powders can this machine pack?
It can pack free-flowing and non-free-flowing powders such as coffee powder, milk powder, spices, flour, protein powder, and chemical powders.
What is the typical sachet size range?
The sachet size usually ranges from 10 mm to 100 mm in width, and 30 mm to 150 mm in length, depending on machine configuration.
What is the packing speed?
The speed typically ranges from 30 to 50 sachets per minute, depending on powder type, dosing system, and film material.
What kind of dosing system is used?
Includes auger filler system, which are ideal for accurate powder dosing, especially for fine and non-free-flowing powders.
Is the machine easy to operate?
Yes. Most models use a PLC control system with a touchscreen interface, making it easy to set parameters such as weight, bag length, and sealing temperature.
Can the machine support different packaging materials?
Yes, it can handle laminated film materials such as PET/AL/PE, paper/PE, and other heat-sealable films.
Does it support automatic film correction?
Many models include photoelectric tracking and automatic film alignment to ensure accurate printing and cutting.
Is cleaning and maintenance difficult?
No. The machine is designed for easy disassembly of the hopper and auger, making cleaning and maintenance convenient, especially for food-grade applications.
