0.01Mpa Capsule Polisher 1500mm 1P 50Hz Capsule Polishing Machine
0.01Mpa Capsule Polisher 1500mm 1P 50Hz Capsule Polishing Machine
Specifications
Customizationoptions :
Available based on product and packaging requirements
Powersupply :
220V/380V, 50Hz/60Hz
Model Number :
MJP-S
Net weight :
75kg
Certification :
CE
Power :
0.2kw
Payment Terms :
T/T
Suitable for capsule size :
#00,#0,#1,#2,#3,#4
Userinterface :
Touchscreen HMI
Packaging Details :
Fumigation-free plywood
Maintenance :
Easy maintenance with modular design
Afrer sale service :
24hours in 7 days online support
Delivery Time :
20 business days
Compressed air :
0.3 m³/min -0.01Mpa
Place of Origin :
Shanghai,China
Dimension :
740x510x1500mm
Industry :
Pharmaceutical,food,nutrition
Brand Name :
TIWIN INDUSTRY
Max. capacity :
300,000 (#2)
Description

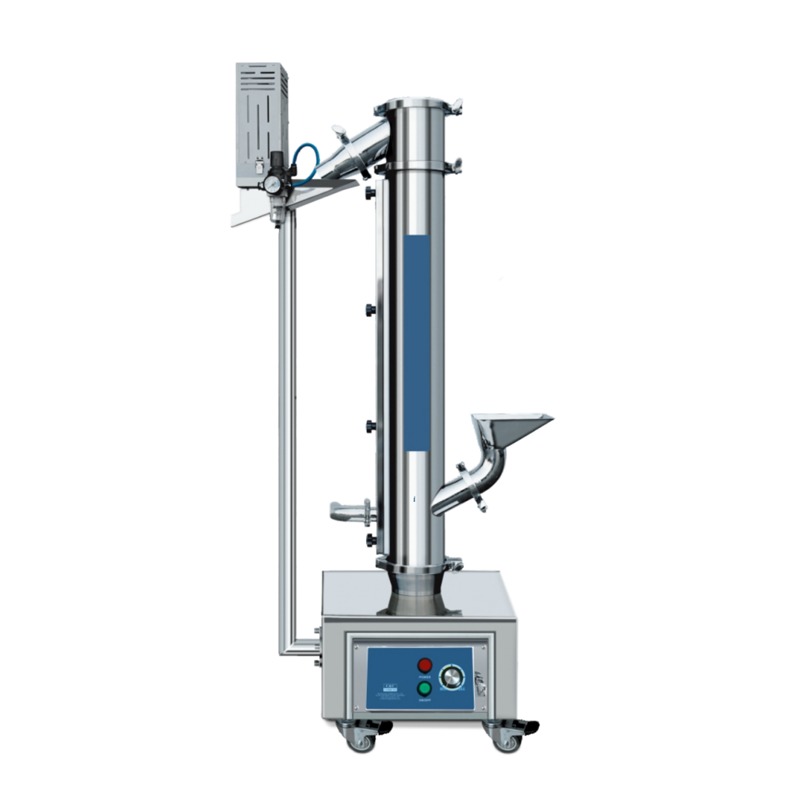

Vertical Capsule Polishing and Sorting Machine

The Vertical Capsule Polishing and Sorting Machine is a high-efficiency equipment designed for capsule surface polishing, dust removal, and defective capsule sorting in pharmaceutical production lines. It removes powder residues from capsules after filling, improves capsule appearance quality, and automatically separates unqualified capsules such as empty, broken, or lightweight capsules through an integrated sorting system.

Technical Specifications
Parameter Detail
Model MJP-S
Capsule Size #00, #0, #1, #2, #3, #4
Max. Capacity 300,000 (#2)
Feeding Height 730mm
Discharge Height 1,050mm
Voltage 220V/1P 50Hz
Power 0.2kw
Compressed Air 0.3 m³/min -0.01Mpa
Dimension 740x510x1500mm
Net Weight 75kg
Key Benefits
  • Capsule polishing and dust removal
  • Automatic defective capsule sorting
  • Improves capsule surface cleanliness and gloss
  • Suitable for all standard hard capsules
  • Can be connected with capsule filling machines and metal detectors
Product Features
  • Vertical design for space-saving installation
  • High polishing efficiency with gentle handling
  • Stainless steel construction meeting GMP standards
  • Easy operation and quick cleaning
  • Low noise and stable performance
  • Adjustable speed control system
Frequently Asked Questions
What is a capsule polishing and sorting machine used for?
It is used to remove dust from capsules after filling, polish the capsule surface, and automatically sort out defective capsules such as empty, broken, or underfilled capsules.
Can it work with a capsule filling machine?
Yes. The machine is commonly connected directly with capsule filling machines to form a continuous production line.
What types of capsules can it handle?
It is suitable for all standard hard gelatin capsules and HPMC capsules of different sizes.
How does the sorting function work?
The machine uses mechanical and air separation systems to detect and remove lightweight, empty, or broken capsules during the polishing process.
Is the machine easy to clean?
Yes. It is designed with quick disassembly structure, making cleaning and maintenance simple and efficient, in line with GMP requirements.
Does it damage capsules during polishing?
No. The machine uses a gentle polishing system to ensure capsules remain intact while removing dust and improving surface quality.
What is the production capacity?
Capacity depends on model and configuration, typically ranging from small batch production to high-speed industrial output.
Is the machine made of stainless steel?
Yes. The machine is manufactured with high-quality stainless steel, meeting pharmaceutical GMP standards.
Can the speed be adjusted?
Yes. The machine is equipped with a speed control system to adjust polishing and conveying speed according to production needs.
Do you provide customization options?
Yes. We offer customized solutions based on production capacity, capsule size, and integration requirements.
What industries use this machine?
It is widely used in pharmaceutical manufacturing, nutraceutical production, and health supplement industries.
Do you provide installation and technical support?
Yes. We provide operation manuals, remote technical support, and optional on-site installation service.
