Easy-Break Blister Packaging Machine For Honey Pack
Easy-Break Blister Packaging Machine For Honey Pack
Specifications
Brand Name :
SED PHARMA
Model Number :
SED-120P-H
Place of Origin :
CHINA
Description

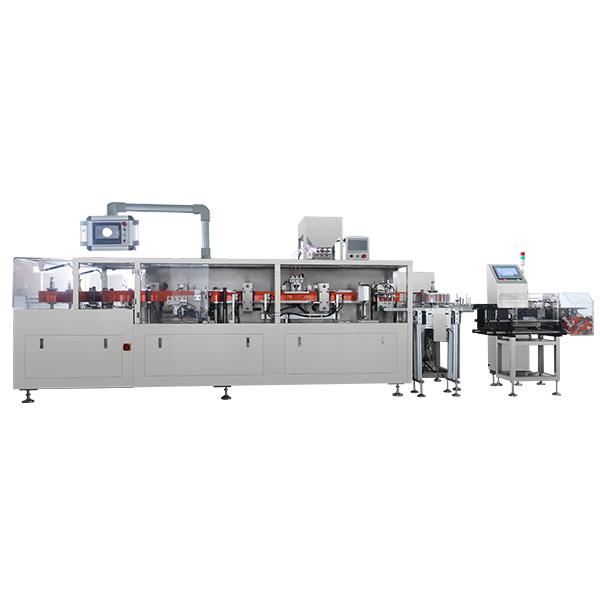

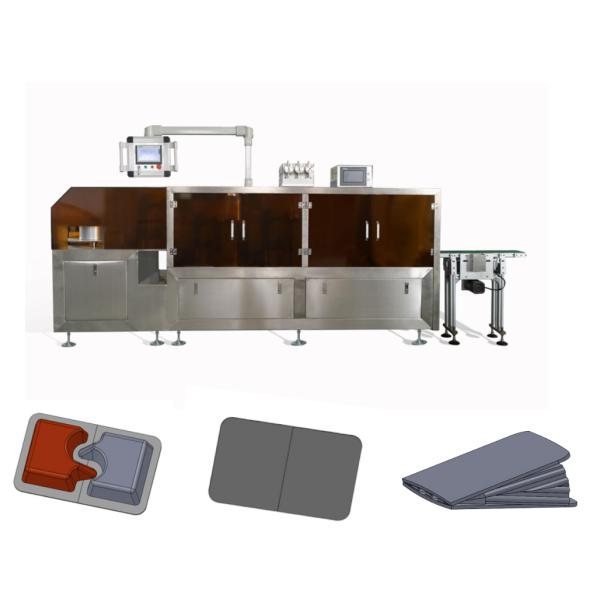

Easy-Break Blister Packaging Machine For Honey Pack
Machine Introduction

SED-120P-H Easy-Break Blister Packaging Machine is used for forming, filling and sealing packaging of liquid and paste materials. The finished product can be broken open with only one hand, and the material can be squeezed out.

This machine completes forming, film pre-cutting, material filling, sealing, die cutting and finished product output in an automatic process. It is suitable for sauce, perfume, cosmetic, oral liquid, honey, etc., which is convenient to carry and use.


Features

1. It is controlled with PLC, and the speed is regulated with servo motor.

2. Film feeding, plastic forming, filling, sealing, batch number printing, impressing, and die cutting can be completed automatically by program.

3. Simple and clear operation with HMI.

4. Filling nozzle with no dripping, foaming or spilling.

5. Liquid contact part adopts high quality stainless steel, GMP-compliant.

6. Main pneumatic components and electrics adopt imported brand.

7. There are two types of electronic peristaltic pump automatic control system and mechanical filling, with high filling accuracy.

Technical Parameters

Model

SED-120P-H

Max. Forming Depth

20mm

Cutting Frequency

0-22 times

Packaging Material

PVC/PE

Packaging Size

(0.2-0.4)×120mm

Filling Volume

1-30ml

Installed Power

6.5KW

Voltage

380V 50HZ

Weight

1100kg

Overall Dimension (L×W×H)

3750×850×1400mm
