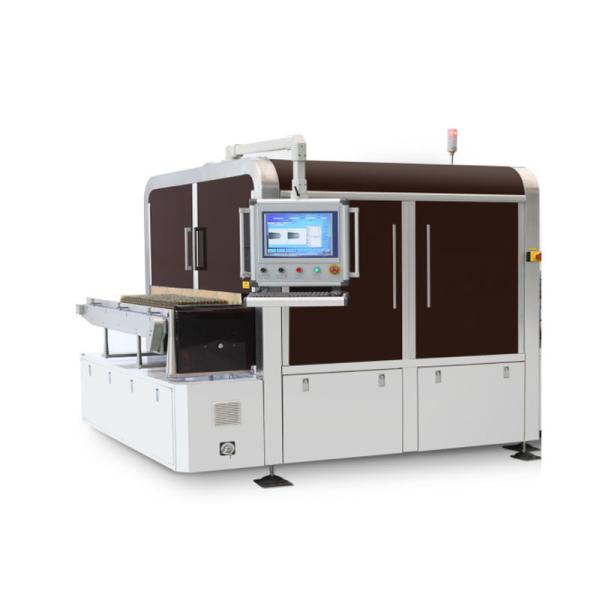

Light Inspection Machine Pharmaceutical Machinery Equipment For Vials Ampoule
Light Inspection Machine Pharmaceutical Machinery Equipment For Vials Ampoule
Specifications
Brand Name :
SED Pharma
Model Number :
SED-400QYDJ2-C
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,L/C, MoneyGram,Cash
Supply Ability :
20 Set per month
Delivery Time :
50-60 Days after receiving the deposit
Packaging Details :
Wooden Case
Name :
Light Inspection Machine Pharmaceutical Machinery Equipment For Vials Ampoule
Scope of application :
1-20ml
Test items :
Visible foreign body and filling inspection of ampoules, vials, etc.
Detection accuracy :
Light inspection: 40um (adjustable)
Detection speed :
400vpm,2ml ampoule
Common media :
Power supply: 380V AC three-phase five-wire system with good ground wire capacity
Table height :
900mm
Dimensions :
3610×2100×1900mm(L×W×H)
key word :
Light Inspection Machine
Description

Product Overview of Light Inspection Machine

The full automatic ampoule injection impurity detecting machine is mainly used for automatic detection of visible impurities and seal faults of small volume injections, oral liquid bottles in pharmaceutical enterprises.

With advanced and compact design, the machine adopts high resolution industrial cameras for multiple camera shooting detection of the liquids, so that the visible impurities that may exist in transparent or semi-transparent liquids can be recognized and detected fast and accurately (such as glass shards, scrap metal, fiber, white spots, white blocks, and etc.,).

The machine can also accurately judge if the filling volume is within the permissible range. In addition, the ampoule injection lamp inspection machine can carry out inspection of oral liquid bottle caps.

The nonconforming products can be directly separated from the dialing wheel without entering the detection wheel disc, so that the inspection speed and precision can be greatly enhanced to meet the stipulations in the Chinese Pharmacopoeia.

Product Parameters of Light Inspection Machine

Items Parameter
Scope of application 1-20ml
Test items Visible foreign body and filling inspection of ampoules, vials, etc.
Detection accuracy Light inspection: 40um (adjustable)
Detection speed 400vpm@2ml ampoule
Common media Power supply: 380V AC three-phase five-wire system with good ground wire capacity
Table height 900mm
Dimensions 3610×2100×1900mm(L×W×H)
Net weight About 2600Kg

Application of Light Inspection Machine

It can detect ampoules, vials, prefilled syringes, large infusion bottles, dental barrel syringes, etc., and the range of product specifications that can be detected is wide: 0.5-1000ml.
