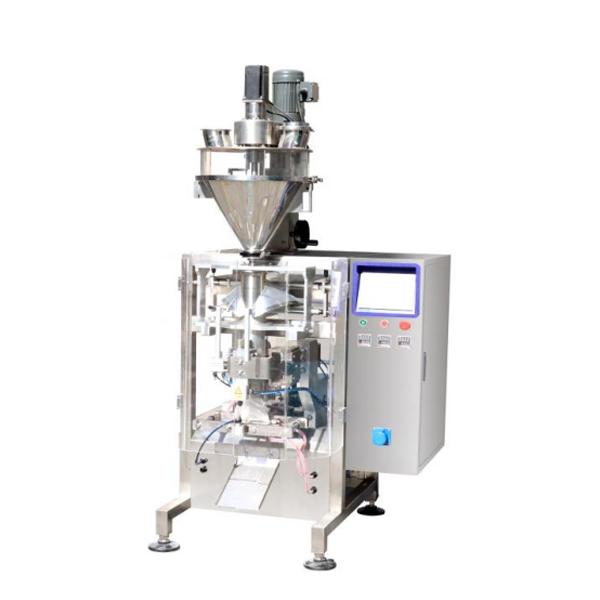

High Speed Automatic Powder Vertical Packaging Machine for Three Sided Sealing
High Speed Automatic Powder Vertical Packaging Machine for Three Sided Sealing
Specifications
Brand Name :
SED Pharma
Model Number :
SED-150FLB1-L
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,L/C,MoneyGram,Cash
Supply Ability :
30 Sets per month
Delivery Time :
50-60 Days after receiving the deposit
Packaging Details :
Wooden Case
Description

Equipment Introduction
1. Equipped with safety protection that meets the requirements of enterprise safety management.
2. Adopting intelligent temperature controller, temperature control is accurate, ensuring beautiful and smooth sealing.
3. The drive control core is composed of PLC servo system, pneumatic control system, and ultra large display touch screen, which maximizes the control accuracy, reliability, and intelligence of the whole machine.
4. The machine and measuring configuration can automatically complete the measurement The entire packaging process includes feeding, filling and bag making, date printing, inflation (exhaust), and finished product transportation, with automatic counting completed.
5. The touch screen can store packaging process parameters for various products, and can be used at any time without resetting when changing products.
6. Equipped with a fault display system to assist in timely troubleshooting.
7. Pillow shaped bags, hanging hole bags, etc. can be made according to customer needs.

Technical Parameters

Model SED-150FLB1-L
Film width 320mm
Drive mode servo motor
Support bag type three-sided sealing/back sealing
Bag size (L) 60-200mm, (W) 60-150mm
Packaging speed 80-130 Bags/Min
Power supply 1P/220V 50Hz, 2Kw
Compressed air 0.8MPa 0.6 m3/min
Weight 300 kg
Size 1300 × 950 × 1300 (mm)
