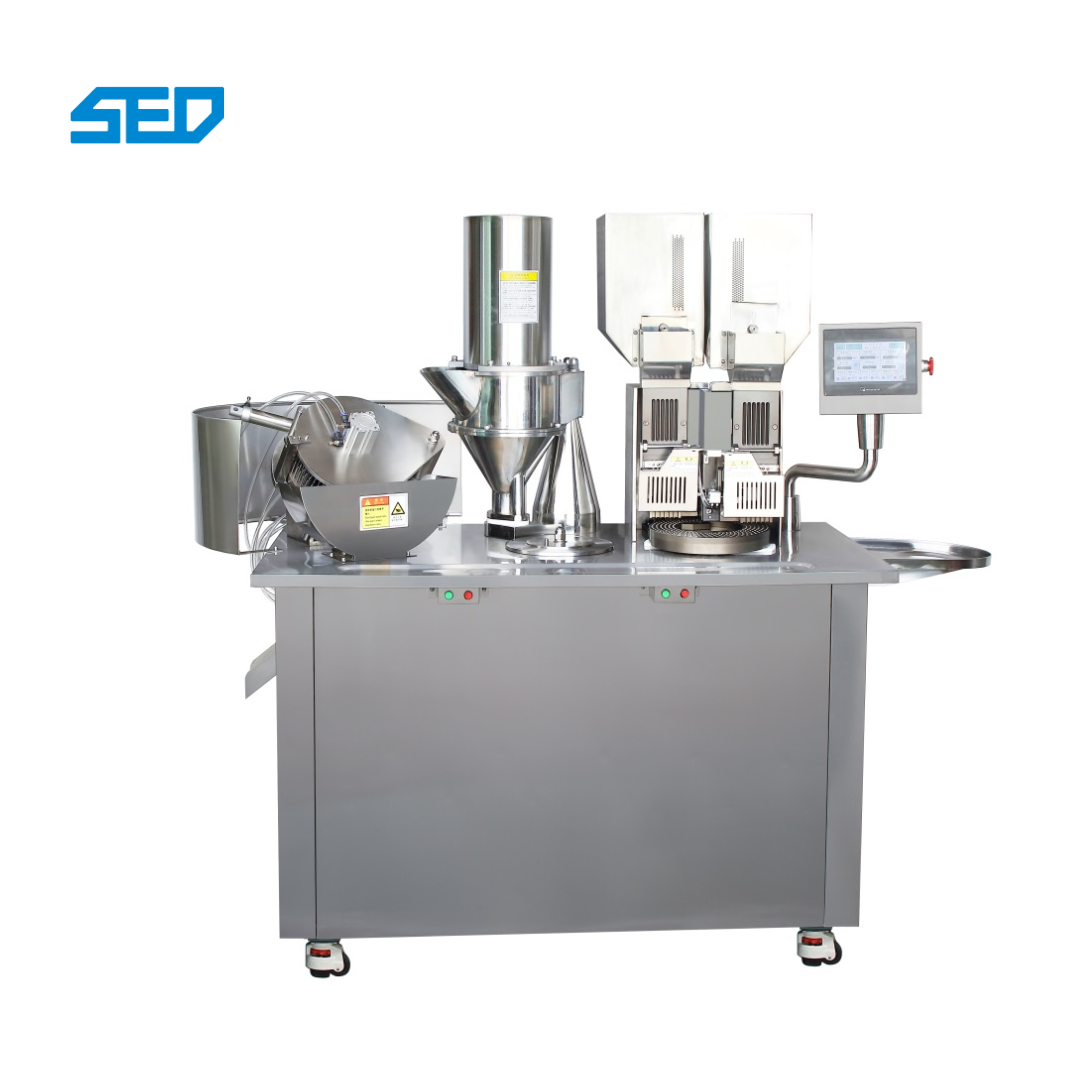

SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine
SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine
SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine
SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine
SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine
SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine
Specifications
Brand Name :
SED-Pharma
Model Number :
SED-BJ-IV
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T,L/C,MoneyGram,Cash
Supply Ability :
30 Sets per month
Delivery Time :
35 Days after receiving the deposit
Packaging Details :
Wooden Case
Name :
SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine
Production capacity(pcs/h) :
10,000–35,000 capsules/hour
Motor(kw) :
2.12KW
Net weight(kg) :
420kg
Overall size(mm) :
1140*780*1600mm
Applicable capsule :
00#-4#
Filling Material :
Small dry granules (non-sticky)
Key word :
Semi Automatic Capsule Filling Machine
Description

SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine


Product Description of Capsule Filling Machine

SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine is a high-efficiency pharmaceutical equipment designed for medium-scale production in the pharmaceutical, nutraceutical, and health supplement industries. Featuring two independently controlled filling heads, this machine provides precise and fast capsule filling, significantly improving production efficiency while ensuring consistent product quality.


Ideal for laboratories, small to medium enterprises, or production lines that require flexible output, this semi-automatic capsule filler combines high precision, reliability, and cost-effectiveness.


Detailed Parameters of Capsule Filling Machine ​

Model

SED-BJ-IV

Capsule Size

#00 – #4

Total Power

2.12 KW

Output Capacity

10,000–35,000 capsules/hour

Filling Material

Small dry granules (non-sticky)

Air Consumption

0.03 m³/min, 0.7 MPa

Net Weight

420 kg

Gross Weight

480 kg

Machine Dimensions

1140 × 780 × 1600 mm

Packing Dimensions

1650 × 800 × 1750 mm


Features of Capsule Filling Machine

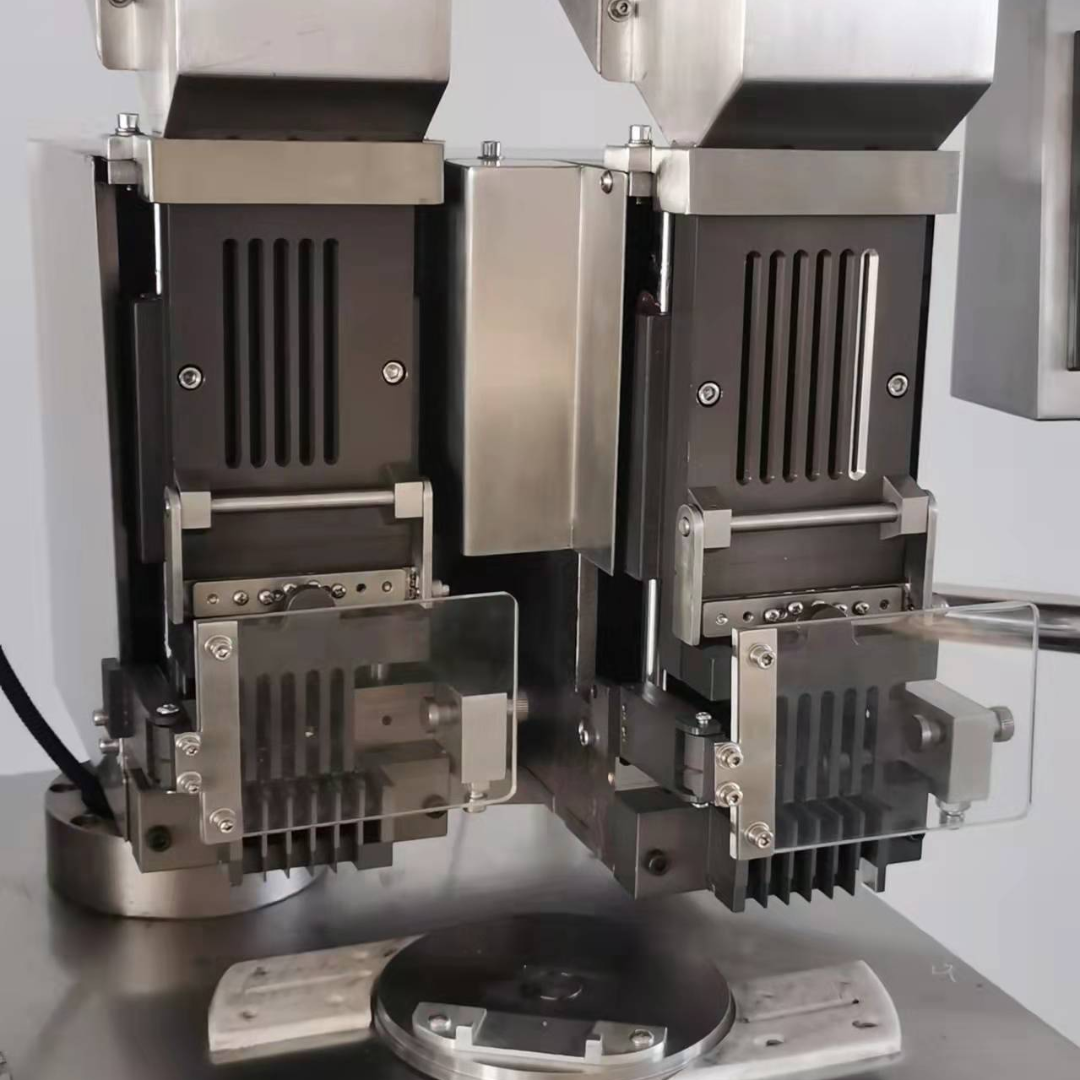

Equipped with two independently controlled filling heads for simultaneous material processing.

Adjustable parameters, including filling volume and speed, to accommodate different production requirements.

Advanced servo motors and precision metering pumps ensure accurate and consistent capsule filling.

Supports multiple filling modes, including quantitative filling and continuous filling.

Compatible with different molds and hoppers for various capsule sizes (#00–#4).

Touchscreen control system for intuitive and easy operation.

Hygienic & GMP Compliant Design

Stainless steel construction for easy cleaning and maintenance.

Equipped with multiple safety protections, including overload protection and emergency stop buttons.

Complies with international safety standards.

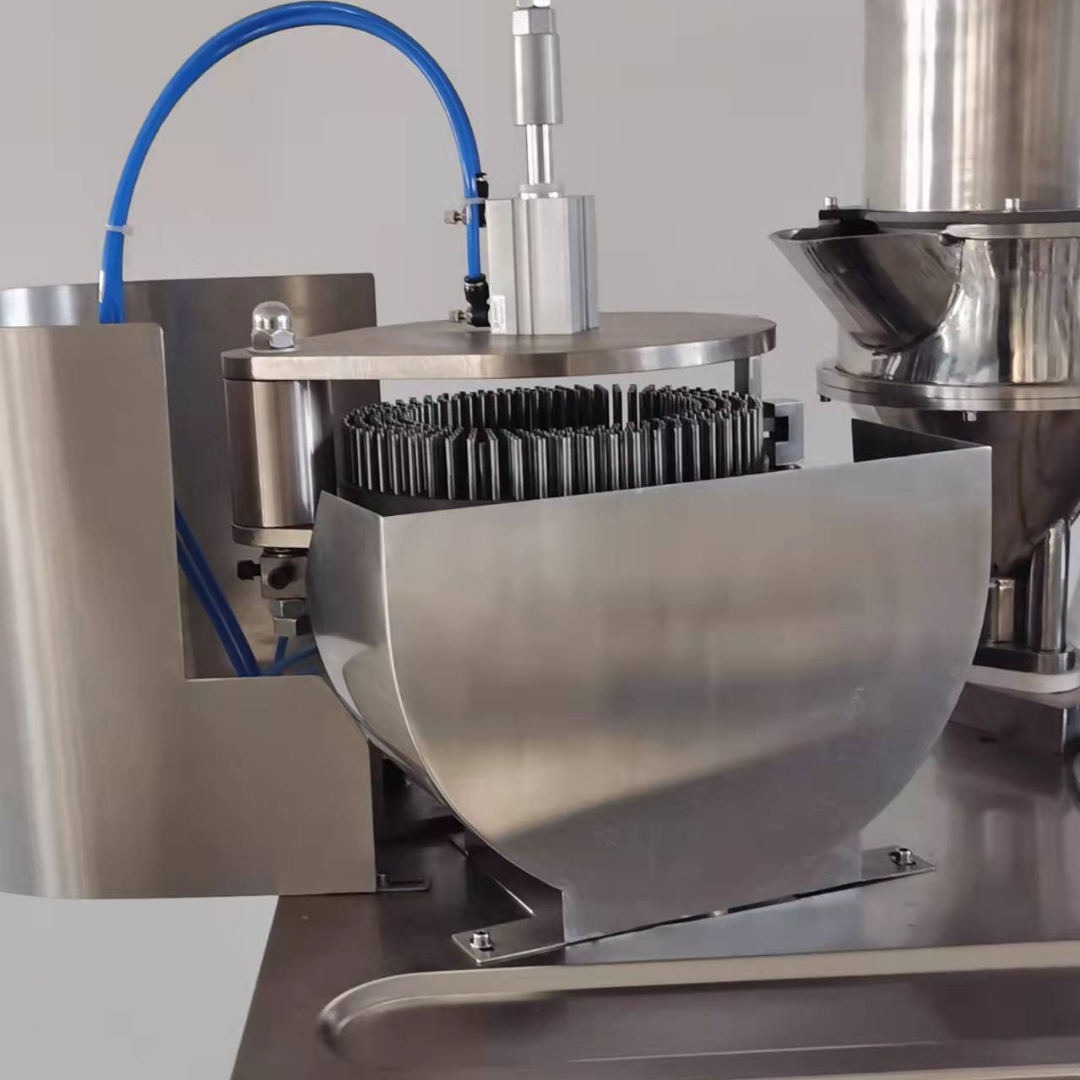

Product Detail

SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine

SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine

SED-BJ-IV Double-Head Semi-Automatic Capsule Filling Machine

Application of Capsule Filling Machine
