Highly Output Powder Capsule Filling Machine
Highly Output Powder Capsule Filling Machine
Highly Output Powder Capsule Filling Machine
Highly Output Powder Capsule Filling Machine
Highly Output Powder Capsule Filling Machine
Highly Output Powder Capsule Filling Machine
Highly Output Powder Capsule Filling Machine
Highly Output Powder Capsule Filling Machine
Highly Output Powder Capsule Filling Machine
Highly Output Powder Capsule Filling Machine
Highly Output Powder Capsule Filling Machine
Highly Output Powder Capsule Filling Machine
Specifications
Brand Name :
SED-Pharma
Model Number :
SED-3800JD-B
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T,L/C, MoneyGram,Cash
Supply Ability :
30 Sets per month
Delivery Time :
35 Days after receiving the deposit
Packaging Details :
Wooden Case
Name :
Highly Output Powder Capsule Filling Machine
Max.output(capsules/hr) :
228000
Capsule size :
00#-5# capsule
Adapt to the filling range :
Powder, Granule, Pellet, Tablet
Working noise :
≤78dBA
Overall dimension (mm) :
1395×1180×2260mm
Number of holes :
27 holes
Total power :
10.5kw
Power supply :
380/220V 50Hz
Machine weight :
2200kg
Description

Highly Output Powder Medicament Filling Capsule Maker Machine

Product Description of Capsule Filling Machine​

SED-3800JD-B Automatic Capsule Filling Machine is commonly used in the pharmaceutical, nutraceutical industries to fill empty hard gelatin capsule of various sizes with powders and pellets (optional). The capsule filler automatically orientates, opens the empty hard gelatin capsule, properly fills the capsule with powder, and automatically closes the capsules.

Technical Parameters

Model SED-3800JD-B
Machine Weight 2200kg
Overall Dimension 1395×1180×2260mm
Total Power 10.5kw
Power Supply 380/220V 50Hz
Capacity 228000 capsules/h
Application 00#-5# capsule
Number of holes 27 holes
Working Noise ≤78dBA
Capsule on Chance Empty capsule ≥ 99.9% Full capsule ≥ 99.8%
Compressed Air Air consumption 12m³/h Pressure 0.3～0.4MPa

Characteristic

  • Efficient Feeding: Disc-valve feeding system with vibration, addressing poor powder flow while ensuring easy cleaning and maintenance.
  • Precision Dosing & Turret: Rail-driven dosing frame with integrated turret for high accuracy, stability, and dust-free operation.
  • Continuous Filling: Modular vacuum filling base supports continuous production and powder recovery, minimizing waste.
  • Dust-Free Capsule Handling: Capsule release mechanism with advanced suction seat ensures efficient and dust-free capsule separation.
  • High-Speed Silent Transmission: Cam-driven system delivers precise, high-speed, and quiet operation.
  • Safe Powder Recovery: Integrated powder collection system prevents cross-contamination and allows safe reuse of spilled powder.
  • Overall Advantage: Efficient, hygienic, and reliable—designed for long-term continuous production.

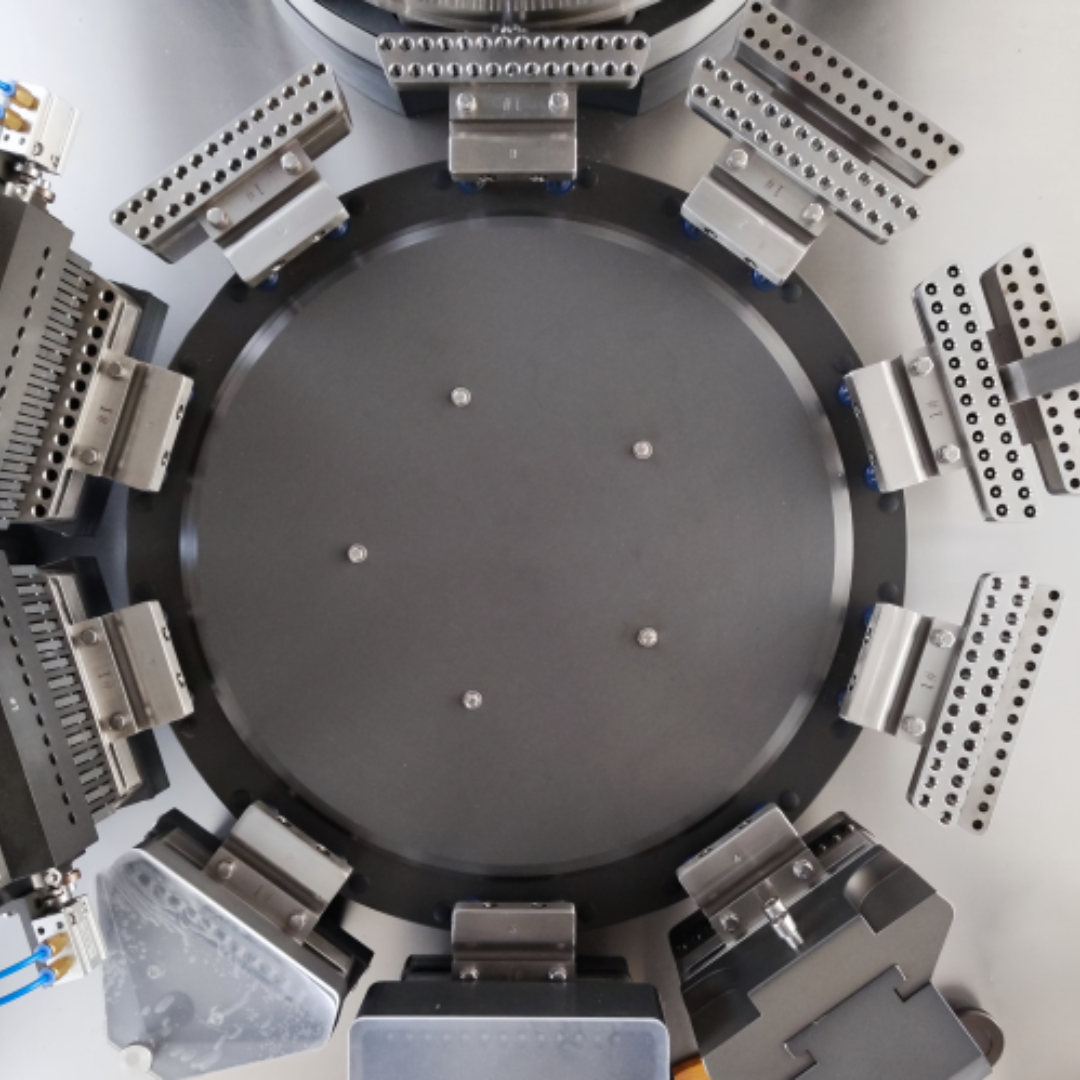

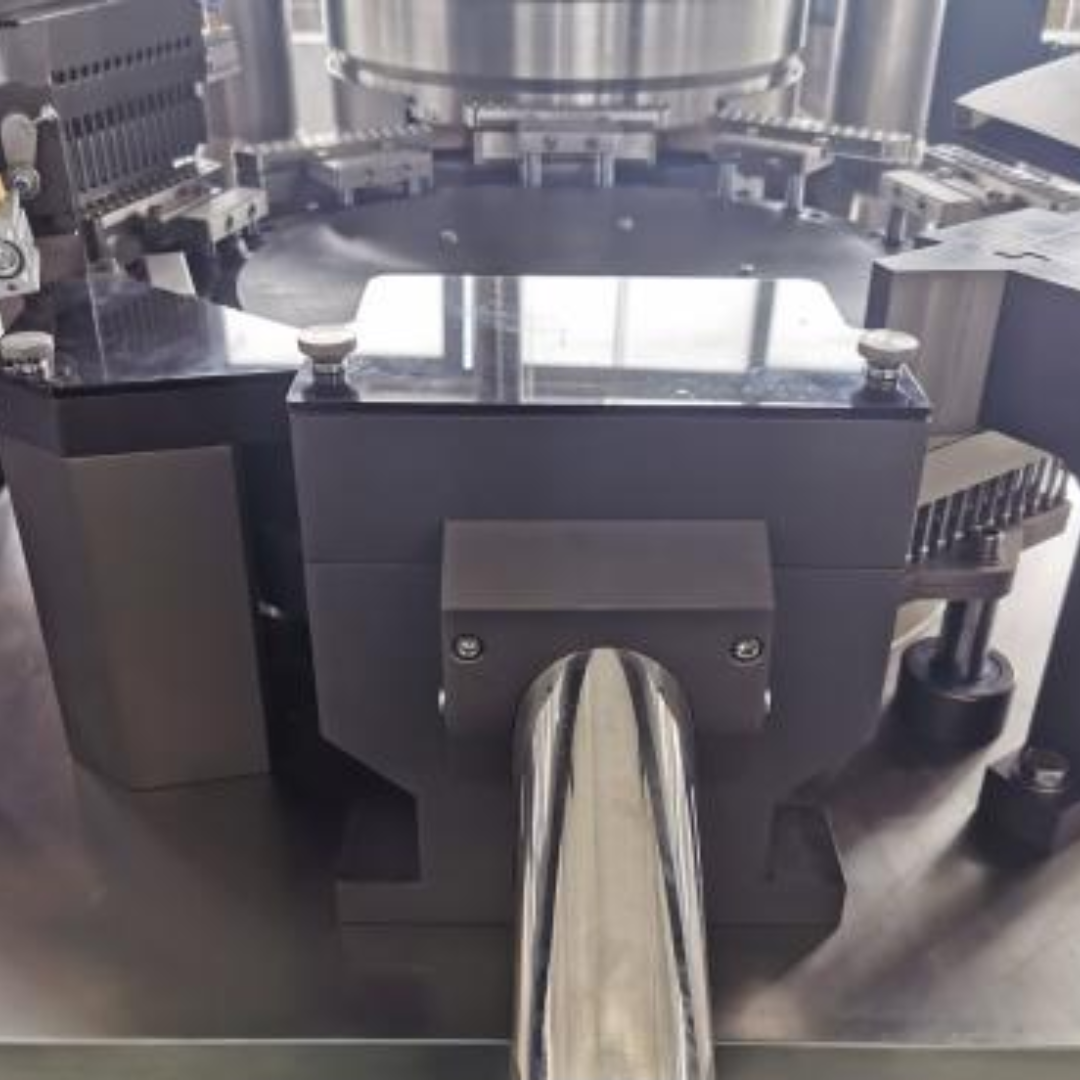

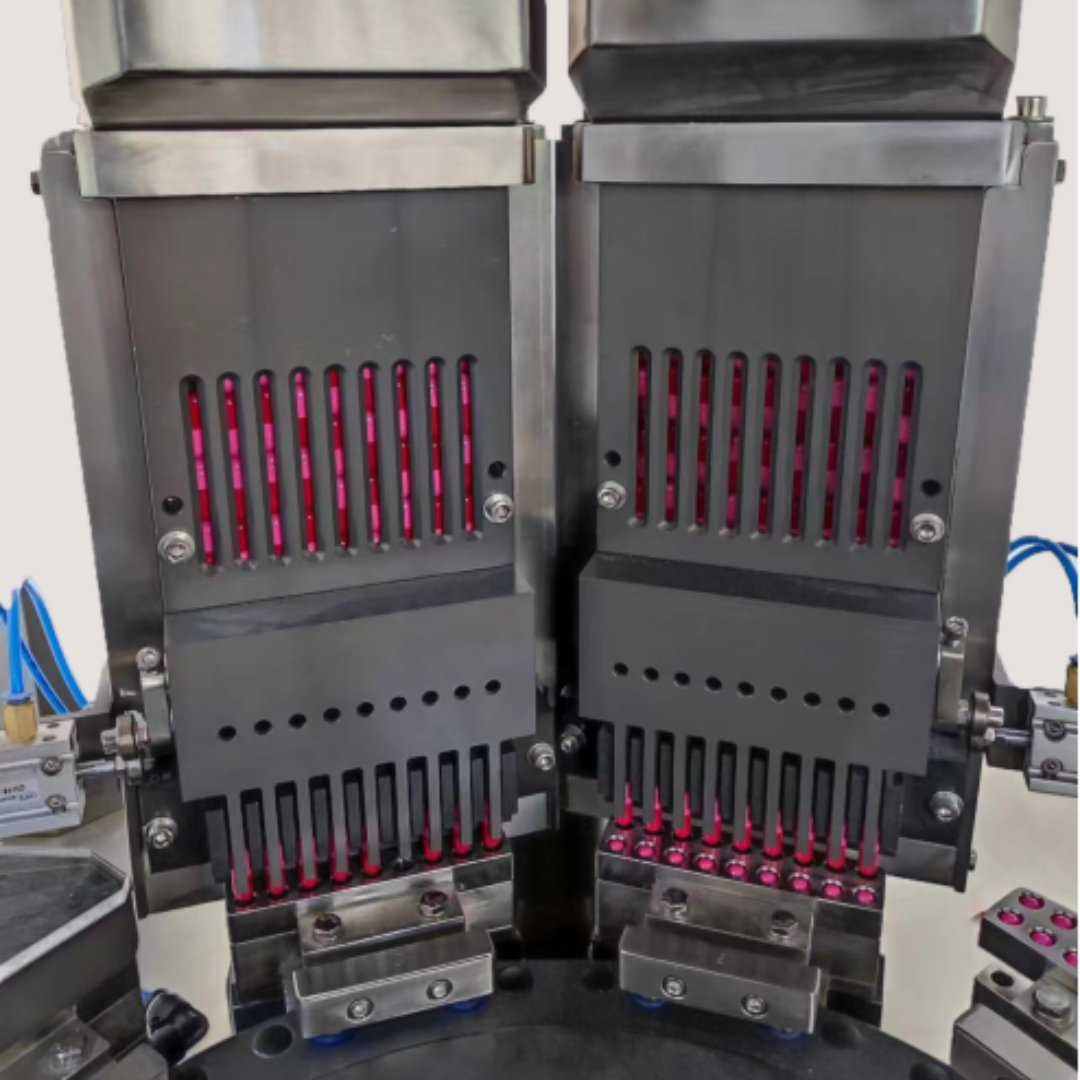

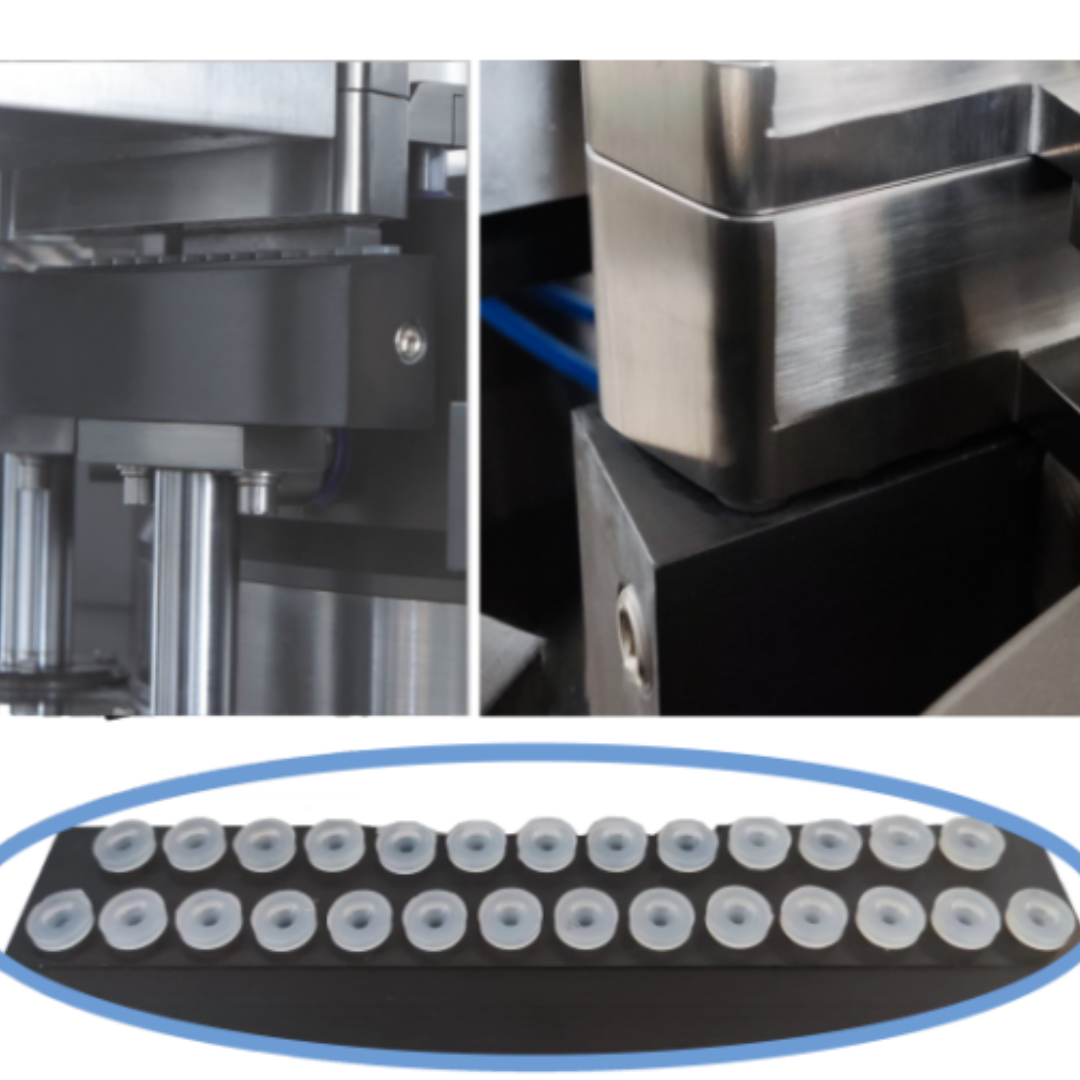

Product Details of Capsule Filling Machine

Highly Output Powder Capsule Filling Machine

Highly Output Powder Capsule Filling Machine

Highly Output Powder Capsule Filling Machine

Highly Output Powder Capsule Filling Machine

Application of Capsule Filling Machine

Highly Output Powder Capsule Filling Machine
