High Speed Cartoner Packaging Machine Automatic Cartoning Machine
High Speed Cartoner Packaging Machine Automatic Cartoning Machine
Specifications
Brand Name :
SED-Pharma
Model Number :
SED-120LZHP-A
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T,L/C,MoneyGram,Cash
Supply Ability :
30 Sets per month
Delivery Time :
35 Days after receiving the deposit
Packaging Details :
Wooden Case
Description

Product Description of Cartoner Packaging Machine​

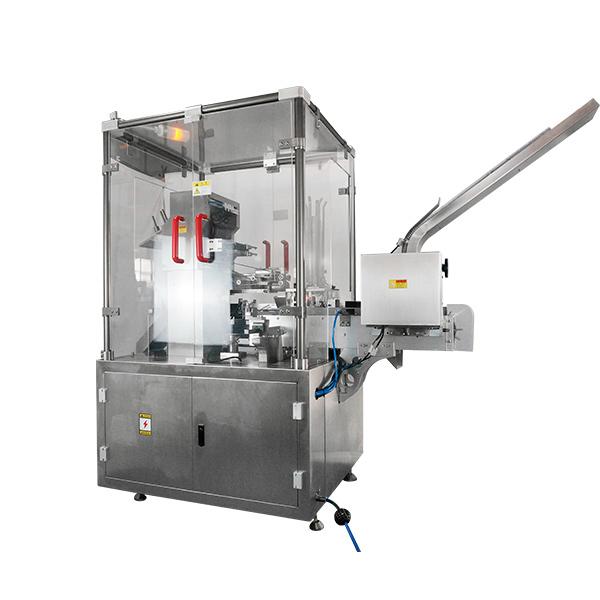

SED-120LZHP-A Automatic Vertical Cartoning Machine packages bottle type products with speed and accuracy. This machine can complete carton erecting, leaflet folding (1-4 fold), leaflet and product inserting and carton sealing in an automatic process. It is capable of filling and sealing a wide range of carton types. Examples include reverse tuck, straight tuck, and glue-spraying. And it can handle standard carton sizes as well as extended sizes (customized).

This cartoner is widely used in outer packaging across a wide spectrum of industries, including cosmetic, pharmaceutical, food and personal care products.


Advantages of Cartoner Packaging Machine

(1) PLC automatic control system, frequency conversion speed regulation, and electrical components all adopt well-known brands.

(2) Adopt touch screen operating system.

(3) Mechanical overload automatic shutdown.

(4) Automatically reject cartons that lack product and leaflet.

(5) Fault display, alarm and finished product counting.

(6) Stable performance and easy operation.

Product Parameters of Cartoner Packaging Machine​

Model

SED-120LZHP-A

Capacity

30-120 cartons/min

Carton Specification

L(65-120)*W(30-85)*H(15-55)mm

Paper Quality of Carton

250-350g/m² (depends on carton size)

Paper Quality of Leaflet

60-70g/m²

Unfolded Leaflet Specification

L(80-250)*W(90-170)mm

Leaflet Folding Type

1-4 fold

Compressed Air Working Pressure

≥0.6MPa

Compressed Air Consumption

120-160L/min

Power Supply

220V 50HZ

Main Motor Power

0.75KW

Weight

1200kg

Overall Dimension (L*W*H)

2700*1140*1800mm
