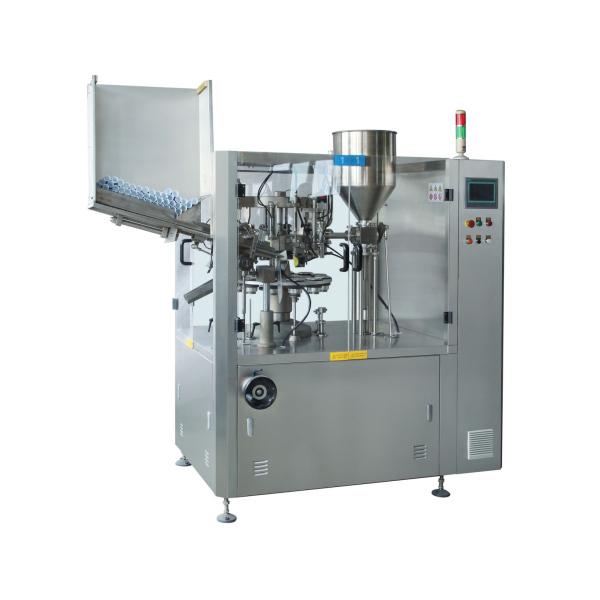

Automatic Aluminum Tube Filling and Sealing Machine
Automatic Aluminum Tube Filling and Sealing Machine
Specifications
Brand Name :
SED Pharma
Model Number :
SED-80RGZ-A
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,L/C,MoneyGram,Cash
Supply Ability :
30 Sets per month
Delivery Time :
35 days after receiving the deposit
Packaging Details :
Wooden Case
Description

Introduction

This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for aluminum tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.

Technical Parameters and Configuration Standard

Model

SED-80RGZ-A


Main Machine Landing Area

≈3m2


Working Area

≈15㎡


Whole Machine(L×W×H)

2500×1200×2400mm


Integrated Structure

Union mode


Weight

≈1200Kg



Features and innovation

1. The product has 12 stations and matching with manipulator, the machine is able to meet different type of tail folding, sealing requirements of ALU tube. It is a multi-purpose machine.

2. Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).

3. With external reversal feeding system, makes tube charging more convenient and tidier.

4. The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.

5. Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.

6. Double-layer jacket instant heater with inside air heating, it won’t damage the pattern outer wall of tube and achieves firm and beautiful sealing effect.
