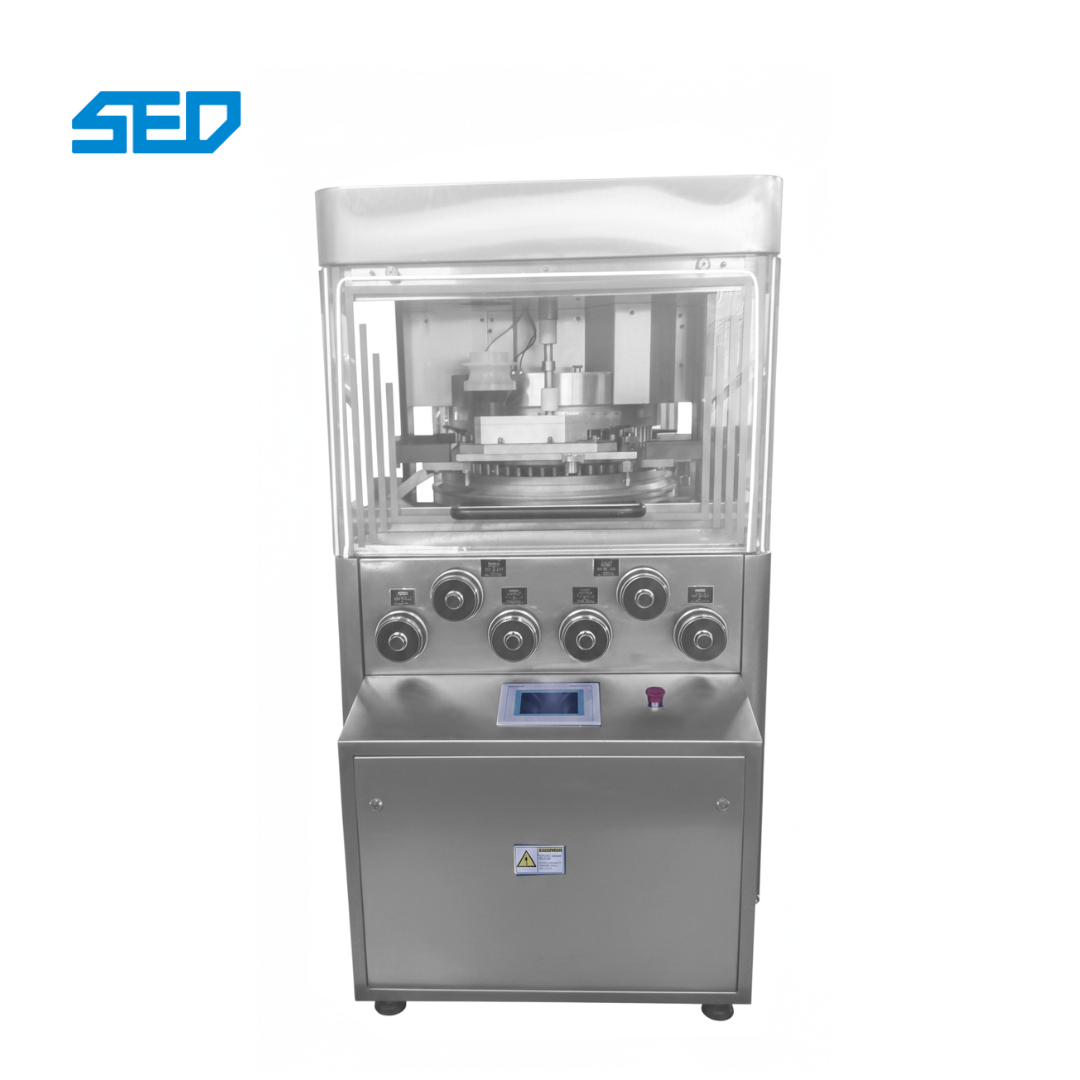

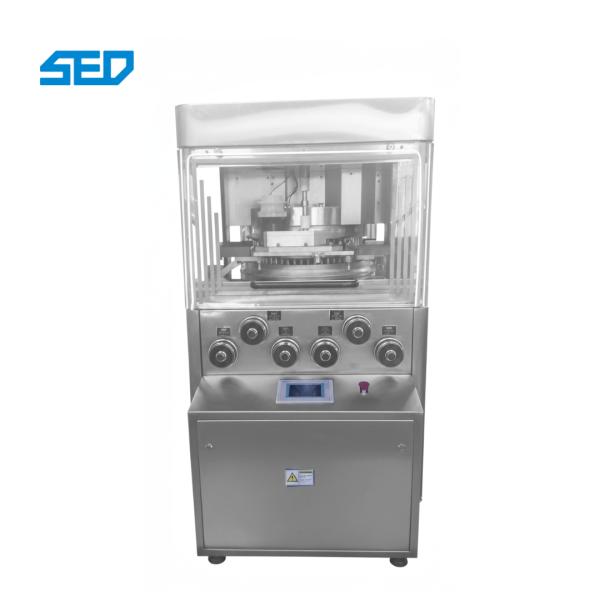

High-Capacity Rotary Tablet Press Machine with 300,000 Pieces per Hour Output GMP-Compliant and Stainless Steel Construction
High-Capacity Rotary Tablet Press Machine with 300,000 Pieces per Hour Output GMP-Compliant and Stainless Steel Construction
High-Capacity Rotary Tablet Press Machine with 300,000 Pieces per Hour Output GMP-Compliant and Stainless Steel Construction
High-Capacity Rotary Tablet Press Machine with 300,000 Pieces per Hour Output GMP-Compliant and Stainless Steel Construction
Specifications
Brand Name :
SED Pharma
Model Number :
SED-600-Y-D
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
30 Sets per month
Delivery Time :
50-60 Days after receiving the deposit
Packaging Details :
Wooden Case
Name :
Rotary Tablet Press for Pharmaceutical & Food Industry
Production Capacity: :
266,200-307,800pcs/h
Max. Tablet Diameter :
11-13mm
Max. Pre-Pressure :
20 KN
Max. Main Pressure :
80 KN
Max. Turret Speed :
45 rpm
Floor Area :
1170×1290 mm
Power :
7.5 KW
Weight :
2800 kg
material :
stainless steel
key word :
Tablet Press Machine
Payment Terms :
T/T,L/C,,Cash
Description
Rotary Tablet Press for Pharmaceutical & Food Industry
Product Overview
The Rotary Tablet Press is a high-performance, continuous automatic machine engineered for pharmaceutical, food, chemical, and electronic industries. Designed to compress granular raw materials into various tablet forms, this equipment delivers maximum output of 300,000 pieces per hour.
Whether you require standard round tablets, complex geometric shapes, or double-sided engraved tablets, the SED series delivers exceptional stability and precision. The equipment is fully GMP-compliant, making it the ideal choice for large-scale pharmaceutical manufacturing and high-capacity production lines.
Technical Specifications
Model SED-600-51Y-D SED-600-57Y-D
Number of Stations 51 57
Max. Main Pressure 80 KN
Max. Pre-Pressure 20 KN
Max. Filling Depth 18 mm
Max. Tablet Diameter 13 mm 11 mm
Max. Capacity 26.62 (10⁴ pcs/h) 30.78 (10⁴ pcs/h)
Max. Turret Speed 45 rpm
Main Motor Power 7.5 KW
Machine Weight 2800 kg
Floor Area 1170×1290 mm
Key Features
  • Complies with GMP requirements for pharmaceutical manufacturing
  • High production efficiency meeting large-scale production needs
  • Equipped with forced feeding device and various impeller types for different materials
  • High pressure with continuously adjustable pre-pressure and extended pressing time
  • 360° tablet pressing chamber design with no dead corners for easy cleaning
  • Special oil-proof and dust-proof system with damping structure
  • High-definition, isolated viewing window design
  • PLC and human-machine interface control for intuitive operation
Product Gallery
High-Capacity Rotary Tablet Press Machine with 300,000 Pieces per Hour Output GMP-Compliant and Stainless Steel Construction
Material Compatibility
Ideal for: Dry granular materials. Fine powder content (>100 mesh) should not exceed 10%.
Not suitable for: Semi-solid materials, moist granules, materials with low melting point, or non-granular powders.
Additional Product Images
High-Capacity Rotary Tablet Press Machine with 300,000 Pieces per Hour Output GMP-Compliant and Stainless Steel Construction High-Capacity Rotary Tablet Press Machine with 300,000 Pieces per Hour Output GMP-Compliant and Stainless Steel Construction High-Capacity Rotary Tablet Press Machine with 300,000 Pieces per Hour Output GMP-Compliant and Stainless Steel Construction High-Capacity Rotary Tablet Press Machine with 300,000 Pieces per Hour Output GMP-Compliant and Stainless Steel Construction High-Capacity Rotary Tablet Press Machine with 300,000 Pieces per Hour Output GMP-Compliant and Stainless Steel Construction High-Capacity Rotary Tablet Press Machine with 300,000 Pieces per Hour Output GMP-Compliant and Stainless Steel Construction
