Multi Lane Conveyor With Servo-driven Dynamic Distribution And Programmable Counting For High-speed Packaging Lines
Multi Lane Conveyor With Servo-driven Dynamic Distribution And Programmable Counting For High-speed Packaging Lines
Specifications
Brand Name :
LTPM CHINA
Model Number :
MTB-4
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
18000
Payment Terms :
30% TT as deposit and 70% before shipping
Supply Ability :
25 sets/ month
Delivery Time :
25 days
Packaging Details :
Wooden Case
Conveying Materials :
Round bottle/square bottle/square box, etc
Grade Separation Entrance :
Trigger Clamping Action & Total Material Count
Outlet Per Output Strip :
Independent channel counting (counting after channelization)
Fully equipped throughout the process :
Clamping positioning, photoelectric counting, etc
Warranty :
5 years
Voltage :
220V/380V
Description

Multi Lane Conveyor With Servo-driven Dynamic Distribution And Programmable Counting For High-speed Packaging Lines

Product Description

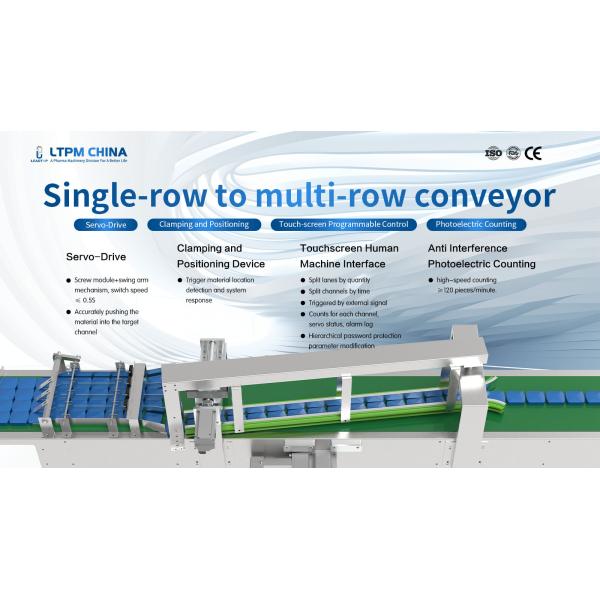

The materials on the single input conveyor belt are dynamically distributed to the output lines of multiple lanes according to the preset rules through the servo motor-driven precision lane-splitting mechanism, which is equipped with clamping and positioning, photoelectric counting, and touch-screen programmable control in the whole process.

1.Single power conveyor belt, uniform speed conveying materials (round bottles/square bottles/square boxes, etc.)
2.High-precision photoelectric sensor is installed at the entrance to trigger material position detection and system response.
3.Splitting mechanism is servo-driven screw module + swing arm mechanism. Switching speed ≤ 0.5S.
The material arrives at the lane-splitting area → the clamping device fixes the material → the servo module receives the PLC command.
The slide moves laterally to push the material precisely into the target channel (left/right/multi-channel)
