Customized Cartoning Machine With 8-station Design And Quick-change System For High-speed Top Loading Packaging
Customized Cartoning Machine With 8-station Design And Quick-change System For High-speed Top Loading Packaging
Specifications
Brand Name :
LTPM CHINA
Model Number :
ZH-100/8
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
20000
Payment Terms :
30% TT as deposit and 70% before shipping
Supply Ability :
25 sets/ month
Delivery Time :
25 days
Packaging Details :
Wooden Case
Type :
Automatic
Product Name :
Automatic Cartoning Machine
Operation System :
Touch Screen
Dimension :
2850*1250*1650mm
Air Pressure :
0.7Mpa
Voltage :
220V/380V
Packaging Accuracy :
≤±1mm
Packaging Size :
L:50-200mm, W:20-100mm, H:15-60mm
Description

Customized Cartoning Machine With 8-station Design And Quick-change System For High-speed Top Loading Packaging

Product Introduction
Automatic Vertical Cartoning Machine (box folding→filling→packing) It is specially design to automatic pack small quantities’ multi size box. With low cost and only require small area. The whole equipment is made of stainless steel 304, made of aluminum alloy with anode treatment. Rust proof long service life and easily clean.

Product application:

This machine is applicable for cylinder-shaped, tubular and Irregular shape products. And it is used for cosmetic, bottles,blister packs, pouches, sachets or tube etc. packing into square box.
( There are more products that can be packaged than the ones in the picture. )

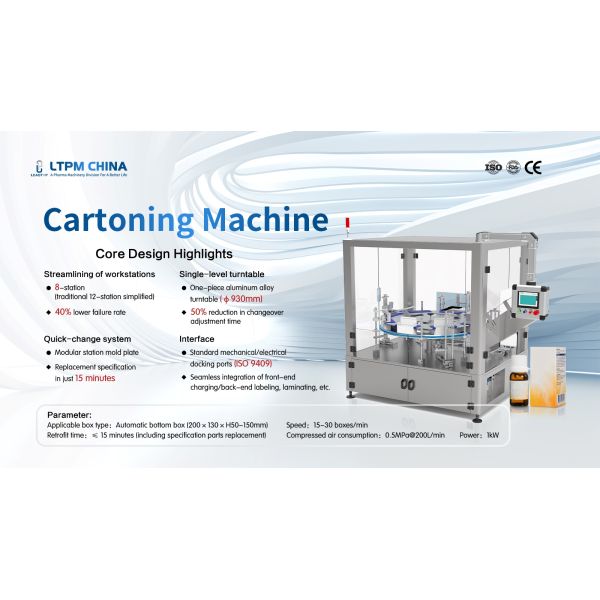

Core Design Highlights
Characterization
Realization of the program
User value
Streamlining of Workstations
8-station
(traditional 12-station simplified)
Reduced mechanical complexity and 40% lower failure rate
Single-level Turntable
One-piece aluminum alloy turntable (φ930mm)
No stacking mechanism, 50% reduction in changeover adjustment time
Quick-change System
Modular station mold plate
Replacement specification in just 15 minutes
Interface
Standard mechanical/electrical docking ports (ISO 9409)
Seamless integration of front-end charging/back-end labeling, laminating, etc.
1.Cam splitter drive system
Model: 80DE-8-120-2R-S3-S3-VW1 (for 8-station)
Large box load-bearing program: turntable selection of high-strength aviation aluminum alloy (single station load-bearing ≥ 5kg)

2.Safety Protection Configuration (Optional)
Class A encoder: Safe guarding of cartoning stations (detection height 400 mm, in accordance with ISO 13849)
Door lock linkage: access door open → splitter brake immediately (response time ≤50ms)
Double protection:
Emergency stop button (mushroom head type, IP67 protection)
Torque overload protection (automatic clutching of splitter overload)
