Efficient Multi Lane Separator System With Pneumatic Clamping And Anti-interference Sensors For Precise Material Handling
Efficient Multi Lane Separator System With Pneumatic Clamping And Anti-interference Sensors For Precise Material Handling
Specifications
Brand Name :
LTPM CHINA
Model Number :
MTB-4
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
18000
Payment Terms :
30% TT as deposit and 70% before shipping
Supply Ability :
25 sets/ month
Delivery Time :
25 days
Packaging Details :
Wooden Case
Conveying Materials :
Round bottle/square bottle/square box, etc
Grade Separation Entrance :
Trigger Clamping Action & Total Material Count
Outlet Per Output Strip :
Independent channel counting (counting after channelization)
Fully equipped throughout the process :
Clamping positioning, photoelectric counting, etc
Warranty :
5 years
Voltage :
220V/380V
Description

Product Description
This ​Multi-Lane Conveyor System​ utilizes advanced servo-driven technology to dynamically distribute materials from a single input conveyor to multiple output lanes. The system features high-precision photoelectric sensors and a touch-screen programmable control interface, enabling dynamic lane distribution based on preset quantity or time rules. Key features include:
• Servo motor-driven screw module and swing arm mechanism for lane splitting (switching speed ≤0.5s)
• Pneumatic clamping and positioning device to eliminate material inertia deviation
• Anti-interference photoelectric sensors supporting high-speed counting (≥120 pieces/min)
• Modular design for quick adjustment and easy maintenance

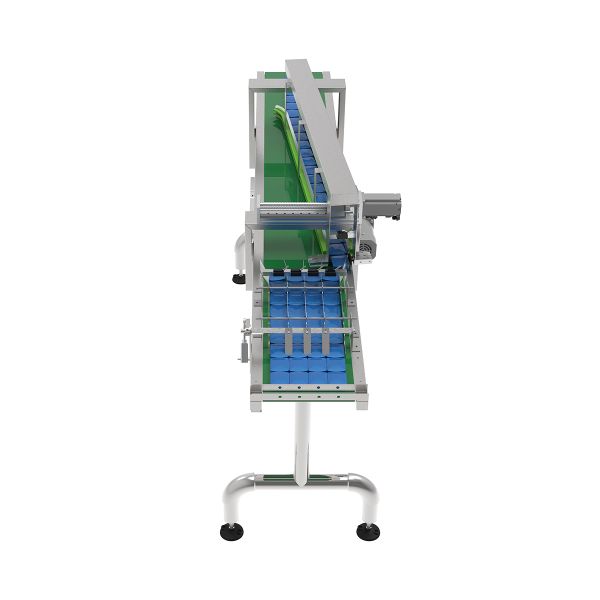

Efficient Multi Lane Separator System With Pneumatic Clamping And Anti-interference Sensors For Precise Material Handling

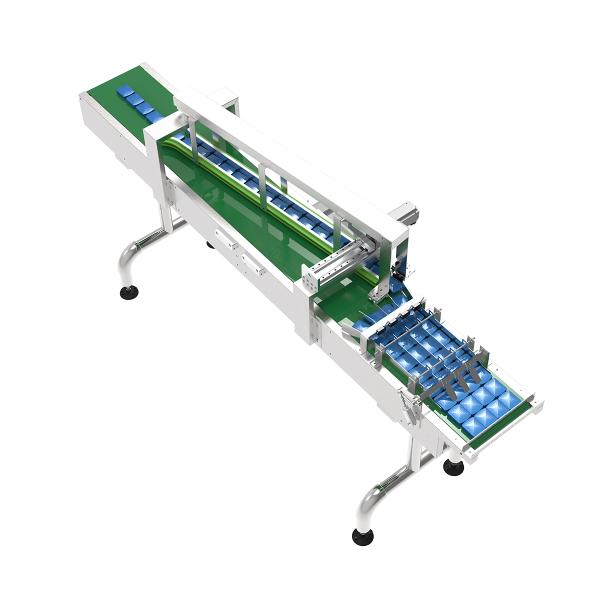

Efficient Multi Lane Separator System With Pneumatic Clamping And Anti-interference Sensors For Precise Material Handling
1.Clamping and positioning device is located in the front part of the lane switching exit and is pneumatically driven. The material enters into the channeling area instantly clamping and positioning, eliminating inertia offset, ensuring the stability of the material attitude when servo channeling.

2.The counting adopts anti-interference photoelectric sensor, adapting to high-speed counting (≥120 pieces/minute).
Placement
Functionality
Grade Separation Entrance
Trigger Clamping Action & Total Material Count
Outlet Per Output Strip
Independent channel counting
(counting after channelization)
3.Touch screen Human Machine Interface (HMI) with programmable counting rules:
Split lanes by quantity (example: 3 pieces left → 5 pieces right → cycle)
Split channels by time (timed channel switching)
Triggered by external signal (linked robot/scanner gun command)
Counts for each channel, servo status, alarm log
Hierarchical password protection parameter modification
