Industrial Freeze Dryer with 15 kg/batch Capacity Touch Screen Control and Steam Heating System
Industrial Freeze Dryer with 15 kg/batch Capacity Touch Screen Control and Steam Heating System
Industrial Freeze Dryer with 15 kg/batch Capacity Touch Screen Control and Steam Heating System
Industrial Freeze Dryer with 15 kg/batch Capacity Touch Screen Control and Steam Heating System
Specifications
Brand Name :
LTPM China
Model Number :
LTDG-Series
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
15 Set/Month
Delivery Time :
25 Days
Packaging Details :
Export Standard Wooden Case
Weight :
1200kgs
Item Name :
Freeze Dryer
Dry Area :
1.08 square meter
Tray Area :
1.02 square meter
The Total Volume of dehydration :
15 kg/batch
Shelf Spacing :
70 mm
Heating mode :
Conduction mode
Operation System :
Touch Screen
Description
With the increasing demand for freeze-dried food, nutrient, flower. LTPMCHINA has designed LTDG series freeze dryers specifically for freeze-drying food,fruits,beverage and
LTDG is suitable for mass production of 200 ~ 2000 kg, equipped with steam heating system. the full system consists of freeze dryer chamber,blast freezer,monorails system. flexiable design fits different client's requirement.

Feature
* Economical design, high efficiency on energy consumption.
* Differnt heat source, steam and electrical.
* Modular design, a combination of fast installation, equipment production cycle is short.
* Drying cabin, hot plates, water and gas trap water chamber volume, highly integrated, ingenious structure, take up less space,
taking the load is small, more economical and practical.
* Continuous automatic vacuum de-icing system, so that the ice condenser coil is only 2-3 mm, small temperature loss,
refrigeration energy arrived; while simplifying the production process, saving time melting ice.
* heating systems in real time precise temperature control to ensure product consistency and ideal batch of product quality.
* Energy efficient, water-capture capability constant unit tray area, large freeze drying capacity;
* vacuum extraction can reach within 12 minutes of vacuum process requirements, and maintain pumping. capacity pump units combine
more energy efficient and economical.
* PLC automatic control system to ensure that all systems lyophilized in the best working condition.
* Machine simple operation, easy maintenance, stable performance, reliable.

Power
167Kw, 380V±10%,50HZ,3Phase,5Wire
Vacuum function
19.8kw
Refrigeration function
92kw
Heating function
55.5kw
Compressed air
≥40L/min(P=0.5~0.8Mpa)
Cooling water Quantity
≥50m3/h(T≤30℃,P=0.2-0.3Mpa)
Defrost water Quantity
≥4000kg(T≥30℃,P=0.1-0.2Mpa)
Whole volume(L×W×H)
Dry chamber and Condenser:
D=φ2100mmL=6650mm
Freeze system vacuum system control system:
L=2600mm W=2200mm H=2000mm
Final dimension based on design
Structure
Split
Total weight
15T(Approx.)
Industrial Freeze Dryer with 15 kg/batch Capacity Touch Screen Control and Steam Heating System

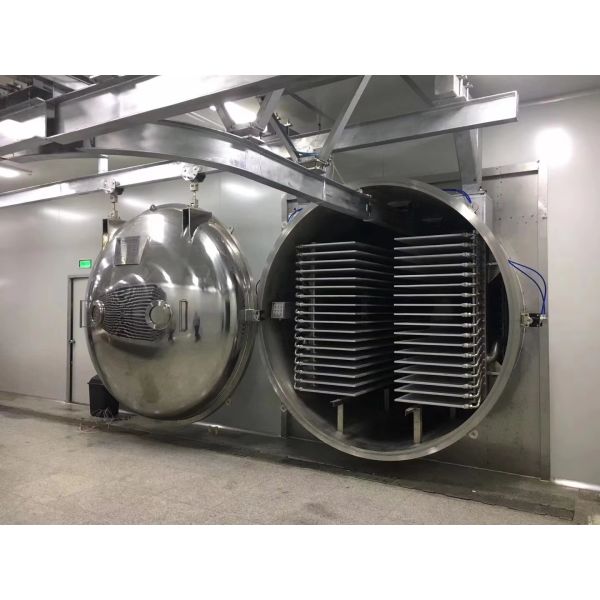

Chamber
Industrial Freeze Dryer with 15 kg/batch Capacity Touch Screen Control and Steam Heating System

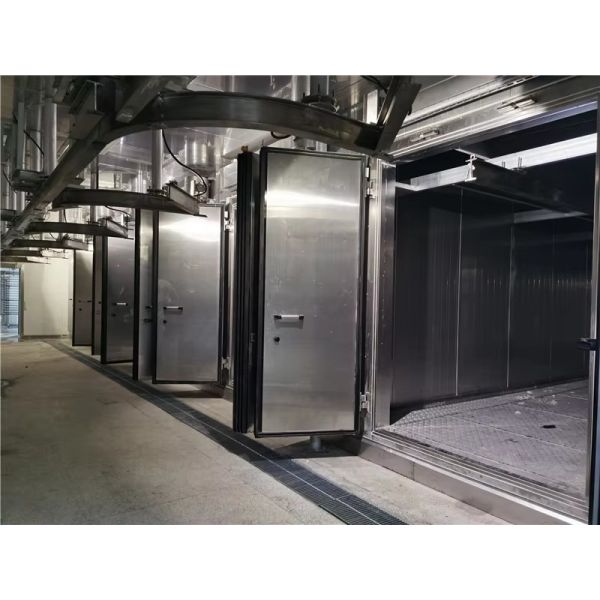

Blast Freezer
Industrial Freeze Dryer with 15 kg/batch Capacity Touch Screen Control and Steam Heating System

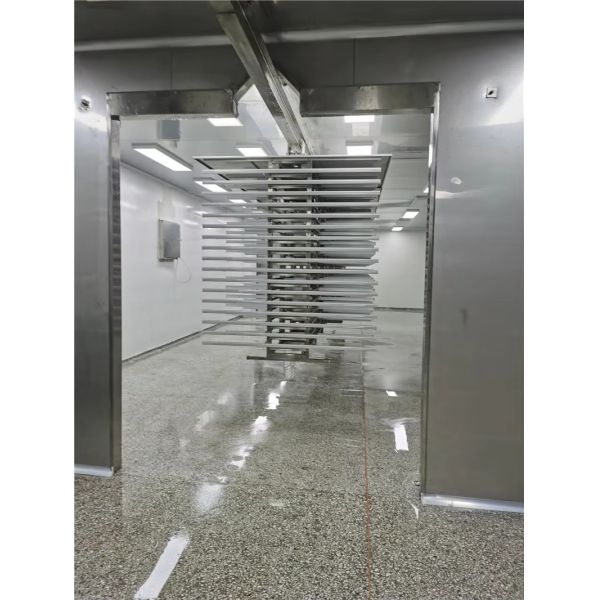

Monorails
Industrial Freeze Dryer with 15 kg/batch Capacity Touch Screen Control and Steam Heating System

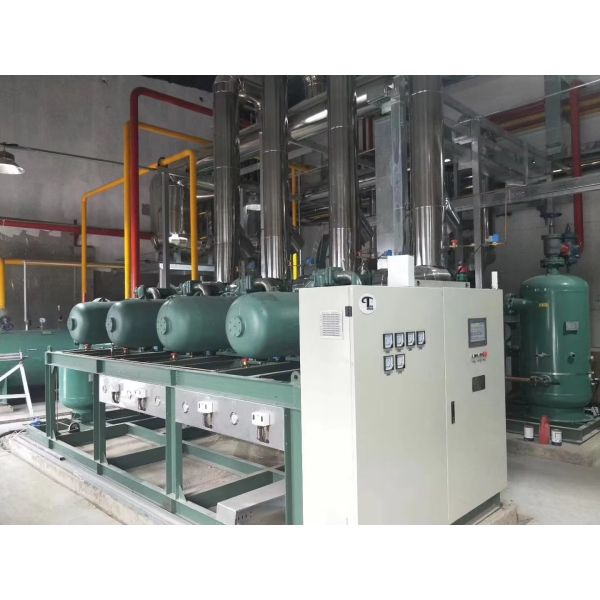

Refrigeration system
Industrial Freeze Dryer with 15 kg/batch Capacity Touch Screen Control and Steam Heating System

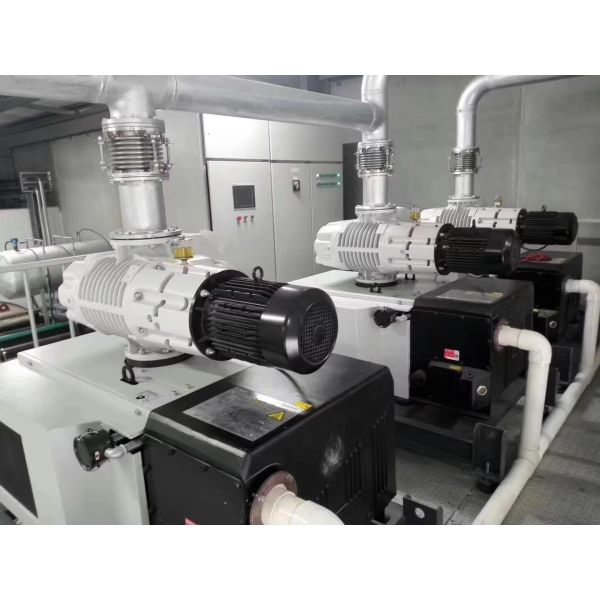

Vacuum system
Industrial Freeze Dryer with 15 kg/batch Capacity Touch Screen Control and Steam Heating System

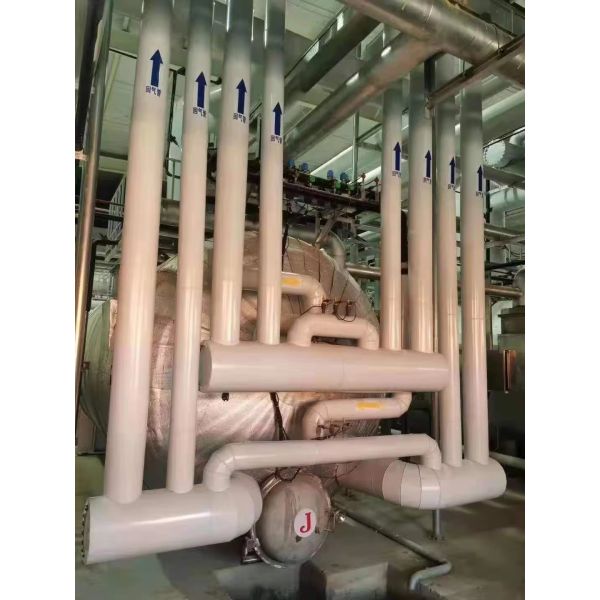

Pipelines
