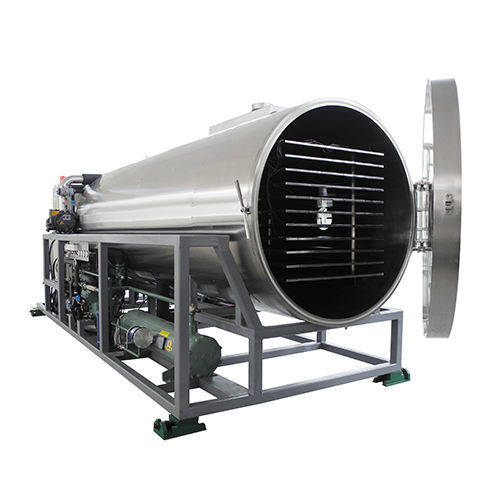

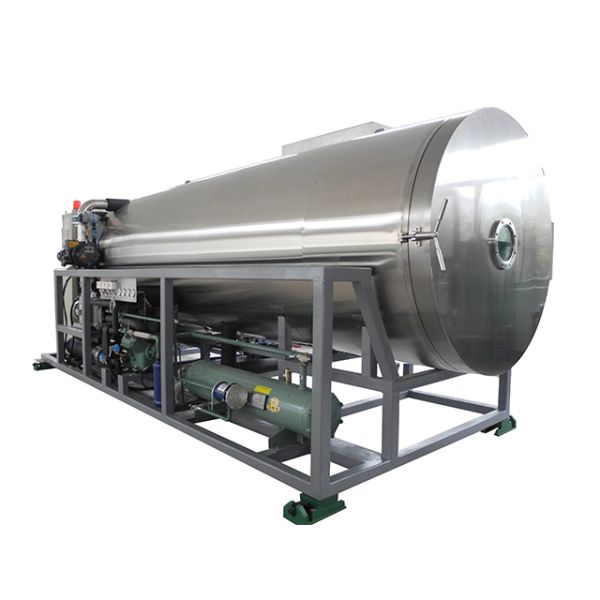

China Factory Industrial Vacuum Lyophilizer for Health Food and Pet Food Freeze Dry Machine
China Factory Industrial Vacuum Lyophilizer for Health Food and Pet Food Freeze Dry Machine
China Factory Industrial Vacuum Lyophilizer for Health Food and Pet Food Freeze Dry Machine
China Factory Industrial Vacuum Lyophilizer for Health Food and Pet Food Freeze Dry Machine
Specifications
Brand Name :
LTPM China
Model Number :
LTDG-Series
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
15 Set/Month
Delivery Time :
25 Days
Packaging Details :
Export Standard Wooden Case
Weight :
1200kgs
Item Name :
Freeze Dryer
Dry Area :
1.08 square meter
Tray Area :
1.02 square meter
The Total Volume of dehydration :
15 kg/batch
Shelf Spacing :
70 mm
Heating mode :
Conduction mode
Operation System :
Touch Screen
Description
The basic principle of freeze-drying is based on the change of three states of water. Water has a solid, liquid and gas state, and the three states can be converted into each other and can coexist.

In the high vacuum state, the principle of sublimation is used to make the water in the pre-frozen material be removed directly from the ice state to water vapor without melting the ice, so as to achieve the purpose of freeze-drying.

Freeze-dried products are spongy, dry shrinkage, excellent rehydration, moisture content is very little, the corresponding packaging can be stored and transported at room temperature for a long time.

  • Economical design with high energy efficiency
  • Multiple heat source options: steam and electrical
  • Modular design for fast installation and short production cycles
  • Highly integrated components with compact footprint and reduced load requirements
  • Continuous automatic vacuum de-icing system with minimal temperature loss
  • Real-time precise temperature control for consistent product quality
  • Energy efficient operation with large freeze drying capacity
  • Rapid vacuum extraction reaching process requirements within 12 minutes
  • PLC automatic control system for optimal working conditions
  • Simple operation, easy maintenance, and reliable performance
Technical Specifications
Power 167Kw, 380V±10%, 50HZ, 3 Phase, 5 Wire
Vacuum Function 19.8kw
Refrigeration Function 92kw
Heating Function 55.5kw
Compressed Air ≥40L/min (P=0.5~0.8Mpa)
Cooling Water Quantity ≥50m³/h (T≤30℃, P=0.2-0.3Mpa)
Defrost Water Quantity ≥4000kg (T≥30℃, P=0.1-0.2Mpa)
Whole Volume Dry chamber and Condenser: D=φ2100mm L=6650mm
Freeze system vacuum system control system: L=2600mm W=2200mm H=2000mm
Final dimension based on design
Structure Split
Total Weight 15T (Approx.)

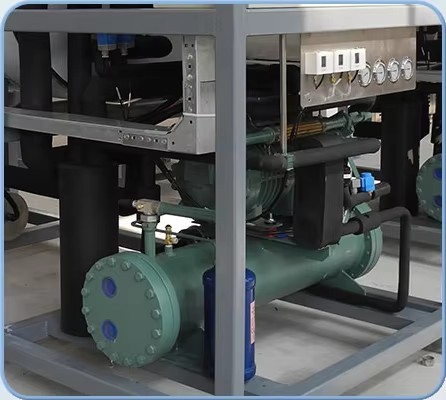

Equipment Components
China Factory Industrial Vacuum Lyophilizer for Health Food and Pet Food Freeze Dry Machine
China Factory Industrial Vacuum Lyophilizer for Health Food and Pet Food Freeze Dry Machine

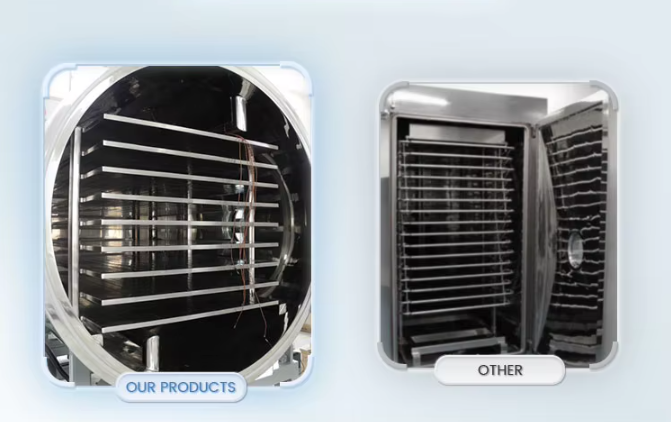

Shelves

Shelf through a dedicatedmachining, can guarantee highdemand flatness.

China Factory Industrial Vacuum Lyophilizer for Health Food and Pet Food Freeze Dry Machine

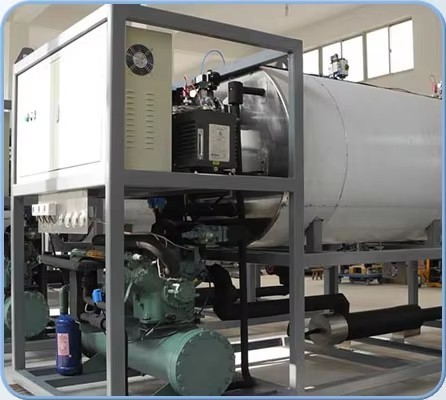

Vacuum System

According to the characteristicsof freeze-dried fruit,use rotaryvane vacuum pump+ roots pumpunit,the pumping speed is largerand more efficient.

China Factory Industrial Vacuum Lyophilizer for Health Food and Pet Food Freeze Dry Machine

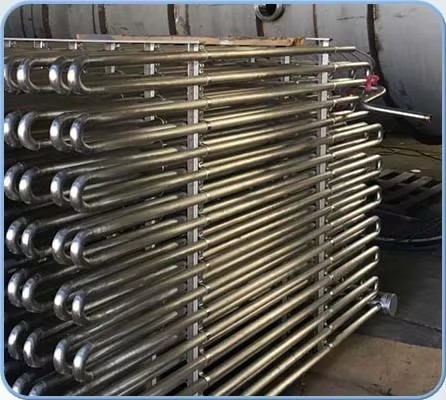

Condense Pipes

Argon welding, forming aninternal and external, toensure pipes cleanly andwithout leak.

China Factory Industrial Vacuum Lyophilizer for Health Food and Pet Food Freeze Dry Machine

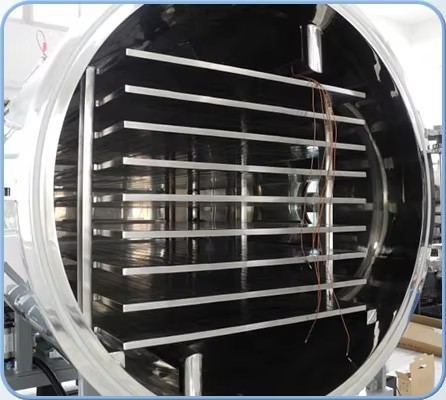

Chamber

Cabinet, board level,andhose are tested after multipleprocedures to ensure withoutleakage.

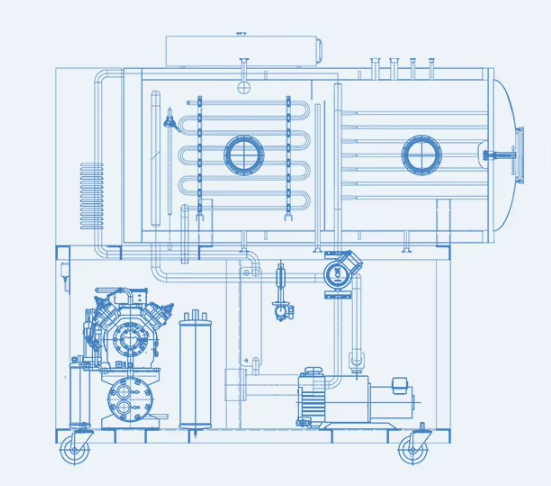

Work Principle
China Factory Industrial Vacuum Lyophilizer for Health Food and Pet Food Freeze Dry Machine
Application
China Factory Industrial Vacuum Lyophilizer for Health Food and Pet Food Freeze Dry Machine
