Specifications
Brand Name :
LTPM CHINA
Model Number :
LTEC-Series
Certification :
CE
Place of Origin :
Zhejiang China
MOQ :
1 Set
Price :
Negotiable price
Delivery Time :
45 Days
Packaging Details :
WOODEN CASE
Model :
RC-2/HY-2/HY-2A/ LTEC-Series
Service :
Door To Door Service
Air Consumption :
≤100L/min
Applicable Bottle :
10~500ml Round、square Plastic Bottle
Packing :
Wooden Case
Filling Range :
2-9999 Pcs/bottle
Accuracy Rate :
＞99.98%
Capacity :
Up To 15,000 Tablets Per Minute
Description

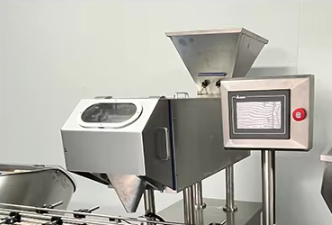

Automatic Capsule Tablet Counting and Bottling Electronic Counting Machine

Mainly used in packing granule,soft gel, food and other industries. It is an electromechanical integrated digital device that accurately counts and fills products such as flakes, granule,gummy candy. Through automatic counting and filling of products,productivity is greatly improved, and manual pollution caused by manual counting and filling is avoided. The machine can be used independently, and can be combined with other unsupported equipment such as bottle unscrambler, bottle clearer, paper jammer, punching machine, capping machine, sealing machine and labeling machine. Designed and manufactured in strict accordance with national GMP standards and process requirements.

High-Speed Automatic Tablet Counting Machine with 15,000 Tablets Per Minute and >99.98% Accuracy for 10~500ml Bottles

Key Features
  • Consistent Feeding: Utilizes a 3-stage multi-channel vibration system
  • Accurate Counting: Boasts dust-proof photoelectric sensors and PLC control
  • Intelligent System: Automatic rejection and alert functions
  • Simple Operation: Intuitive touchscreen control with up to 15 memory presets
  • Dust Collection: Built with a dust manifold for a clean work area
  • Adjustable Height: Easily adapts to different bottle sizes
Technical Specifications
Parameter Specification
Accuracy Rate >99.98%
Application Tablet, Capsules, Pills, Candies, Screws, Nuts
Air Consumption ≤100L/min
Filling Range 2-9999 Pcs/bottle
Pill Size 5-25mm
Model RC-2/HY-2/HY-2A/LTEC-Series
Service Door To Door Service
Packing Wooden Case
Location China
Applicable Bottle 10~500ml Round, square Plastic Bottle
Applications

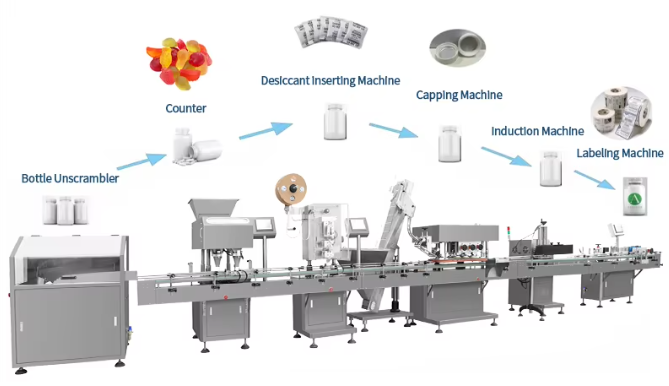

It's specialized for counting the products of medicine, health care, food , agricultural chemicals , and so on. For example: tablets, caoted tablets, soft/hard capsules. The machine can be used along as well as with other machines for complete production line.

High-Speed Automatic Tablet Counting Machine with 15,000 Tablets Per Minute and >99.98% Accuracy for 10~500ml Bottles

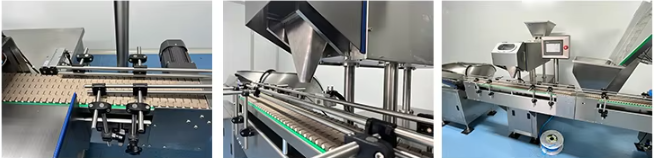

Machine Details

High-Speed Automatic Tablet Counting Machine with 15,000 Tablets Per Minute and >99.98% Accuracy for 10~500ml Bottles

High-Speed Automatic Tablet Counting Machine with 15,000 Tablets Per Minute and >99.98% Accuracy for 10~500ml Bottles

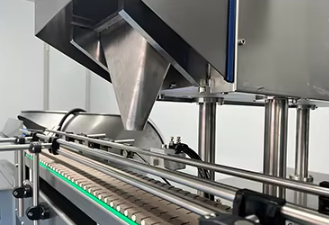

CONVEYOR VIBRATING BLANKING

It is equipped with multi-stage vibratorand multi-channel design, which canvibrate different types of materials stepby step stably and orderly, and thevibration frequency can Adjust

High-Speed Automatic Tablet Counting Machine with 15,000 Tablets Per Minute and >99.98% Accuracy for 10~500ml Bottles

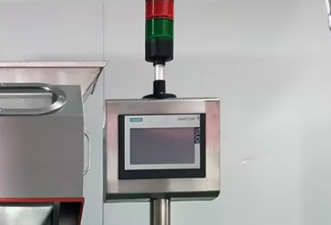

INTELLIGENTCONTROL PANEL

High quality touch screen with stableperformance

High-Speed Automatic Tablet Counting Machine with 15,000 Tablets Per Minute and >99.98% Accuracy for 10~500ml Bottles

LIGHT VIEWINGBATTERY ELECTRICEYE DEVICE

The photoelectric detection devicewith high-quality anti high dust elec-tronic counting technology is sensi-tive and can automatically detect theoperation state of bottles

High-Speed Automatic Tablet Counting Machine with 15,000 Tablets Per Minute and >99.98% Accuracy for 10~500ml Bottles

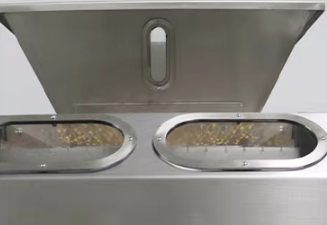

OBSERVATIONWINDOW

It is convenient to observe the falling of materials in a timely andeffective manner, so as to avoidthre sec heheoeulation, and ensure production effi-ciency
