Premade Pouch Stand Up Doypack Granule Nuts Multihead Weigher Automatic Horizontal multifunctional packaging machine
Premade Pouch Stand Up Doypack Granule Nuts Multihead Weigher Automatic Horizontal multifunctional packaging machine
Specifications
Brand Name :
LTPM CHINA
Model Number :
HorizonTop--Series
Certification :
CE,ISO
Place of Origin :
Zhejiang，China
MOQ :
1 Set
Price :
Consultation and detailed discussion
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25sets/month
Delivery Time :
35days
Packaging Details :
Export Standard Wooden Case
Packaging type :
Stand-up Pouch, Bags, Film, Pouch, Sealing
Automatic grade :
Automatic
Voltage :
380 V/220V
Filling Material :
Powder, Paste, Granule, Liquid, Solid
Application :
Food,Beverage,Commodity,Chemical,Machinery & Hardware,Apparel,Textiles,Cigarettes,Pharmaceutical
Warranty :
5 years
Description

Products Description

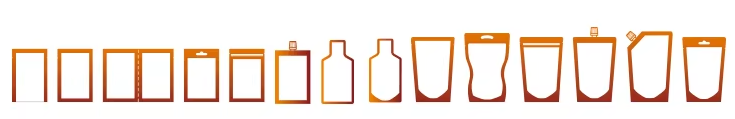

HorizonTop--Series multi-functional HFFS pouch packing machine is designed for doypack with zipper, with functions of making hanging hole or special shapes.
HorizonTop--Series packaging machine can complete pouch forming, feeding, measuring, filling, sealing, date printing, nitrogen filling, counting, and finished product delivery. It is suitable for filling different products such as powder, granule, liquid, cream and other non free-flowing liquid when equipped with feeding and measuring devices.
Premade Pouch Stand Up Doypack Granule Nuts Multihead Weigher Automatic Horizontal multifunctional packaging machine
Premade Pouch Stand Up Doypack Granule Nuts Multihead Weigher Automatic Horizontal multifunctional packaging machine
Machine Data
Model
HorizonTop--210
HorizonTop--250
HorizonTop--360
HorizonTop--450
HorizonTop--500
Speed
30-50 bags/min
30-45 bags/min
15-35 bags/min
40-80 bags/min
3-15 bags/min
Accuracy
± 1.5%
± 1.5%
± 1.5%
± 1.5%
± 1.5%
Bag width
55-200mm
80-250mm
120-350mm
100~200mm
120-400mm
Bag height
100-280mm
100-280mm
100-280mm
100~280mm
150-500mm
capacity
1-5kg
1-5kg
1-5kg
1-5kg
1-15kg
Power
4kw
4kw
4kw
6kw
4kw
Gas consumption
0.6m3/min
0.6m3/min
0.6m3/min
0.6m3/min
0.6m3/min
Air pressure value
0.6MPa
0.6MPa
0.6MPa
0.6MPa
0.6MPa
Weight
1450kg
1700kg
2200kg
2000kg
800kg
Size(mm)
2900*1000*1390
3500*1000*1390
3900*1000*1390
3800*1000*1200
2300*1000*1390
Warranty
5 years
5 years
5 years
5 years
5 years

Premade Pouch Stand Up Doypack Granule Nuts Multihead Weigher Automatic Horizontal multifunctional packaging machine

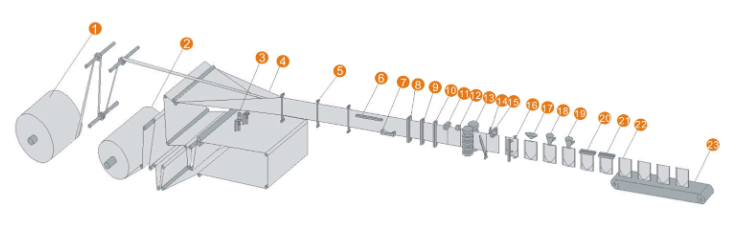

1.Zipper Release 2.Film Unwind 3.Bottom Holes Punching 4.Bag Forming 5.Film Guide
6.Horizontal Zipper Seal 7.Bottom Seal 8.Vertical Zipper Seal 9.Vertical Seal I 10.Vertical Seal II
11.Tear Notch 12.Photocell 13.Servo Advance 14.Cutting 15.Pouch Catching
16.Pouch Opening 17.Air Flushing 18.Filling I 19.Filling II 20.Top Seal I 21.Top Seal II 22.Finished Product 23.Outlet

Premade Pouch Stand Up Doypack Granule Nuts Multihead Weigher Automatic Horizontal multifunctional packaging machine

The filling system is just for your reference. We will offer you best solution according to your product mobility, viscosity, density, volume, dimensions etc.
A. Powder Packing Solution
Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder etc.
B. Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
C. Solid Packing Solution
Combination multi-head weigther is specialized for solid filling such as candy, nuts, pasta, and dried fruit etc.
D. Granule Packing Solution
Volumetric Cup Filler is specialized for granule filling such as salt, sugat, and seasonings etc.
E. More Packing Solution
For more solution, welcome to contact us.
Focus On Details
Premade Pouch Stand Up Doypack Granule Nuts Multihead Weigher Automatic Horizontal multifunctional packaging machine

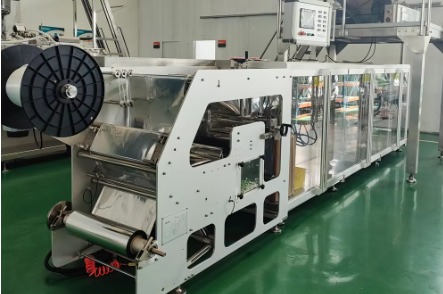

Independent Film Unwind Unit
1. Ensure good control of film tensile force;
2. More flexible for film roll width or pouch specification;
3. Better doypack forming;
Premade Pouch Stand Up Doypack Granule Nuts Multihead Weigher Automatic Horizontal multifunctional packaging machine
Servo Advance System
1. Digital specification switching, simple and convenient;
2. Stable pouch advance with less deviation;
3. Big torquemoment of pouch advance, suitable for big volume
Premade Pouch Stand Up Doypack Granule Nuts Multihead Weigher Automatic Horizontal multifunctional packaging machine

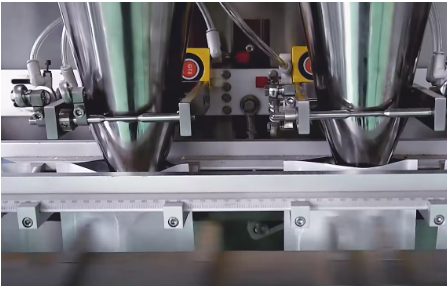

Dual Filling Station
1. Reduce filling time by half;
2. Improved filling accuracy;
3. Can filling 2 products simultaneously.
Premade Pouch Stand Up Doypack Granule Nuts Multihead Weigher Automatic Horizontal multifunctional packaging machine

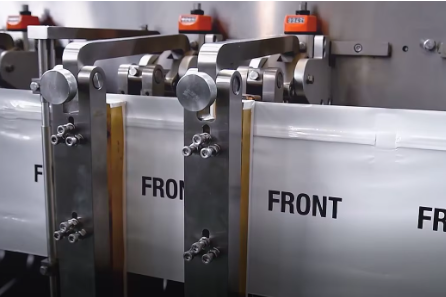

Zipper Function
1.Independent zipper unwind device;
2. Stable zipper tensile force control;
3.Even zipper seal.
