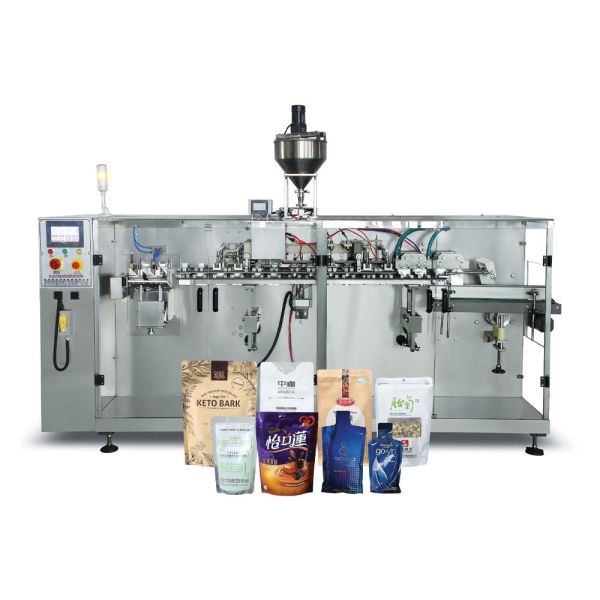

Fully Automatic Premade Pouch Filling Nuts Coffee Bean Horizontal multifunctional packaging machine
Fully Automatic Premade Pouch Filling Nuts Coffee Bean Horizontal multifunctional packaging machine
Fully Automatic Premade Pouch Filling Nuts Coffee Bean Horizontal multifunctional packaging machine
Fully Automatic Premade Pouch Filling Nuts Coffee Bean Horizontal multifunctional packaging machine
Specifications
Brand Name :
LTPM CHINA
Model Number :
HorizonTop--Series
Certification :
CE,ISO
Place of Origin :
Zhejiang，China
MOQ :
1 Set
Price :
Consultation and detailed discussion
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25sets/month
Delivery Time :
35days
Packaging Details :
Export Standard Wooden Case
Packaging type :
Stand-up Pouch, Bags, Film, Pouch, Sealing
Automatic grade :
Automatic
Voltage :
380 V/220V
Filling Material :
Powder, Paste, Granule, Liquid, Solid
Application :
Food,Beverage,Commodity,Chemical,Machinery & Hardware,Apparel,Textiles,Cigarettes,Pharmaceutical
Warranty :
5 years
Description

Products Description

1) This automatic linear premade shaped stand up pouches / sachets packing machine is for packaging all kinds of liquid.
2) It is an economical pouch packing machine at a high working speed (20pcs-50pcs) for filling and sealing shaped sachets.
3) It is composed of a mini pick fill seal premade pouch packing machine, a liquid material hopper and a feeding system.
4) If you want to buy a packing machine for making and filling all kinds of different shaped sachets, this is an ideal packing machine.
5) The machine does pouch picking up, pouch opening, liquid filling, pouch sealing and pouch cutting to required shape fully automatically.
Fully Automatic Premade Pouch Filling Nuts Coffee Bean Horizontal multifunctional packaging machine
Fully Automatic Premade Pouch Filling Nuts Coffee Bean Horizontal multifunctional packaging machine
Machine Data
Model
HorizonTop--210
HorizonTop--250
HorizonTop--360
HorizonTop--450
HorizonTop--500
Speed
30-50 bags/min
30-45 bags/min
15-35 bags/min
40-80 bags/min
3-15 bags/min
Accuracy
± 1.5%
± 1.5%
± 1.5%
± 1.5%
± 1.5%
Bag width
55-200mm
80-250mm
120-350mm
100~200mm
120-400mm
Bag height
100-280mm
100-280mm
100-280mm
100~280mm
150-500mm
capacity
1-5kg
1-5kg
1-5kg
1-5kg
1-15kg
Power
4kw
4kw
4kw
6kw
4kw
Gas consumption
0.6m3/min
0.6m3/min
0.6m3/min
0.6m3/min
0.6m3/min
Air pressure value
0.6MPa
0.6MPa
0.6MPa
0.6MPa
0.6MPa
Weight
1450kg
1700kg
2200kg
2000kg
800kg
Size(mm)
2900*1000*1390
3500*1000*1390
3900*1000*1390
3800*1000*1200
2300*1000*1390
Warranty
5 years
5 years
5 years
5 years
5 years

Features
1) Easy and simple to put bags in the bag slot, equipped with automatic bag pressing device;
2) No filling, no sealing;
3) The machine is of SS304 appearance. Carbon steel frame and some parts are acid- resistant, salt-resistant anti-corrosion layer processed.
4) Most parts are fabricated by mold production; the main material is 304 stainless and alumina.

Fully Automatic Premade Pouch Filling Nuts Coffee Bean Horizontal multifunctional packaging machine
