100ml Standup Pouch Roll Film Top Spout Doypack Automatic Horizontal multifunctional packaging machine
100ml Standup Pouch Roll Film Top Spout Doypack Automatic Horizontal multifunctional packaging machine
100ml Standup Pouch Roll Film Top Spout Doypack Automatic Horizontal multifunctional packaging machine
100ml Standup Pouch Roll Film Top Spout Doypack Automatic Horizontal multifunctional packaging machine
100ml Standup Pouch Roll Film Top Spout Doypack Automatic Horizontal multifunctional packaging machine
100ml Standup Pouch Roll Film Top Spout Doypack Automatic Horizontal multifunctional packaging machine
100ml Standup Pouch Roll Film Top Spout Doypack Automatic Horizontal multifunctional packaging machine
100ml Standup Pouch Roll Film Top Spout Doypack Automatic Horizontal multifunctional packaging machine
100ml Standup Pouch Roll Film Top Spout Doypack Automatic Horizontal multifunctional packaging machine
100ml Standup Pouch Roll Film Top Spout Doypack Automatic Horizontal multifunctional packaging machine
Specifications
Brand Name :
LTPM CHINA
Model Number :
HorizonTop--Series
Certification :
CE,ISO
Place of Origin :
Zhejiang，China
MOQ :
1 Set
Price :
Consultation and detailed discussion
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25sets/month
Delivery Time :
35days
Packaging Details :
Export Standard Wooden Case
Packaging type :
Stand-up Pouch, Bags, Film, Pouch, Sealing
Automatic grade :
Automatic
Voltage :
380 V/220V
Filling Material :
Powder, Paste, Granule, Liquid, Solid
Application :
Food,Beverage,Commodity,Chemical,Machinery & Hardware,Apparel,Textiles,Cigarettes,Pharmaceutical
Warranty :
5 years
Description

Products Description

Equipped with servo motor filler,LTPMCHINA powder packaging machines could realize high filling accuracy, fast packing speed, easy to operate and adjust. It is widely applied in Pharmaceutical, food, Daily chemical etc. industries all over the world like United State, Europe, Southeast Asia, South Africa etc.with CE certification and tech. Patents.
100ml Standup Pouch Roll Film Top Spout Doypack Automatic Horizontal multifunctional packaging machine
Machine Data
Model
HorizonTop--210
HorizonTop--250
HorizonTop--360
HorizonTop--450
HorizonTop--500
Speed
30-50 bags/min
30-45 bags/min
15-35 bags/min
40-80 bags/min
3-15 bags/min
Accuracy
± 1.5%
± 1.5%
± 1.5%
± 1.5%
± 1.5%
Bag width
55-200mm
80-250mm
120-350mm
100~200mm
120-400mm
Bag height
100-280mm
100-280mm
100-280mm
100~280mm
150-500mm
capacity
1-5kg
1-5kg
1-5kg
1-5kg
1-15kg
Power
4kw
4kw
4kw
6kw
4kw
Gas consumption
0.6m3/min
0.6m3/min
0.6m3/min
0.6m3/min
0.6m3/min
Air pressure value
0.6MPa
0.6MPa
0.6MPa
0.6MPa
0.6MPa
Weight
1450kg
1700kg
2200kg
2000kg
800kg
Size(mm)
2900*1000*1390
3500*1000*1390
3900*1000*1390
3800*1000*1200
2300*1000*1390
Warranty
5 years
5 years
5 years
5 years
5 years

100ml Standup Pouch Roll Film Top Spout Doypack Automatic Horizontal multifunctional packaging machine

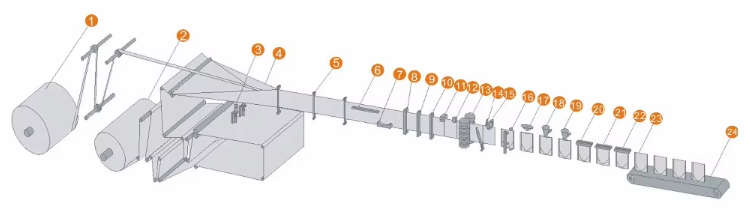

1.Zipper Release 2.Film Unwind 3.Bottom Holes Punching 4.Bag Forming 5.Film Guide 6.Horizontal Zipper Seal 7.Bottom Seal 8.Vertical Zipper Seal 9.Vertical Seal I 10.Vertical Seal II 11.Tear Notch 12.Photocell 13.Servo Advance 14.Cutting 15.Pouch Catching 16.Pouch Opening 17.Air Flushing 18.Filling I 19.Filling II 20.Pouch Stretching 21.Top Seal I 22.Top Seal II 23.Finished Product 24.Outlet

100ml Standup Pouch Roll Film Top Spout Doypack Automatic Horizontal multifunctional packaging machine

Focus On Details

100ml Standup Pouch Roll Film Top Spout Doypack Automatic Horizontal multifunctional packaging machine

Light Walking Beam

1. Faster working speed
2. Longer operational life span

100ml Standup Pouch Roll Film Top Spout Doypack Automatic Horizontal multifunctional packaging machine

Servo Advance System

1. Easy computerized specification change

2. Stable pouch advance with less deviation

3. Big torquemoment of pouch advance, suitable for big volume

100ml Standup Pouch Roll Film Top Spout Doypack Automatic Horizontal multifunctional packaging machine

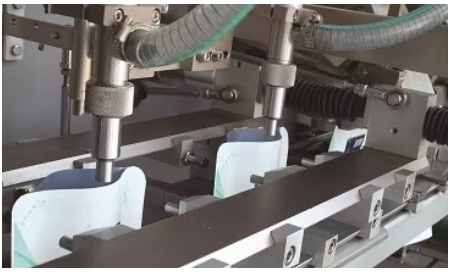

Dual Filling Station

1. Reduce filling time by half
2. Improved filling accuracy
3. Can filling 2 products simultaneously
