High Productivity Plastic Pouch Food Coffee Bean Pet Food Rice Filling Horizontal multifunctional packaging machine
High Productivity Plastic Pouch Food Coffee Bean Pet Food Rice Filling Horizontal multifunctional packaging machine
Specifications
Brand Name :
LTPM CHINA
Model Number :
HorizonTop--Series
Certification :
CE,ISO
Place of Origin :
Zhejiang，China
MOQ :
1 Set
Price :
Consultation and detailed discussion
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25sets/month
Delivery Time :
35days
Packaging Details :
Export Standard Wooden Case
Packaging type :
Stand-up Pouch, Bags, Film, Pouch, Sealing
Automatic grade :
Automatic
Voltage :
380 V/220V
Filling Material :
Powder, Paste, Granule, Liquid, Solid
Application :
Food,Beverage,Commodity,Chemical,Machinery & Hardware,Apparel,Textiles,Cigarettes,Pharmaceutical
Warranty :
5 years
Description

Products Description

This machine is applicable for packing powder, granule, liquid in form of stand up pouch, with different patterns of sealing,which include processes of stand up pouch forming, product dosing, filling and sealing.

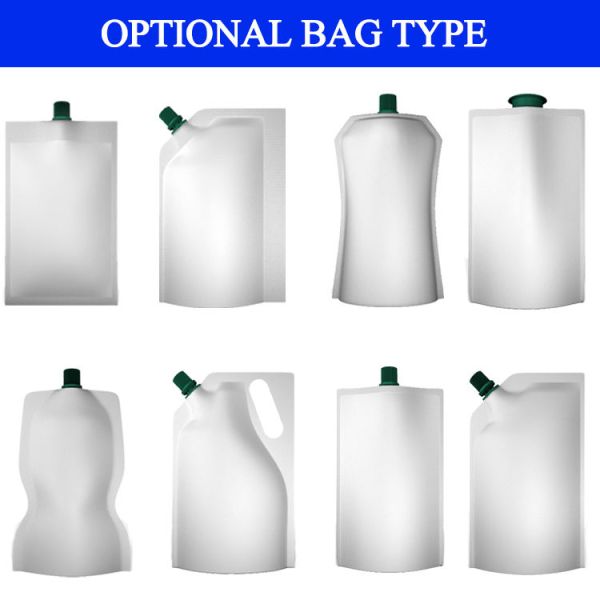

Applicable Pouches
Stand up pouches, Flat pouches, or other irregular shape pouches.
Applicable Products
Configure with different dosing devices, capable to pack with liquid, powder or granule, such as juice, curry, jam, tomato sauce,mayonnaise, nuts, detergent, etc.
High Productivity Plastic Pouch Food Coffee Bean Pet Food Rice Filling Horizontal multifunctional packaging machine
Machine Data
Model
HorizonTop--210
HorizonTop--250
HorizonTop--360
HorizonTop--450
HorizonTop--500
Speed
30-50 bags/min
30-45 bags/min
15-35 bags/min
40-80 bags/min
3-15 bags/min
Accuracy
± 1.5%
± 1.5%
± 1.5%
± 1.5%
± 1.5%
Bag width
55-200mm
80-250mm
120-350mm
100~200mm
120-400mm
Bag height
100-280mm
100-280mm
100-280mm
100~280mm
150-500mm
capacity
1-5kg
1-5kg
1-5kg
1-5kg
1-15kg
Power
4kw
4kw
4kw
6kw
4kw
Gas consumption
0.6m3/min
0.6m3/min
0.6m3/min
0.6m3/min
0.6m3/min
Air pressure value
0.6MPa
0.6MPa
0.6MPa
0.6MPa
0.6MPa
Weight
1450kg
1700kg
2200kg
2000kg
800kg
Size(mm)
2900*1000*1390
3500*1000*1390
3900*1000*1390
3800*1000*1200
2300*1000*1390
Warranty
5 years
5 years
5 years
5 years
5 years

High Productivity Plastic Pouch Food Coffee Bean Pet Food Rice Filling Horizontal multifunctional packaging machine

* HMI Display includes instruction manual and troubleshooting
* Parallel motion of the top sealing bars enables for improved sealing quality and easier maintenance.
* Adcanced Walking beam: transport system consisting of beams and grippers. They hold the pouches and transport them through the
different stations, from the pouch forming to the pouch closing.
* Multiple steps of hot and cold sealing are needed to guarantee sealing quality
* filling : allow hot and cold filling

High Productivity Plastic Pouch Food Coffee Bean Pet Food Rice Filling Horizontal multifunctional packaging machine

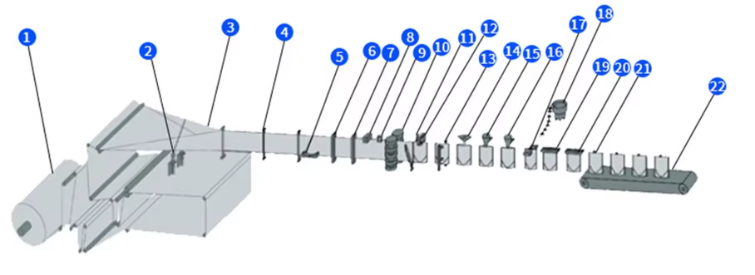

Packing Process

1.Film Unwinding 2.Bottom Holes Punching 3.Bag Forming 4.Film Guide 5.Bottom Sealing 6.Vertical Seal I 7.Vertical Seal II 8.Tear Notch 9.Photocell 10.Servo Advance 11.Cutting 12.Pouch Catching 13.Pouch Opening 14.Air Flushing 15.Filling I 16.Filling II 17.Spout Seal 18.Vibrator 19.Top Seal I 20.Top Seal II 21.Finished Product 22.Outlet

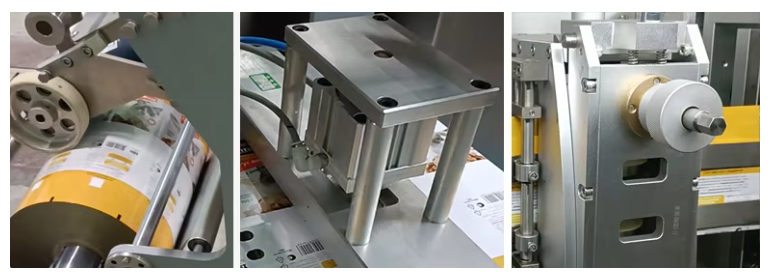

Focus On Details
1. Ensure good control of film tensile force;
2. More flexible for film roll width or pouch specification;
3. Digital specification switching, simple and convenient;
4. Big torquemoment of pouch advance, suitable for big volume
High Productivity Plastic Pouch Food Coffee Bean Pet Food Rice Filling Horizontal multifunctional packaging machine
1. Reduce filling time by half;
2. Improved filling accuracy;
3. Can filling 2 products simultaneously.
High Productivity Plastic Pouch Food Coffee Bean Pet Food Rice Filling Horizontal multifunctional packaging machine
1.coding
cold press code or touch code form, date QR code, bar code can be realized
2.easy notch
easy notch cutting
3 Hanging hole
round hole or euro hole
4.independent film frame
Independent doypack bag forming advice
5.film align(optional)
align film automatically

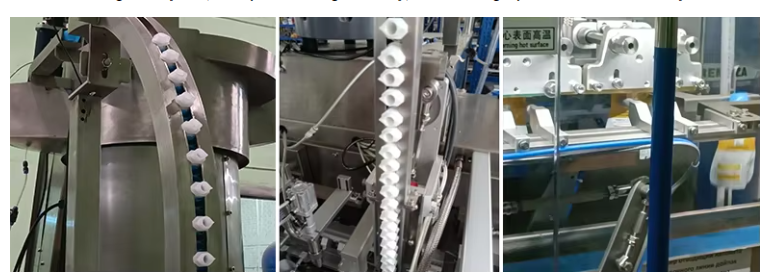

6.top spout (optional)
adding top spout inserting station
7.corner spout (optional)
adding corner spout inserting station
8.double time filling
increase the speed by double-head filling for big package
9.bag support
adding bag support for big package
10 conveyor
select the finished product conveyor belt to transport
