Fully Automatic Double Sachet Form Fill Seal Washing Powder Chemical High Speed Horizontal multifunctional packaging machine
Fully Automatic Double Sachet Form Fill Seal Washing Powder Chemical High Speed Horizontal multifunctional packaging machine
Fully Automatic Double Sachet Form Fill Seal Washing Powder Chemical High Speed Horizontal multifunctional packaging machine
Fully Automatic Double Sachet Form Fill Seal Washing Powder Chemical High Speed Horizontal multifunctional packaging machine
Specifications
Brand Name :
LTPM CHINA
Model Number :
HorizonTop--Series
Certification :
CE,ISO
Place of Origin :
Zhejiang，China
MOQ :
1 Set
Price :
Consultation and detailed discussion
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25sets/month
Delivery Time :
35days
Packaging Details :
Export Standard Wooden Case
Packaging type :
Stand-up Pouch, Bags, Film, Pouch, Sealing
Automatic grade :
Automatic
Voltage :
380 V/220V
Filling Material :
Powder, Paste, Granule, Liquid, Solid
Application :
Food,Beverage,Commodity,Chemical,Machinery & Hardware,Apparel,Textiles,Cigarettes,Pharmaceutical
Warranty :
5 years
Description

Products Description

This series of horizontal premade bag packaging machinesis a fully automatic premade bag packaging machine.

which is suitable for users with many bag types, large packaging capacity,and small batches of products.

lt can meet the commonly used three-side sealing and four-side sealing and can realize the packaging of special bag types

such as hanging hole bags, stand-up bags, special-shaped bags, etc. lt is suitable for the packaging needs of various

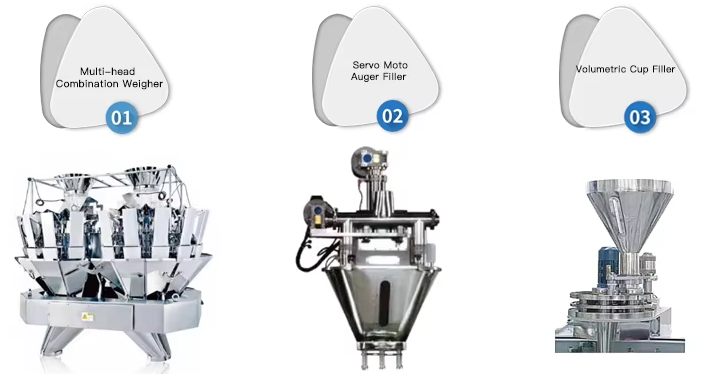

materials such as powder, granule, liquid, paste, and solid.Switching bag types is simple and fast; changing different metering

devices can meet the packaging of differen tproducts.

Fully Automatic Double Sachet Form Fill Seal Washing Powder Chemical High Speed Horizontal multifunctional packaging machine
Equipped with stable filler, Boevan granule packaging machines could realize high filling accuracy, fast packing speed, easy to
operate and adjust. It is widely applied in Pharmaceutical, food, Daily chemical etc. industries all over the world like United
State, Europe, Southeast Asia, South Africa etc.with CE certification and tech. Patents.
Machine Data
Model
HorizonTop--210
HorizonTop--250
HorizonTop--360
HorizonTop--450
HorizonTop--500
Speed
30-50 bags/min
30-45 bags/min
15-35 bags/min
40-80 bags/min
3-15 bags/min
Accuracy
± 1.5%
± 1.5%
± 1.5%
± 1.5%
± 1.5%
Bag width
55-200mm
80-250mm
120-350mm
100~200mm
120-400mm
Bag height
100-280mm
100-280mm
100-280mm
100~280mm
150-500mm
capacity
1-5kg
1-5kg
1-5kg
1-5kg
1-15kg
Power
4kw
4kw
4kw
6kw
4kw
Gas consumption
0.6m3/min
0.6m3/min
0.6m3/min
0.6m3/min
0.6m3/min
Air pressure value
0.6MPa
0.6MPa
0.6MPa
0.6MPa
0.6MPa
Weight
1450kg
1700kg
2200kg
2000kg
800kg
Size(mm)
2900*1000*1390
3500*1000*1390
3900*1000*1390
3800*1000*1200
2300*1000*1390
Warranty
5 years
5 years
5 years
5 years
5 years

Fully Automatic Double Sachet Form Fill Seal Washing Powder Chemical High Speed Horizontal multifunctional packaging machine

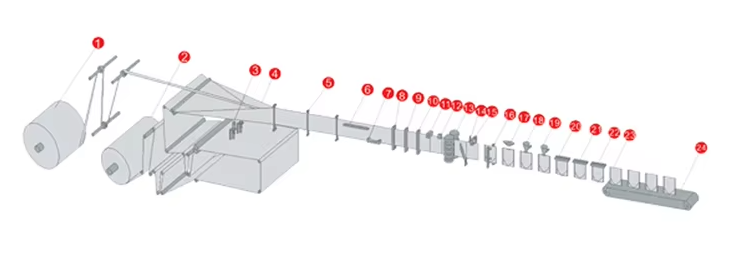

Process chart and Pouch example:
1.Zipper Release 2.Film Unwind 3.Bottom Holes Punching 4.Bag Forming 5.Film Guide 6.Horizontal Zipper Seal 7.Bottom Seal 8.Vertical Zipper Seal 9.Vertical Seal I 10.Vertical Seal II 11.Tear Notch 12.Photocell 13.Servo Advance 14.Cutting 15.PouchCatching 16.Pouch Opening 17.Air Flushing 18.Filling I 19.Filling II 20.Pouch Stretching 21.Top Seal I 22.Top Seal II 23.Finished Product 24.Outlet
Machine Features
1.High precision structure for simple and easy operation and repair.
2.The machine completes the whole procedure of filling,pouching,date printing automatically.
3.Selecte device: zipper bags device ,round pouch hole,pouching device.
4.All the works of bag-forming,weighing, filling, sealing and cutting can be done automatically by this machine.
5.Package material: PE/AL/PET; PE/NY/AL/PET; CPP/NY/AL/PET.
Fully Automatic Double Sachet Form Fill Seal Washing Powder Chemical High Speed Horizontal multifunctional packaging machine

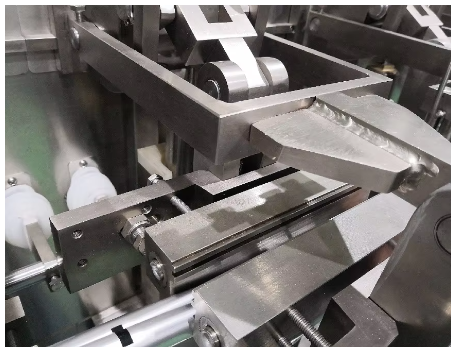

Servo Advance System
1.Easy computerized specification change2.Stable pouch advance with less deviation
3.Big torquemoment of pouch advance, suitable for big volume
Fully Automatic Double Sachet Form Fill Seal Washing Powder Chemical High Speed Horizontal multifunctional packaging machine

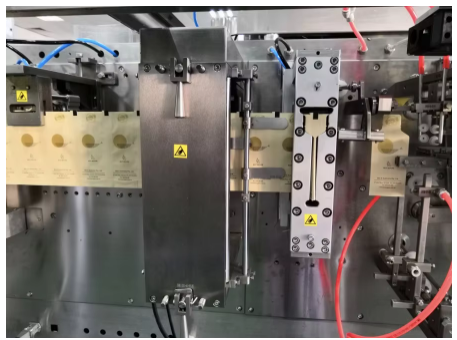

Zipper Function
1.Independent zipper unwind device
2.Stable zipper tensile force control
3.Even zipper seal
Pouch Sample:
Fully Automatic Double Sachet Form Fill Seal Washing Powder Chemical High Speed Horizontal multifunctional packaging machine
