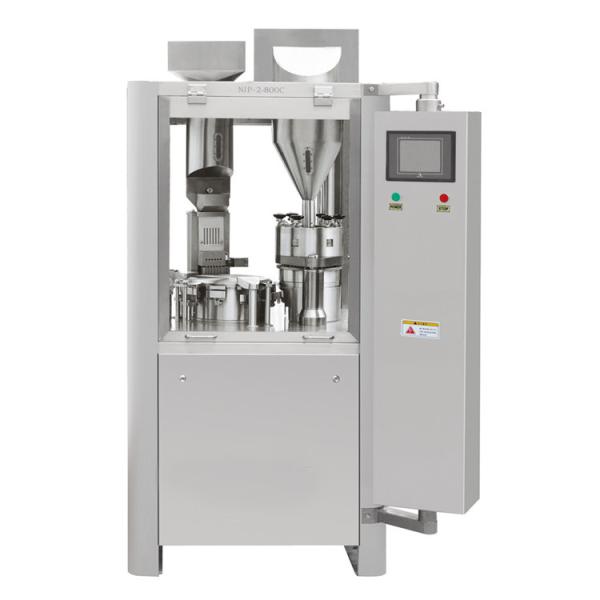

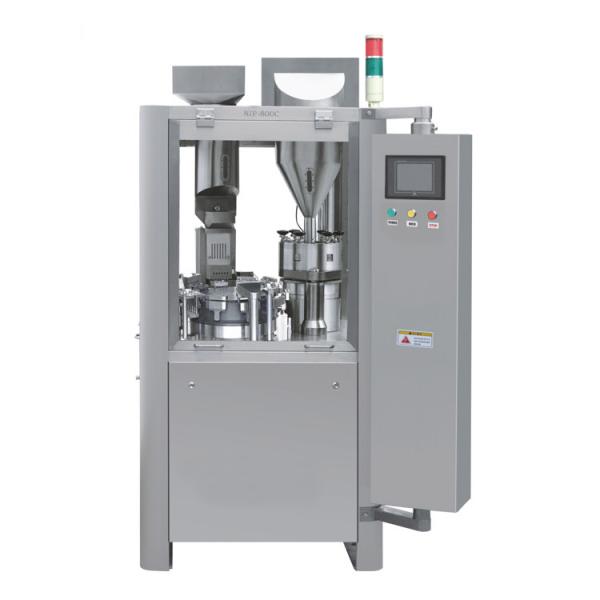

Touch Screen 2000PCS/Min SS304 Capsule Filling Machine
Touch Screen 2000PCS/Min SS304 Capsule Filling Machine
Touch Screen 2000PCS/Min SS304 Capsule Filling Machine
Touch Screen 2000PCS/Min SS304 Capsule Filling Machine
Touch Screen 2000PCS/Min SS304 Capsule Filling Machine
Touch Screen 2000PCS/Min SS304 Capsule Filling Machine
Touch Screen 2000PCS/Min SS304 Capsule Filling Machine
Touch Screen 2000PCS/Min SS304 Capsule Filling Machine
Touch Screen 2000PCS/Min SS304 Capsule Filling Machine
Touch Screen 2000PCS/Min SS304 Capsule Filling Machine
Specifications
Brand Name :
LTPM CHINA
Model Number :
NJP-2000
Certification :
CE
Place of Origin :
china
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
30% TT as deposit and 70% before shipping
Supply Ability :
25 sets/Month
Delivery Time :
In 25 days after receiving the deposit
Packaging Details :
Wooden Case
Capacity :
30set/month,2000capsules/min
Item Name :
Capsule Filling Machine
Operation :
Touch Screen
Service :
whole machine life service
Material Consist :
Stainless Steel 304 and 316L
Description

The NJP series capsule filling machine is an upgraded version of semi-automatic capsule filling machine. It mainly used for filling powdery and granular materials to empty capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#).Our NJP capsule filling machine can automatically finish the production process including sowing, capsule separating, filling, locking, unqualified capsule rejected and finished products output. It has the advantages of accurate loading, stable operation and no dust.
It meets the GMP requirements.

Touch Screen 2000PCS/Min SS304 Capsule Filling Machine

Technical Parameters

MODEL 2000
Output(pcs./min) 2000
No. of segment bores 18
Applicable Capsule Size 00#-5#
Applicable Filling Object Powder and granular ( Pellets is available)
Operation System Touch screen (Button operation is available)
Dosage Different Dosages are available by changing dosage disk
Power Supply Customerized
Total Power 7.62KW
Overall Weight 1800Kg
Overall Dimension(mm) 1375×1345×2000(+200)mm

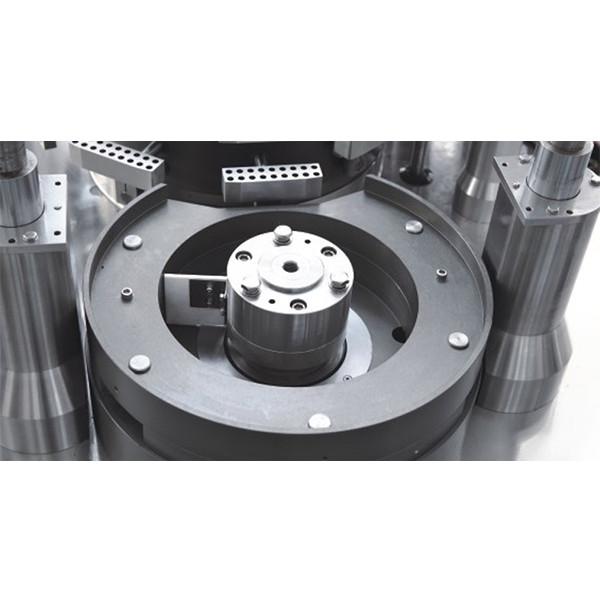

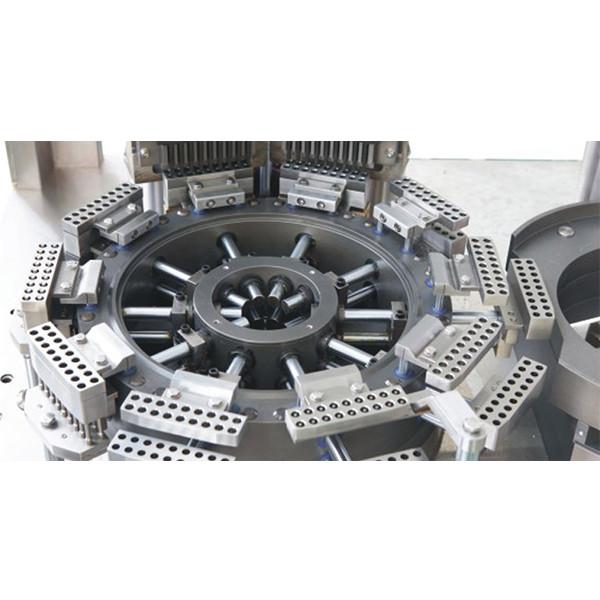

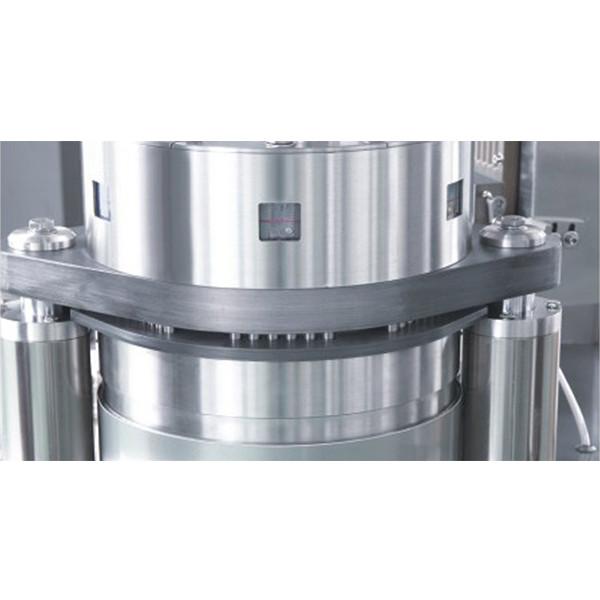

Automatic Capsule Filling Machine is described station by station :

Touch Screen 2000PCS/Min SS304 Capsule Filling Machine

Functional Parameter

3.1 The capsules are fed to the segment in sequence; the cap and body are separated by means of a vacuum suction.

3.2 Transporting

3.3 Cap and body are separated and prepared for filling

3.4 Powder column filling

3.5 Optional pellet and tablet filling

3.6 Eject the faulty capsules

3.7 Transporting

3.8 Joining of capsule body and cap

3.9 Eject finished product

3.10 Clean the segments

Touch Screen 2000PCS/Min SS304 Capsule Filling Machine

Touch Screen 2000PCS/Min SS304 Capsule Filling Machine

Touch Screen 2000PCS/Min SS304 Capsule Filling Machine
