ZP Series Candy Salt Rotary Tablet Press Machine / Tablet Making Machine
ZP Series Candy Salt Rotary Tablet Press Machine / Tablet Making Machine
ZP Series Candy Salt Rotary Tablet Press Machine / Tablet Making Machine
ZP Series Candy Salt Rotary Tablet Press Machine / Tablet Making Machine
ZP Series Candy Salt Rotary Tablet Press Machine / Tablet Making Machine
ZP Series Candy Salt Rotary Tablet Press Machine / Tablet Making Machine
Specifications
Brand Name :
LEADTOP
Model Number :
ZP-31
Certification :
CE certification
Place of Origin :
China
MOQ :
1 set
Price :
discuss personally
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 days/month
Delivery Time :
25days
Packaging Details :
wooden box
Model :
ZP-31
capacity :
75,000tablets/hour
Power Supply :
380V 50Hz three phase (depend on your requirement)
Max. Thickness :
9mm
Power :
4Kw
name :
rotary tablet press machine
Description

ZP Series Candy Salt Rotary Tablet Press Machine Tablet Making Machine

Product Application

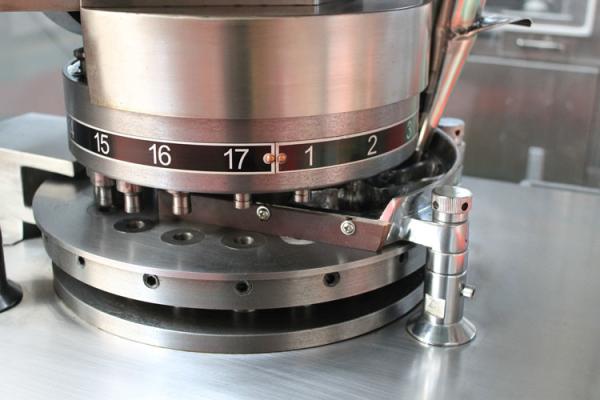

Rotary tablet press machine is tablet press type, it can automatically rotate and continually press. It presses granular raw materials into tablets.
This machine is particularly applicable for trial manufacture in laboratory as well as the small-scale production.
It meets GMP standard, its tablet pressing chamber is completely separated from the driving mechanism, the parts contacting the drug are made of stainless steel or their surfaces are given the special treatment, which is featured with non toxicity and corrosion prevention.
Its tablet pressing chamber is enclosed by the transparent organic glass to prevent the pollution. Every surface is smooth, easy for treatment

Main Features
1) The outside part of the machine is fully-enclosed, and it is made of stainless steel, meeting the GMP requirement
2) It has transparent windows, so that press condition can be observed clearly and the windows can be opened. Cleaning and maintenance are easier
3) The machine can press not only round tablets, but also different geometrical shape tablets, double-layered and annular tablets; the tablets may have the impressed letters on both sides
4) All the controllers and devices are located in one side of the machine, so that it can be easier to operate
5)An overload protection to avoid the damage of the punches and apparatus, when overload occurs
6) The machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, preventing cross pollution

Technical Data

Stations (unit) 31 Thickness of the die (mm) 22
Maximum compression (KN) 80 The diameter of the circle of the central pitch of upper &lower punches on the turret 320mm
Max. Diameter of tablet to be produced (mm) 25 Rotary speed of the turret (rpm) 14-35
Max. Filling depth (mm) 20 Capacity of the tablets 60,000-100,000pcs
Max. Thickness of tablet (mm) 12 Area to occupy (mm2 ) 2230x2250

ZP Series Candy Salt Rotary Tablet Press Machine / Tablet Making Machine
