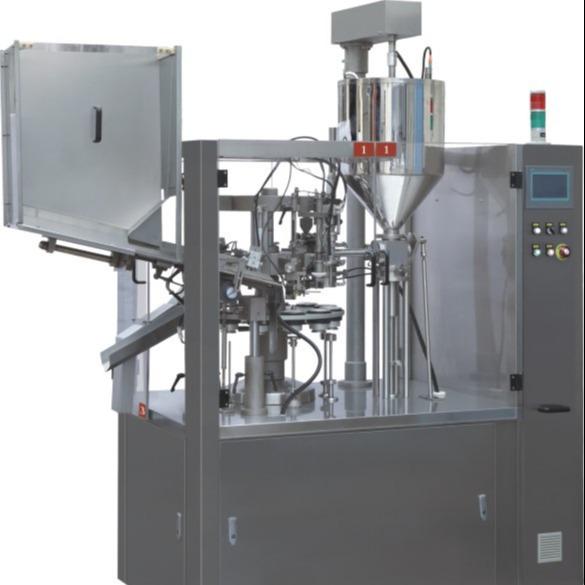

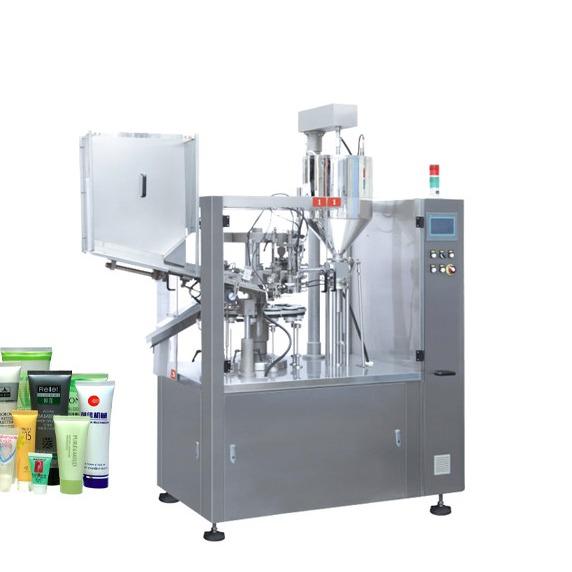

Plastic Hand Cream 0.6MPa Tube Filling Sealing Machine
Plastic Hand Cream 0.6MPa Tube Filling Sealing Machine
Plastic Hand Cream 0.6MPa Tube Filling Sealing Machine
Plastic Hand Cream 0.6MPa Tube Filling Sealing Machine
Specifications
Brand Name :
LTPM CHINA
Model Number :
LTRG-100A
Certification :
CE/ISO/GMP
Place of Origin :
China
MOQ :
1 Set
Price :
USD42,000.00/Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
Wooden case with strong seaworthy packing suitable for exporting
Main Machine Landing Area :
3m2
Working Area :
2.5㎡
Whole Machine :
2.5*1.2*2.4M(L×W×H)
Case Body Material :
304
Main Motor :
Main Motor
Operation Speed :
60-75
Filling Range :
Plastic tube 3-240ml
Suitable Tube Length :
210mm
Suitable Tube Diameter :
12.5-50mm
Working Pressure :
0.5-0.6MPa
Filling Material :
Ointment,Cream,Glue,Oil,etc.
Description

Product Specify

This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for aluminum tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.

Main technical parameters

  • Machine case body
Case Body Material 304
Opening Mode of Safety Guard Handle Door
Safety Guard Material Organic Glass
Frame Below Platform Stainless Steel
Case Body Shape Square-shape
  • Power, Main Motor etc.
Power Supply 50Hz/380V 3P
Main Motor 1.5KW
Hot Air Generator 3KW
Jacket barrel heating power 3 KW Optional,needs extra cost
Jacket barrel blending power 0.18 KW Optional,needs extra cost
  • Production Capacity
Operation Speed 60-75/min/max
Filling Range Plastic tube 3-240ml
Suitable Tube Length 210mm
Suitable Tube Diameter 12.5-50mm

Plastic Hand Cream 0.6MPa Tube Filling Sealing Machine

Features:
1. Automatic filling of liquid or paste, sealing tubes, batch number printing, include manufacture date.

  • 2. Features of rationalstruction, complete function,easy operation, accurate filling, stable running, as well as low noise.
  • 3. The body is made of 304 stainless steel

Machine Specific Photo:

Tube feeding

Plastic Hand Cream 0.6MPa Tube Filling Sealing Machine

Print Registering and Filling(Plastic Tube):

Plastic Hand Cream 0.6MPa Tube Filling Sealing Machine

Aluminum Tube:Sealing

Plastic Hand Cream 0.6MPa Tube Filling Sealing Machine

The product we packed:

Plastic Hand Cream 0.6MPa Tube Filling Sealing Machine

If you are interested in the above machines, click on the right and send us a message! I can recommend suitable products and production plans for you.
