Servo Control Automatic Tube Filler And Sealer With External Reversal Feeding System
Servo Control Automatic Tube Filler And Sealer With External Reversal Feeding System
Servo Control Automatic Tube Filler And Sealer With External Reversal Feeding System
Servo Control Automatic Tube Filler And Sealer With External Reversal Feeding System
Specifications
Brand Name :
LEADTOP
Model Number :
LTRG-60
Certification :
CE certification
Place of Origin :
China
MOQ :
1 set
Price :
discuss personally
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 days/month
Delivery Time :
25days
Packaging Details :
wooden box
Model :
LTRG-60
Weight :
1100kg
Power :
4kw (380V/220V 50Hz)
Overall Dimension(mm) :
1600*1640*1900mm (L*W*H)
Air Supply :
0.55-0.65Mpa
Product Capacity (Pcs/min) :
30-50 0.1m3/min
Description

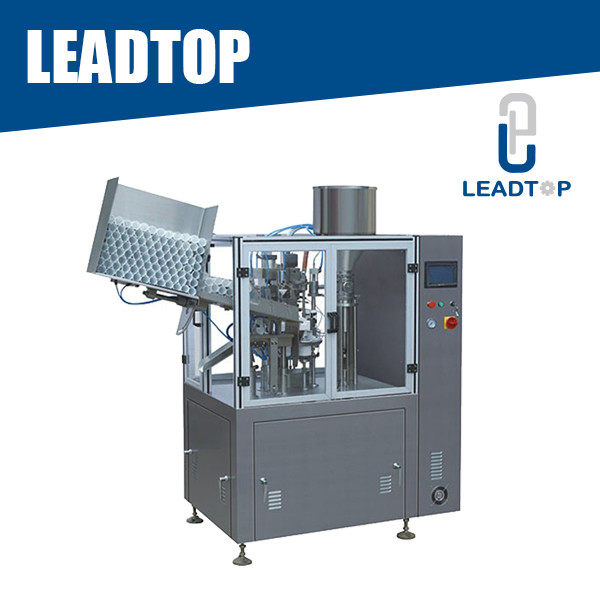

LTRG-60 Semi Automatic Plastic Tube Filling and Sealing Machine

Summary:

This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for aluminum tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.

Main features:

  1. With 12 stations and matching with manipulator, the machine is able to meet different type of tail folding, sealing requirements of Alu tube. It is a multi-purpose machine.
  2. Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).
  3. Servo control makes it precise and convenient to adjust the filling amount by touch screen.
  4. According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.

Technical parameters:

Model LTRG-60
Tube Material Plastic tube, laminated tube
Tube Diameter Φ5mm-Φ60mm
Tube Length 50-300mm (customizable)
Filling Volume 5-250ml/piece (Adjustable)
Power 4kw (380V/220V 50Hz)
Overall Dimension(mm) 1600*1640*1900mm (L*W*H)
Machine Weight (kg)

1100kg
