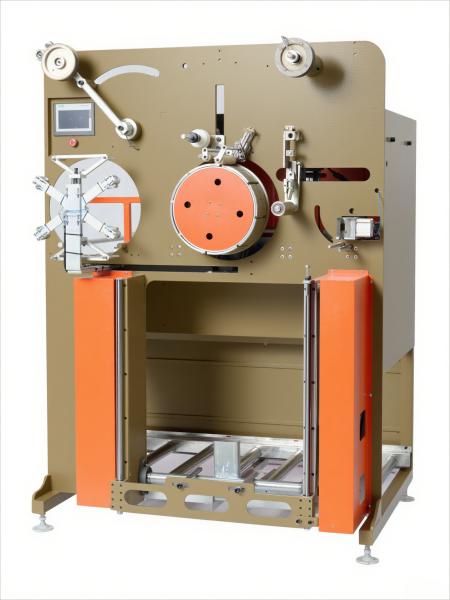

Automatic Tape Winding Machine 8MM - 32MM Pneumatic Pet Strapping Machine
Automatic Tape Winding Machine 8MM - 32MM Pneumatic Pet Strapping Machine
Specifications
Price :
7000 - 14000USD 1 set
Place of Origin :
china
Brand Name :
United Win
MOQ :
1 set
Packaging Details :
Wooden Case
Delivery Time :
30days
place of origin :
Guangdong, China
brand name :
Yicheng
voltage :
380V
dimension(l*w*h) :
1600mm * 1350mm * 2260mm
warranty :
1 Year
Weight (KG) :
910
Product name :
Automatic Strap Winder
Maximum winding diameter :
800MM
Rewind-up range :
8MM-32MM
Length of paper tube :
150MM-190MM
Input power :
380V
Maximum power :
2.5 KW
Maximum operating pressure of the system :
0.8MPa
Minimum operating pressure of the system :
0.6MPa
Machine color :
Standard color (7035 Grey + Blue)
Description
910KG Weight Fully Automatic Packing Tape Winding Machine with 8MM-32MM Rewind-up Range
Products Description:

The 70kg fully automatic rewinding machine is a PET strapping rewinding machine with dual rewinding modes of weight and meter, with a maximum rewinding diameter of 720mm. The rewinding mode can be achieved with or without a paper core, achieving multiple uses for one machine. The rewinding machine's working state can be switched according to production needs. By using a swing arm to achieve constant tension winding, as well as a one key inflatable shaft winding and a side constant tension adhesive tape winding, the winding surface and side winding are ensured to be neat, with no visible turning marks or uniform winding patterns on the side, and no overlapping phenomenon. Realize one person operating multiple machines, reduce manual labor, and lower production costs.

Main specifications and parameters
Appearance and dimensions 1600mm * 1350mm * 2260mm Maximum winding diameter 800MM
Machine weight About 910KG Rewind-up range 8MM-32MM
Input power 380V Length of paper tube 150MM-190MM
Maximum power 2.5 KW Equipment model PETFA-70
Maximum operating pressure of the system 0.8MPa Minimum operating pressure of the system 0.6MPa
