Automatic Lashing Strap Winder 380V 150MM - 190MM Paper Tube Pet Strap Extrusion Line
Automatic Lashing Strap Winder 380V 150MM - 190MM Paper Tube Pet Strap Extrusion Line
Automatic Lashing Strap Winder 380V 150MM - 190MM Paper Tube Pet Strap Extrusion Line
Automatic Lashing Strap Winder 380V 150MM - 190MM Paper Tube Pet Strap Extrusion Line
Automatic Lashing Strap Winder 380V 150MM - 190MM Paper Tube Pet Strap Extrusion Line
Automatic Lashing Strap Winder 380V 150MM - 190MM Paper Tube Pet Strap Extrusion Line
Automatic Lashing Strap Winder 380V 150MM - 190MM Paper Tube Pet Strap Extrusion Line
Automatic Lashing Strap Winder 380V 150MM - 190MM Paper Tube Pet Strap Extrusion Line
Automatic Lashing Strap Winder 380V 150MM - 190MM Paper Tube Pet Strap Extrusion Line
Automatic Lashing Strap Winder 380V 150MM - 190MM Paper Tube Pet Strap Extrusion Line
Specifications
Price :
7000 - 14000USD 1 set
Place of Origin :
china
Brand Name :
United Win
MOQ :
1 set
Packaging Details :
Wooden Case
Delivery Time :
30days
Product name :
PET Strapping Band Machine
dimension(l*w*h) :
1500.3mm * 1200mm * 2100mm
Weight (KG) :
790.5
Maximum winding diameter :
800MM
Rewind-up range :
8.6MM-32MM
Length of paper tube :
150MM-190MM
Input power :
380V
Maximum power :
2.5 KW
Maximum operating pressure of the system :
0.8MPa
Minimum operating pressure of the system :
0.6MPa
Description

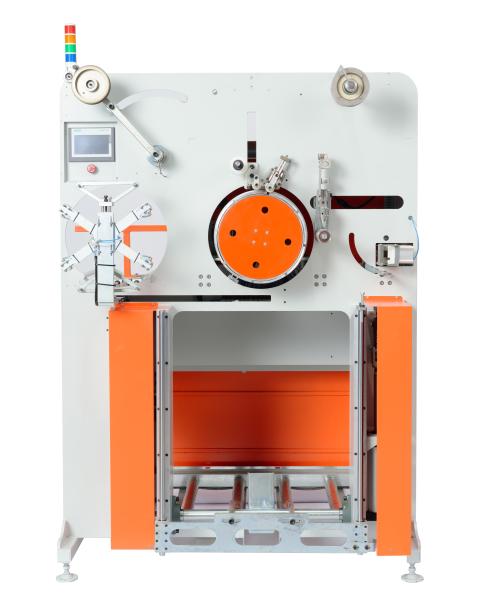

Automatic Lashing Strap Winder 380V 150MM-190MM Paper Tube Motor
Products Description

The Automatic Lashing Strap Winder 380V 150MM -190MM Paper Tube Motor is an advanced, high-efficiency winding machine engineered for professional lashing strap production and packaging operations. Built to support 150MM to 190MM paper tube cores, this system is ideal for manufacturers and converters seeking consistent, high-speed, and precision-controlled strap coiling in medium to heavy-duty industrial environments.

Powered by a 380V electric motor, the machine delivers stable torque and uninterrupted performance during long production cycles. Its automatic control system is integrated with a PLC and HMI interface, allowing operators to easily configure parameters such as winding speed, strap tension, coil diameter, and tube dimensions. These intelligent features optimize the winding process and reduce manual workload, improving line efficiency and output consistency.

Designed for woven and composite lashing straps, the machine ensures tight, accurate winding without strap slippage, overlapping, or coil deformation. The servo-driven traverse system delivers precise side-to-side movement, ensuring even distribution of the strap across the core. This results in uniform, compact coils suitable for direct use in strapping systems or for commercial sale.

The machine supports a range of lashing strap widths and thicknesses, making it highly adaptable for different customer specifications and packaging standards. Its sturdy frame construction, wear-resistant components, and energy-efficient motor design make it well-suited for continuous industrial operation across a wide range of sectors including logistics, cargo securing, transportation, and manufacturing.

Automatic Lashing Strap Winder 380V 150MM - 190MM Paper Tube Pet Strap Extrusion Line Automatic Lashing Strap Winder 380V 150MM - 190MM Paper Tube Pet Strap Extrusion Line Automatic Lashing Strap Winder 380V 150MM - 190MM Paper Tube Pet Strap Extrusion Line Automatic Lashing Strap Winder 380V 150MM - 190MM Paper Tube Pet Strap Extrusion Line
Main specifications and parameters
Appearance and dimensions 1500mm * 1200mm * 2100mm Maximum winding diameter 800MM
Machine weight About 790KG Rewind-up range 8MM-32MM
Input power 380V Length of paper tube 150MM-190MM
Maximum power 2.5 KW Equipment model PETFA-25
Maximum operating pressure of the system 0.8MPa Minimum operating pressure of the system 0.6MPa
