90kg/H - 150kg/H Strap Roll Machine 120KW Automated Packaging Solution Energy Saving
90kg/H - 150kg/H Strap Roll Machine 120KW Automated Packaging Solution Energy Saving
90kg/H - 150kg/H Strap Roll Machine 120KW Automated Packaging Solution Energy Saving
90kg/H - 150kg/H Strap Roll Machine 120KW Automated Packaging Solution Energy Saving
Specifications
Brand Name :
United Win
Model Number :
PP-110-EX1IN4
Place of Origin :
china
MOQ :
1 set
Price :
7000 - 14000USD 1 set
Delivery Time :
30days
Packaging Details :
Wooden Case
Product name :
PP Strap Band Extrusion Line
Applicable raw materials :
PP granules/recycled materials
voltage :
380V
dimension(l*w*h) :
45.7m×2.0m×4.0m
Total Power :
120.7KW
Number of strips produced :
2.9-4.7
Description
90kg/H - 150kg/H Strap Roll Machine 120KW Automated Packaging Solution Energy Saving

The 90kg/H - 150kg/H Strap Roll Machine (120KW) is an energy-efficient automated packaging solution designed for producing PP and PET strapping rolls with superior consistency, tensile strength, and durability. Built for modern industrial packaging lines, this machine integrates advanced extrusion technology, intelligent control systems, and optimized power efficiency, ensuring stable production and reduced operating costs.

Advanced Technical Process

This fully automated strap roll production line includes all key processes — feeding, melting, stretching, embossing, cooling, and automatic winding — within a streamlined system. The 120KW high-performance main motor provides strong torque and precise speed control, maintaining a steady production capacity of 90kg/H to 150kg/H.

The precision screw and die-head design ensures uniform material flow and excellent melt quality, resulting in straps with consistent width, thickness, and tensile properties. Equipped with an intelligent PLC control system, the machine allows real-time adjustment of key parameters like extrusion temperature, stretching ratio, and tension balance, guaranteeing stable output and minimal material waste.

The integrated energy-saving heating system and optimized cooling channel reduce power consumption while enhancing product crystallization and surface finish. Combined with an automatic winding unit, it delivers perfectly rolled, smooth, and ready-to-use strapping coils.

Main Specifications and Parameters
Appearance and dimensions 45m*2.0m*4.0m
Applicable raw materials PP granules/recycled materials
Input power 380V
Equipment model PP-110-EX1IN4
Total Power 120KW
Number of strips produced 2-4
90kg/H - 150kg/H Strap Roll Machine 120KW Automated Packaging Solution Energy Saving

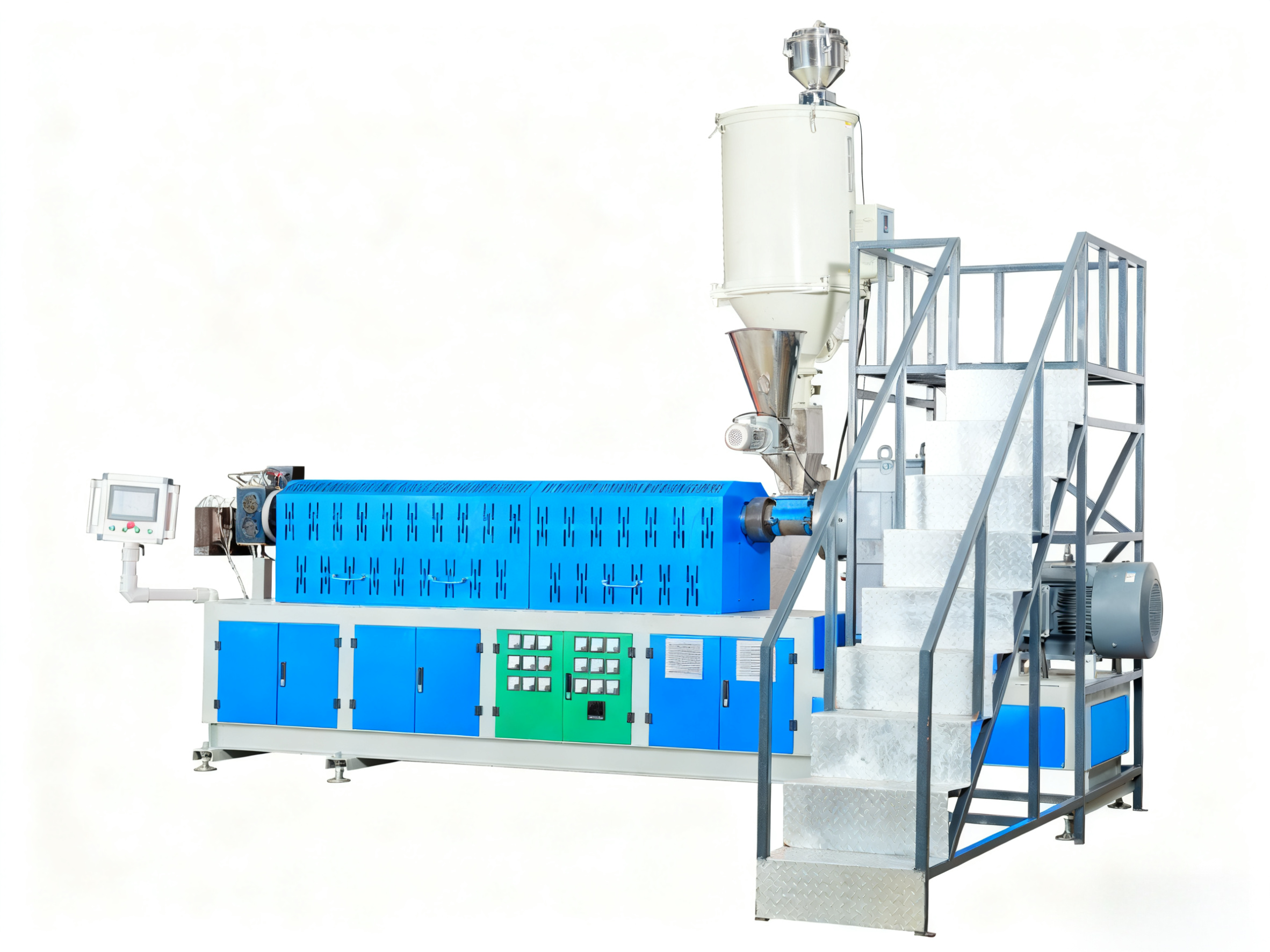

Strap Roll Machine in operation
90kg/H - 150kg/H Strap Roll Machine 120KW Automated Packaging Solution Energy Saving

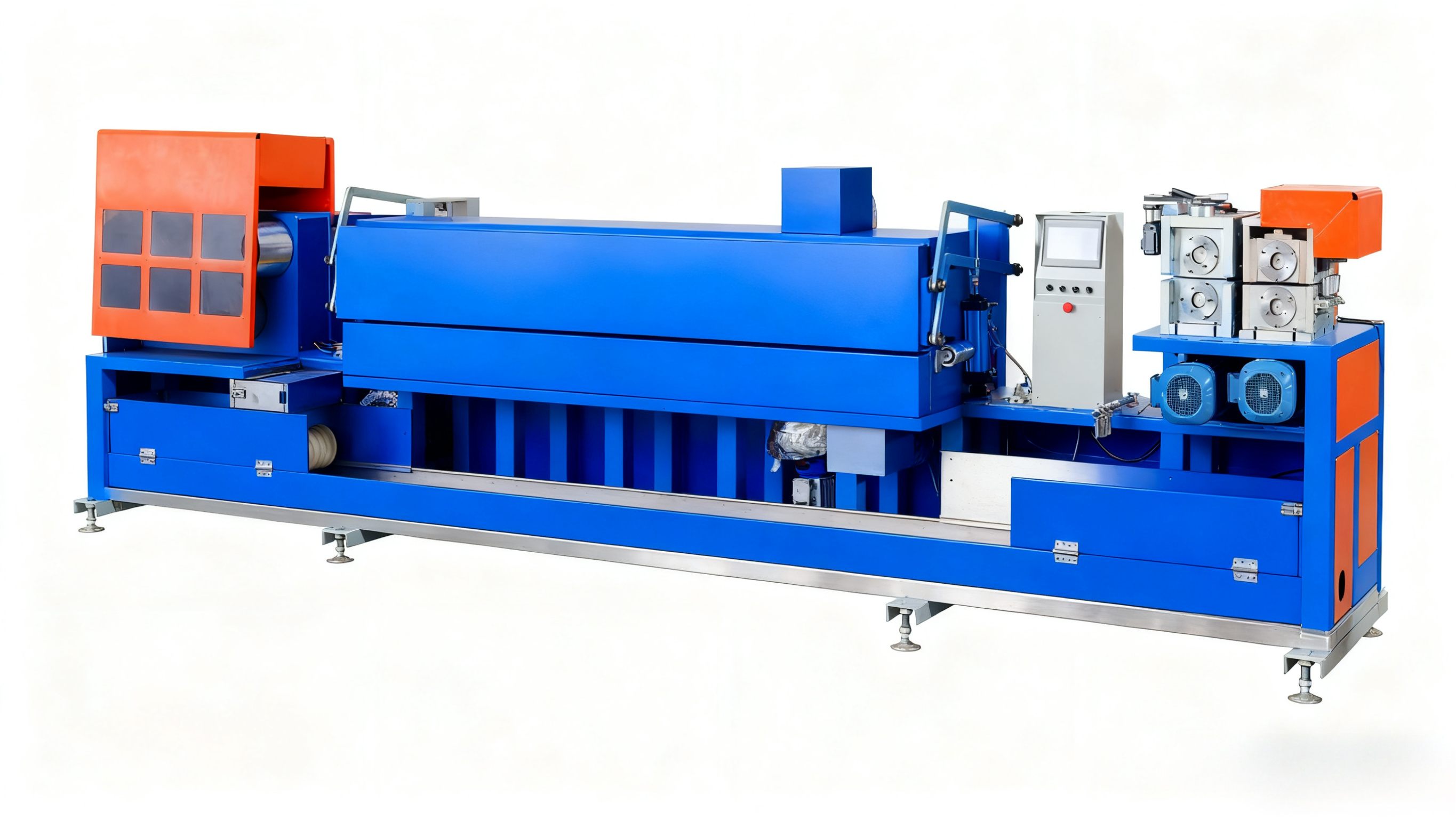

Technical diagram of the Strap Roll Machine
