Petrolatum tape, also known as wax tape or anti-corrosion tape, is commonly used for the protection of oil storage tanks against corrosion. It is a non-hardening, self-healing tape that provides a barrier to moisture and oxygen, preventing corrosion on the tank surface.

Petrolatum tape is composed of a flexible backing material, typically made of polyethylene or polyvinyl chloride (PVC), coated with a thick layer of petrolatum or petroleum-based wax. This coating acts as a barrier, sealing out moisture and preventing the corrosion process from occurring.

To apply petrolatum tape for corrosion protection on oil storage tanks, the following steps are typically followed:

1. Surface Preparation: The tank surface should be thoroughly cleaned and free from any dirt, rust, or loose paint. It is important to ensure a clean and smooth surface for proper adhesion of the tape.

2. Tape Application: The petrolatum tape is wrapped around the tank, overlapping each layer by approximately 50%. It is important to apply sufficient tension to ensure a tight fit and complete coverage of the tank surface. The tape can be easily molded to irregular shapes and contours of the tank.

3. Mastic Filler: In areas with protrusions, welds, or other irregularities, a mastic filler may be applied before wrapping the tape. The mastic filler helps to provide additional protection and ensure a smooth surface for the tape application.

4. Overwrapping: After the initial layer of petrolatum tape is applied, an additional layer of PVC or polyethylene tape may be applied as an overwrap. This overwrap provides added mechanical protection and enhances the overall durability of the corrosion protection system.

Petrolatum tape is known for its long-term effectiveness in protecting oil storage tanks against corrosion. It is resistant to water, salt, and various chemicals, making it suitable for both above-ground and underground tanks. Additionally, it is easy to install and requires minimal maintenance.

It is important to note that proper surface preparation and application techniques are crucial for the effective performance of petrolatum tape. Regular inspection and maintenance should also be conducted to ensure the integrity of the tape system and address any potential issues promptly.

Uses

For long-life corrosion protection,

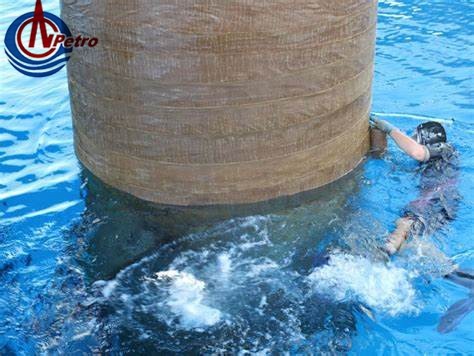

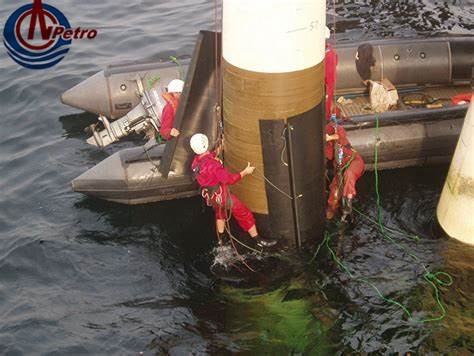

sealing and waterproofing of atmospheric buried and submerged metal surfaces.

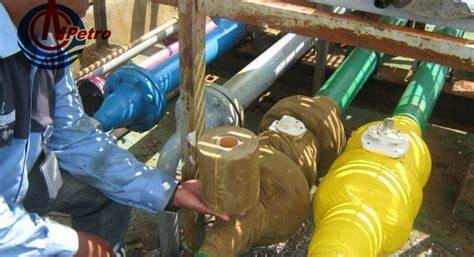

High degree of conformability

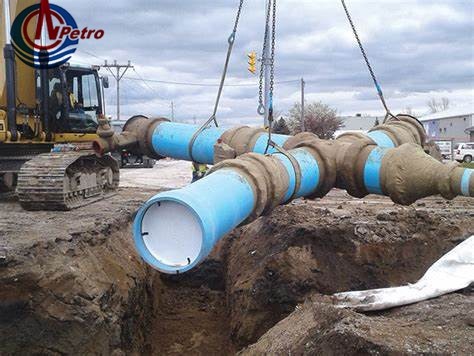

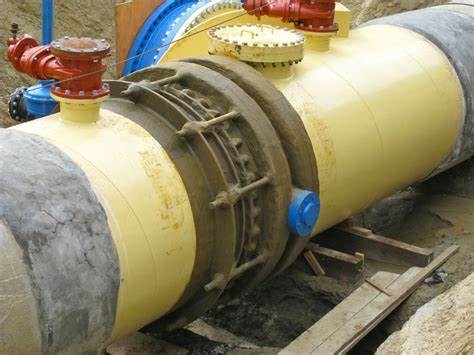

application over irregular surface profiles including gas utility, sewer, potable water, mining,

Application

55% overlap for all applications,

For vertical applications the tape shall begin at the bottom and proceed up – providing a“weatherboard” overlap.

“flat wrapped” when space is too restricted or confined to apply in the preferred spiral manner, with the overlap on the topside of the pipe –providing a “weatherboard” effect.At the completion of each roll, smooth the overlaps by hand. Maintain a 100mm overlap when overlapping one roll with the end of a new roll.

Properties

Package

Tape Width	㎡/Roll	Rolls/Carton
50mm	0.50	36
75mm	0.75	24
100mm	1.0	18
150mm	1.5	12
200mm	2.0	8
300mm	3.0	6
