Automatic Water Bottle PET Blowing Machine 5L YCQ-5L-2 1500BPH
Automatic Water Bottle PET Blowing Machine 5L YCQ-5L-2 1500BPH
Automatic Water Bottle PET Blowing Machine 5L YCQ-5L-2 1500BPH
Automatic Water Bottle PET Blowing Machine 5L YCQ-5L-2 1500BPH
Automatic Water Bottle PET Blowing Machine 5L YCQ-5L-2 1500BPH
Automatic Water Bottle PET Blowing Machine 5L YCQ-5L-2 1500BPH
Automatic Water Bottle PET Blowing Machine 5L YCQ-5L-2 1500BPH
Automatic Water Bottle PET Blowing Machine 5L YCQ-5L-2 1500BPH
Automatic Water Bottle PET Blowing Machine 5L YCQ-5L-2 1500BPH
Automatic Water Bottle PET Blowing Machine 5L YCQ-5L-2 1500BPH
Automatic Water Bottle PET Blowing Machine 5L YCQ-5L-2 1500BPH
Automatic Water Bottle PET Blowing Machine 5L YCQ-5L-2 1500BPH
Specifications
Brand Name :
Eceng
Model Number :
YCQ-5L-2
Certification :
CE&ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 Set/Sets per Month
Delivery Time :
30days
Packaging Details :
Wooden package
Plastic Processed :
PET
Hollow part volume :
5L
Automation :
Automatic
Warranty :
1 Year
Key Selling Points :
Automatic
Warranty of core components :
1 Year
Cavity :
2
Output :
1500BPH
Description

Eceng Professional Manufacture Water Bottle Blowing Machine YCQ-5L-2

technical parametre-- 5L pet bottle machine

Item

YCQ-5L-2E

Bottle type specification

Cavity

2

Theory output

1500

Max.volume

5L

Bottle mouth maximum overall DIdiameter

150mm

Bottle biggest diameter

180mm

Bottle maximum height

400mm

Power specifications

Light tube quantity

32pcs

Light tube power

1.5KW

Maximum heating power

48KW

All electric machine installation

51KW

Actual consumption

35.7KW

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

3400Ltr/min

Forzen water specification

Work pressure

5-6 kg/cm2

Temperature range

10℃

Consumption

6000kcal/hr

Forzen water flow

50L/min

Machine specification

Size of the machine

4.7x1.6x1.9

Weight of the machine

3ton

YCQ-5L-2,2 cavity 5-liter automatic bottle blowing machine is a machine used for automatically producing 5-liter pure water barrels and wide bottles. This model can produce up to 5 liters of bottles. This model has the characteristics of high automation and intelligence, stable and reliable machine performance, simple structure, high production efficiency, low energy consumption, and no intermediate pollution in the product. It is widely used in the production of food oil, bottled water, and wide mouth food containers.

Automatic Water Bottle PET Blowing Machine 5L YCQ-5L-2 1500BPH

Automatic Water Bottle PET Blowing Machine 5L YCQ-5L-2 1500BPH

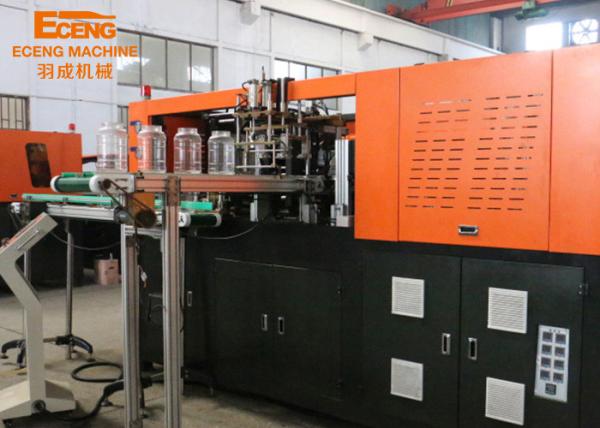

photo show-- 5L pet bottla machine

Automatic Water Bottle PET Blowing Machine 5L YCQ-5L-2 1500BPH

company introduction

Automatic Water Bottle PET Blowing Machine 5L YCQ-5L-2 1500BPH

Automatic Water Bottle PET Blowing Machine 5L YCQ-5L-2 1500BPH
