Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Specifications
Brand Name :
Eceng
Model Number :
K6
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Set/Sets per Year
Delivery Time :
60days
Packaging Details :
standard export wooden case or according to your requirements
Bottle Volume(ml) :
2000 ml
Application :
bottle
Blow Moulding Type :
Stretch Blow Moulding
PLC Brand :
DELTA
Applicable Industries :
Manufacturing Plant
output :
10000
Power(W) :
50KW
Port :
Shanghai
Description
Eceng K6 High speed plastic juice beverage bottle making machine blow molding machine for saleEceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
specification
Model K6
Bottle type specification
Cavity
6
Max.volume
2L
Bottle mouth maximum overall diameter
28-30mm
Bottle biggest diameter
100mm
Bottle maximum height
330mm
Capacity specification
Theory output
9000~12000BPH
Bottle type volume
500ML
Bottle type weight
17g
Bottle type
Round
Power specification
Light tube quantity
32pcs
Light tube power
1.25KW
Maximum heating power
40KW
All electric machine installation
49KW
Actual consumption
30%--60%
Air pressure specification
Work pressure
5-6kg/cm2
Blow bottle pressure
25-45kg/cm2
Higher -pressure gas consumption
8000Ltr/min
Air pressure specification
Work pressure
5-6 kg/cm2
Temperature range
10℃
Consumption
8000kcal/hr
Forzen water flow
120L/min
Machine specification
Machine size
5.5x1.8x1.9
Machine weight
6.1ton

Eceng k series fully electric pet bottle blowing machine, K6 with 6 cavities for high speed plastic bottle making blowing is a remarkable advancement in the field of packaging.This machine represents a significant improvement in efficiency and speed, as it can produce six bottles in one cycle. This technology will undoubtedly lead to a significant increase in production output while saving on production costs.
The benefits of using fully electric pet bottle blowing machines,Unlike traditional machines that rely on hydraulic systems, fully electric machines use energy-efficient electric motors, which translates to lower energy consumption costs. This means that manufacturers can produce more high-quality bottles while reducing their carbon footprint.

Additionally, this fully electric pet bottle blowing machine is ideal for producing high-quality plastic bottles quickly, making it an excellent choice for businesses that require fast product turnaround times. With a production speed of up to 12000 bottles per hour, the machine can cater to the needs of large-scale manufacturers. The six cavities ensure that the machine can produce enough bottles to meet the rising demand from customers.

Overall, the fully electric pet bottle blowing machine with six cavities for high-speed plastic bottle making blowing is a significant innovation that will undoubtedly revolutionize the industry. Its efficiency, speed, and energy-saving capabilities will help manufacturers increase production without compromising quality.

Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice

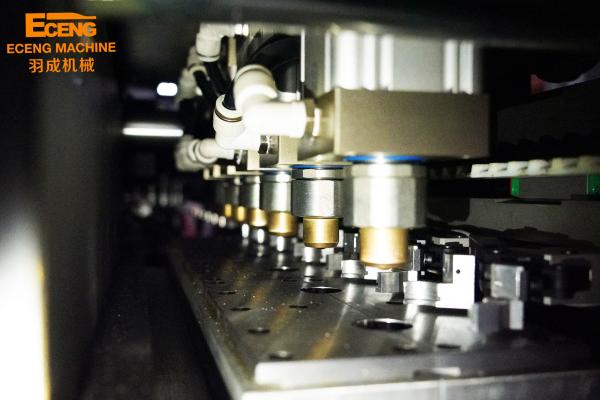

Detailed Images
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
K linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.
Kseries linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
blowing mould
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Company Introduction
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Packing&Shipping
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
Eceng K6 Beverage Bottle Blow Molding Machine High Speed Plastic Juice
