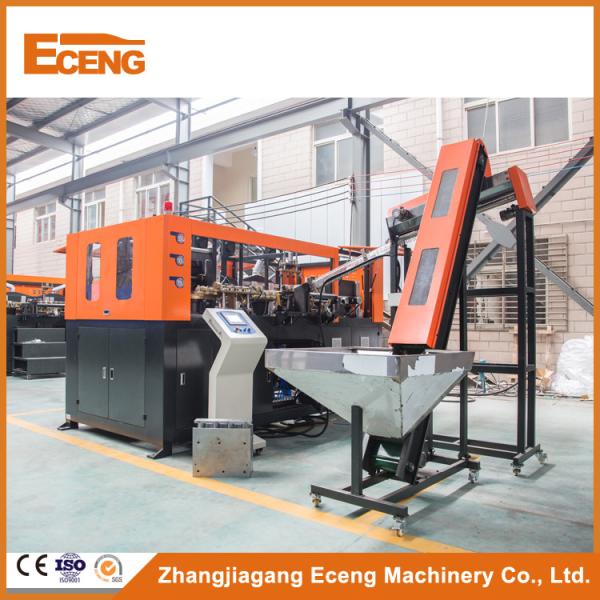

48KW Pet Bottle Making Machine With High Pressure Blowing Exhaust Recovery System
48KW Pet Bottle Making Machine With High Pressure Blowing Exhaust Recovery System
48KW Pet Bottle Making Machine With High Pressure Blowing Exhaust Recovery System
48KW Pet Bottle Making Machine With High Pressure Blowing Exhaust Recovery System
48KW Pet Bottle Making Machine With High Pressure Blowing Exhaust Recovery System
48KW Pet Bottle Making Machine With High Pressure Blowing Exhaust Recovery System
48KW Pet Bottle Making Machine With High Pressure Blowing Exhaust Recovery System
48KW Pet Bottle Making Machine With High Pressure Blowing Exhaust Recovery System
Specifications
Brand Name :
Eceng
Model Number :
YCQ-2L-6
Certification :
CE&SGS&ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10sets per month
Delivery Time :
30 working days
Packaging Details :
Film pack
cavity :
6
color :
orange
PLC :
Mitusubishi
cylinder :
SMC
power :
48KW
warranty :
1 year
Description

Plastic making 1500ml pet bottle blowing machine

What is technical parameter of our water bottle production line?

Bottle type specification

 cavity 6
theory output (PCS/HR) 7000-8000
Max. volume (L) 2L
Bottle mouth maximum overall diameter (mm) 28-38mm
Bottle biggest diameter 100mm
Bottle maximum height 330mm

Power specifications

 Light tube quantity 32pcs
Light tube power 1.25kw
Maximum heating power 40kw
All electric machine installation 43kw
Actual consumption 30.1kw

Air pressure specification

 Work pressure 7-9kg/cm2
Low-pressure gas consumption 1600Ltr/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 4000 Ltr/min

Frozen water specification

 Work pressure 5-6 kg/cm2
Temperature range 10
Consumption 8000kcal/hr
Frozen water flow 88Ltr/min

Machine specification

 Size of the machine 6.5x1.5x1.9 (m)
Weight of the machine 4ton

What is the feature for our water bottle production line?
  1. Automatic perform input and ready bottle output system.
  2. Machine adopt with the overall structure of super-standard anti-vibration design, high-speed operation state of the machine will shake down to a minimum.
  3. Machine adopts modular assembly method, greatly decrease the local amendments due to technological improvements when the machine is on processing.
  4. The structure of machine oven adopt the international most advanced energy-saving technology of infrared radiation heating, temperature control with automatic negative feedback, closed-loop regulation model.
  5. Automation controlling item adopts international high-end computer system, heating, collecting and measuring perform temperature with simulation input and output module.
  6. Man-machine interface displays current production situation, available for on line switching, parameter modification and production accounting, with automatic alarm, automatic fault detection and diagnose.
  7. Storing more than 7 kinds specification for making bottle.
  8. Adopt latest international air pneumatic.
  9. In order to save air, we choose high pressure blowing exhaust recovery system, which can save energy by 10-15%.
What is the parts of our water bottle production line?

Pneumatic part valve SMC
cylinder
Electric part PLC SIEMENS
Operating system SIEMENS
Relay OMRON
Infrared thermometer America raytek
servo motor Schneider

48KW Pet Bottle Making Machine With High Pressure Blowing Exhaust Recovery System48KW Pet Bottle Making Machine With High Pressure Blowing Exhaust Recovery System
