Two Cavity Plastic Container Manufacturing Machine Easy To Operate / Maintenance
Two Cavity Plastic Container Manufacturing Machine Easy To Operate / Maintenance
Two Cavity Plastic Container Manufacturing Machine Easy To Operate / Maintenance
Two Cavity Plastic Container Manufacturing Machine Easy To Operate / Maintenance
Specifications
Brand Name :
Eceng
Model Number :
YC-2L
Certification :
CE&ISO&SGS
Place of Origin :
China
MOQ :
1 set
Price :
10000-20000USD per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10sets per month
Delivery Time :
40working days
Packaging Details :
Film
cavity :
two
Description

Extrusion HDPE plastic bottle blow molding machine

Condition:New

Application:Bottle

Plastic Processed:PE

Blow Moulding Type:Extrusion Blow Moulding

Automatic:Yes

Voltage:380V

Power(W):15KW

Dimension(L*W*H):3.0*2.0*2.0M

Weight:6.5T

Certification:CE, ISO9001:2008

Warranty:One Year Guarantee

After-sales Service Provided:Overseas service center available

Shape mode:Double station

Extruder screw diameter:65mm

Product range:50ml to 2L

Clamping unit:Hydraulic/penumatic/bosster cylinder

Packaging Details: Covered by standard waterproof film,fixed in container.

Delivery Detail: Shipped in 35 days after payment

Product Description

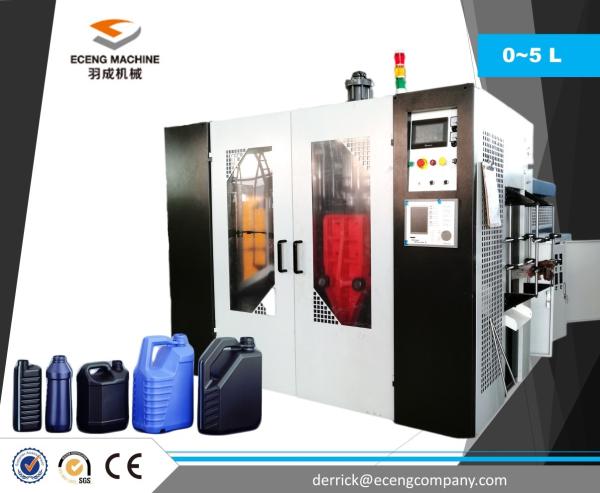

Double station extrusion blow molding machine

Model:YC-2L

(1) Double station/single layer, 65mm screw/15kw motor, for PE/PP/PVC material
(2) Output

e.g 50ml------3000pcs/hour

500ml-------1500pcs/hour

1000ml------- 900 pcs/hour
(3) Die-head 1 to 4 cavities,center feed design
(4) Electrical control MITSUBISHI PLC&Touch Screen and Schneider electric parts
(5) Hydraulic system: YUKEN oil pump,assure stable mold traverse
(6) Working condition: Power supply——380VAC, 50Hz (depending on client's country)
Water source——5HP Water chiller
Air source——0.6Mpa, 0.6m3/min (1.2 m3/min air compressor)
Application

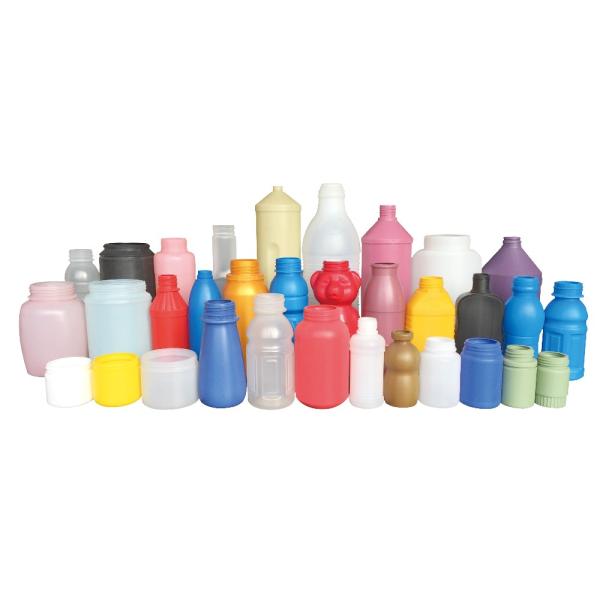

Capable for 50ml to 2L hollow plastic product with PP/PE/PVC/TPU/PA

Two Cavity Plastic Container Manufacturing Machine Easy To Operate / Maintenance

Paremeter

Item Unit Parameter
Basic Specification
Raw material / PE/PP/PA/PVC etc.
Dimension m 3.0×2.0×2.0
Total Weight kg 6500
Extrusion system
Diameter of screw mm 65
Screw L/D ratio L/D 25:1
Plasticizing capacity kg/h 70
Number of heating zones pcs 5
Extruder heating power kW 15
Extruder drive power kW 15
Die head
Number of heating zones pcs 2
Heating power kW 4
Clamping system
Clamping range mm 150-200
Sliding Distance mm 360-400
Clamping force KN 60
Power consumption
Air pressure Mpa 0.6
Air consumption m3/min 0.4
Cooling water pressure Mpa 0.3
Cooling water consumption m3/h 1.2
Oil pump power kW 7.5
Oil pump capacity ml/r 47
Total Power kW 41.5
Average power Consumption kW 17

Two Cavity Plastic Container Manufacturing Machine Easy To Operate / Maintenance

Model dispaly

Two Cavity Plastic Container Manufacturing Machine Easy To Operate / Maintenance

Two Cavity Plastic Container Manufacturing Machine Easy To Operate / Maintenance

Packaging & Shipping


Our Services

1. Reply the email and take action in 24 hours;

2. 100% Quality inspection before the shipment;

3. Can trainning clients operator for free in seller`s factory

4. Engineer overseas is avilable

5. Blowing mould and injection mould made orginal

6. Auxiliary machines for complate line.

7.Custimized design as requirements.
