Specifications
Place of Origin :
Fujian, China
Brand Name :
U-POLEMAG
Model Number :
HTN01-88
Type :
Permanent
Composite :
Neodymium Magnet
Shape :
Round
Application :
Industrial Magnet
Tolerance :
±1%
Grade :
NdFeb+rubber
Product Name :
Rubber Coated Magnet Base
Magnet :
Neodymium Magnet
Size :
D88x8mm
Pull Force :
45KG
Outside Treadment :
Rubber Coated
Thread :
M8
Poles :
12 poles
Quality System :
ISO9001:2000
Max Working Temperature :
80 Centigrade
Sample Lead Time :
15-20 Days
Packaging Details :
45kg Pull Force Diameter 88mm Rubber Coated Magnet Base With Outer Thread
Port :
XIAMEN
MOQ :
100 pieces
Price :
$3.69/pieces 100-499 pieces
Description
Rubber coated POT manget give great durability and high friction to keep them from slipping on surfaces. The rubber coating can also protect against the liguids and chipping.

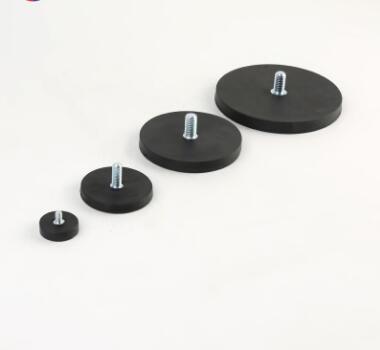

We can supply different size and pull force according to customers' request

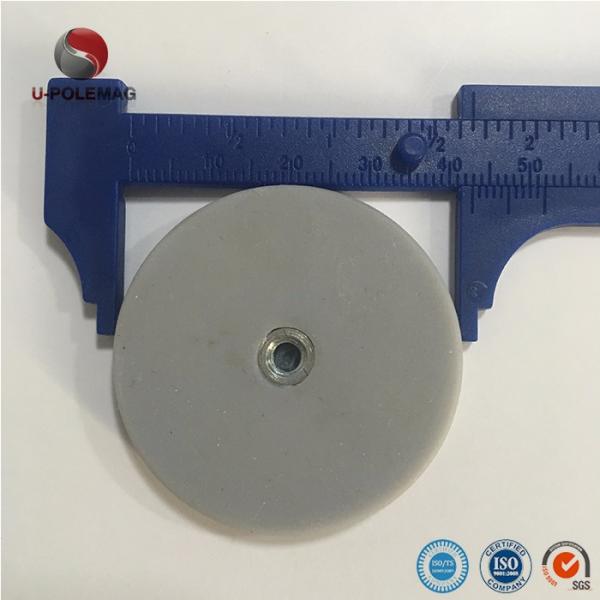

D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape
Detailed Images

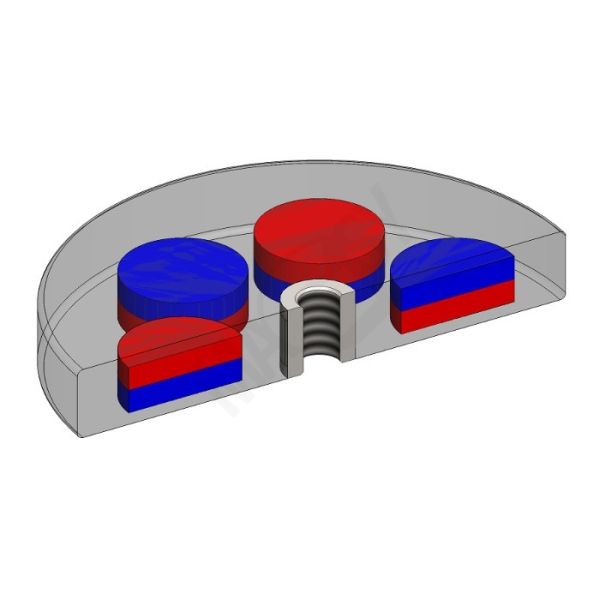

Rubber coated neodymium pot magnets are strong and durable magnetic assemblies with a threaded center hole (internal female thread) and protective rubber coating. Made with strong neodymium disc magnets attached to a flat steel disc and coated with black isoprene rubber which leaves no marks and prevents surfaces from scratching. The protective rubber coating protects magnets from corrosion or oxidation for sustained use in outdoor environments. It also prevents magnets from chipping easily and provides more slip-resistance than other types of coated or uncoated magnets.

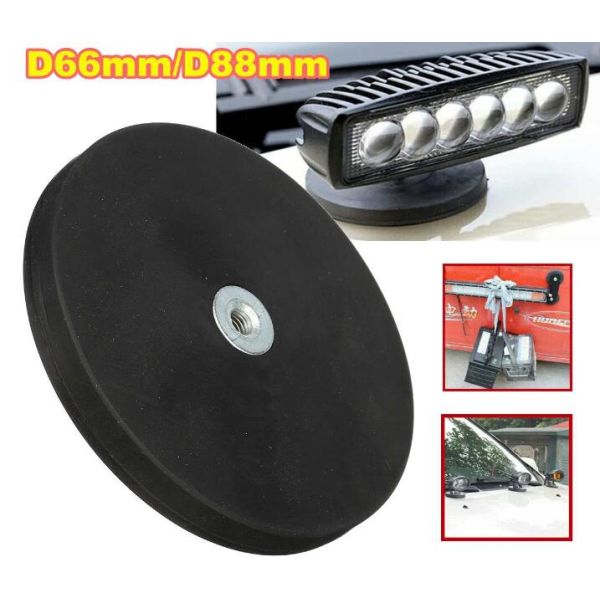

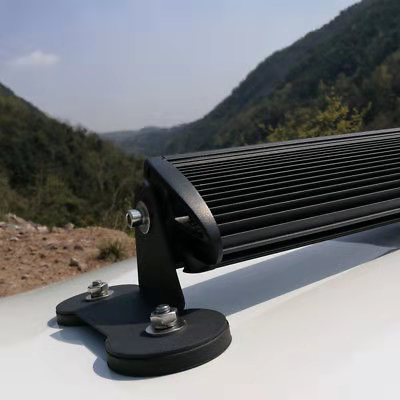

Rubber coated magnets are high in magnetic strength and weatherproof so they are ideal for indoor and outdoor applications where high magnetic strength is required. They are frequently used for holding, mounting and fixing purposes, from mounting lights or fixtures to equipment repair, holding tools and organizing items in warehouses, workstations and outdoor areas.

  • Strong pull force, waterproof, durable, high traction, corrosion resistant, temperature resistant, magnets do not easily chip.

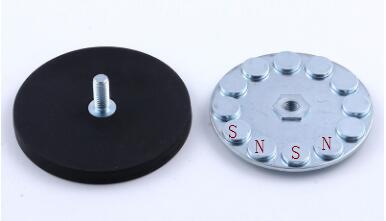

  • Constructed with Strong Neodymium magnet encased in a steel structure & coated with a protective rubber coating.
  • Internal Female Thread accommodates standard fasteners & attachments.
  • NdFeB Magnets are axially magnetized (through the thickness).
  • Isoprene Black Rubber Coating is approx. 0.03” thick.
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape
Size Information

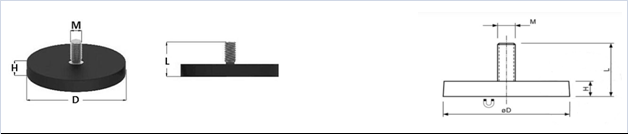

Size Chart of This Design
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape
Item Code
D (mm)
H (mm)
L (mm)
M (mm)
Pull Force (kg)
HTN01-22
22
6
12.5
M4
4.5
HTN01-22B
22
5.5
15.5
M4
4.3
HTN01-42C
44
9
19.6
M8
20
HTN01-43
43
6
21
M6
9.5
HTN01-43C
43
6
30.8
1/4-20
9.5
HTN01-66B
66
8
23
M6
20
HTN01-88
88
8.2
20
M8
45
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape
Related Products
Packing&Shipping
We hare rich experience in packing , we can supply the best solution according to the actual
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape
D88x8mm Round Rubber Coated Magnet Base With Outer Thread 45kg Pull Force Round Shape
Company Introduction

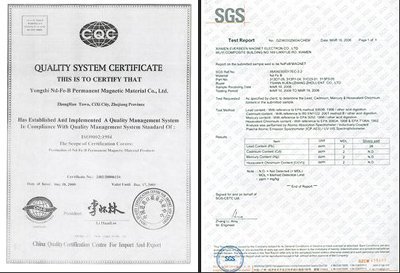

U-Polemag was established in 2004, has 70000 square meter production workshop with one-stop production process in Zhuji. Magnet is our passion, the annual production more than 3000MT ,we passed ISO9001, ISOTS16949 , SGS, BV ,RosH and various relative certification and set up partnership with many customers from all over the world. Our actions and our entire knowledge focus on these fascinating magnets and their versatile industrial application , even though we have been in this line more than 15 years.
