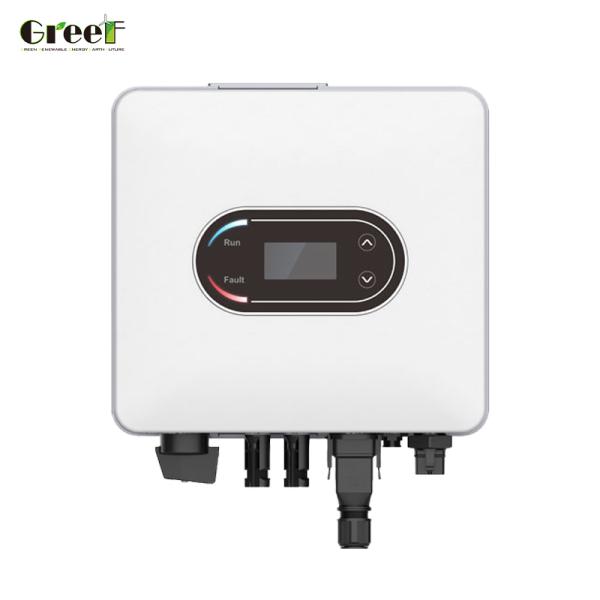

3-110KW Intelligent Simple O&M Support Outdoor Installation IP60 Single / Three Phase 50Hz / 60Hz On Grid Inverter For Home Use
3-110KW Intelligent Simple O&M Support Outdoor Installation IP60 Single / Three Phase 50Hz / 60Hz On Grid Inverter For Home Use
Specifications
Brand Name :
INVT
Model Number :
XG
Certification :
IEC/EN 62109-1/2, IEC/EN 61000-6-1/3, EN50549, IEC61727/IEC62116
Place of Origin :
CHINA
MOQ :
1SET
Price :
Negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
400SETS
Delivery Time :
15Days
Packaging Details :
Package
Rated Output Power :
3kW-110kW
Rated Input Voltage :
360V-620V
Rated Grid Voltage :
220Vac / 240Vac / 230Vac / 400Vac, 3L / N / PE, 3L / PE
Max. Current per MPPT :
20A-30A
MPPT Efficiency :
99.90%
Rated Grid Frequency :
50Hz / 60Hz
Communication :
RS485 / WiFi / 4G
Display :
LCD / LED+APP
Protection Degree :
IP66
Description
Product Introduce
INVT grid-connected inverter products demonstrate excellent performance in PV systems by virtue of a number of core technology advantages. Its intelligent diagnostic system can accurately locate PV string faults and quickly analyze the abnormalities on the AC side through real-time waveform recording. Together with the optional Arc Fault Protection Function (AFCI), it builds up a complete safety mechanism from detection to response. The product adopts a wide MPPT voltage range design, which, together with a conversion efficiency of up to 98.8%, significantly improves power generation; it supports DC overmatching function to enhance the flexibility of system expansion. In terms of operation and maintenance, the inverter supports multi-mode remote monitoring (RS485/WiFi/4G, etc.), which greatly reduces the need for on-site maintenance with its simple operation interface.
The protection level reaches IP66, adapting to the harsh outdoor environment, and integrating more than ten safety mechanisms, such as DC reverse protection, anti-islanding, surge protection, etc., to ensure the stable operation of the system. The product is compatible with high power components, and the multi-MPP tracking technology improves single-loop tracking accuracy. It is suitable for industrial, commercial, household and other scenarios, and helps clean energy projects realize the goals of high efficiency and low-carbon development.
Product Paramenters
Model
XG1KTL-S
XG2KTL-S
XG3KTL-S
XG4KTL-S
XG5KTL-S
Input (DC)
Max. Input Power
1.5kW
3kW
4.5kW
6kW
7.5kW
Max. Input Voltage
600V
Start Voltage
60V
Rated Input Voltage
360V
MPPT Voltage Range
50V ~ 550V
Number of MPP Trackers / String per MPPT
1 / 1
Max. Current per MPPT
20A
Max. Short Circuit Current per MPPT
26A
Output (AC)
Max. Output Current
5A
10A
15A
20A
22.7Ad
Rated Output Power
1kW
2kW
3kW
4kW
5kWa
Max. Output Power
1.1kVA
2.2kVA
3.3kVA
4.4kVA
5kVAc
Rated Grid Frequency
50Hz / 60Hz
Rated Grid Voltage
220Vac / 230Vac / 240Vac
Rated Grid Voltage
>0.99 ( 0.8 leading ~ 0.8 lagging )
THDi
3%(Rated Power)
MPPT Efficiency
99.90%
Communication
Display
LCD / LED+APP
Communication
RS485 / WiFi / 4G
Certification
IEC/EN 62109-1/2, IEC/EN 61000-6-1/3, EN50549, IEC61727/IEC62116
Weight
6kg
Operating Temperature Range
-30° C ~ +60° C
Cooling Method
Natural
Protection Degree
IP66
Relative Humidity
0 ~ 100%
Topology
Transformerless
Night Power Consumption
＜1W
The above table is only a few of the product parameters, if you need the parameters of other product models, please contact our sales staff.
Details Images
System Solution
We can customize the system to your needs, please contact us.
