Dimethylformamide DMF solution peristaltic PUMP
Dimethylformamide DMF solution peristaltic PUMP
Dimethylformamide DMF solution peristaltic PUMP
Dimethylformamide DMF solution peristaltic PUMP
Dimethylformamide DMF solution peristaltic PUMP
Dimethylformamide DMF solution peristaltic PUMP
Dimethylformamide DMF solution peristaltic PUMP
Dimethylformamide DMF solution peristaltic PUMP
Dimethylformamide DMF solution peristaltic PUMP
Dimethylformamide DMF solution peristaltic PUMP
Specifications
Warranty :
1year
Customized support :
OEM
Brand Name :
Huiyu
Model Number :
OEMQS100-01
Place of Origin :
Beijing, China
Application :
Food and Beverage Industry, Pharmaceutical industry, wastewater treatment
Horsepower :
20w
Power Source :
Electric
Pressure :
0.2mpa, 2bar 0.2mpa 30psi
Structure :
micro OEM peristaltic pump
Cable Length :
1m
Outlet Size :
3mm
Voltage :
24v 12v
Power :
20w
motor :
stepper motor
Product name :
Dimethylformamide DMF solution peristaltic PUMP
Chemical compatibility :
Acid ,Alkali ,organic solvent
Max Flow rate :
0.2-41mL/min
motor speed :
0-100rpm
Suitable tubing type :
wall thickness0.8-1mm ID≤3.17mm
Weight :
0.5Kg
Power supply :
24v dc
Packaging Details :
Dimethylformamide DMF solution peristaltic PUMP
carton with foam plastic
Port :
Beijing, Tianjin ,Hongkong
Supply Ability :
1000 Set/Sets per Week
Price :
$65.00 - $110.00/sets
Description
Product Description

Dimethylformamide DMF solution peristaltic PUMP

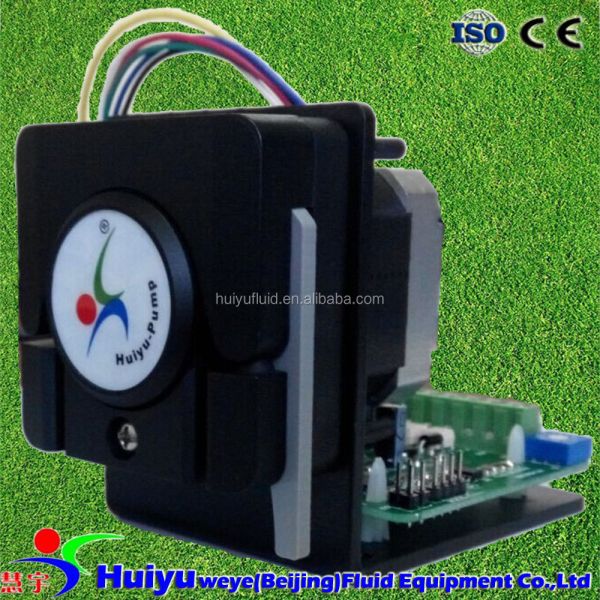

WX10pump head with drive board

Dimethylformamide DMF solution peristaltic PUMP

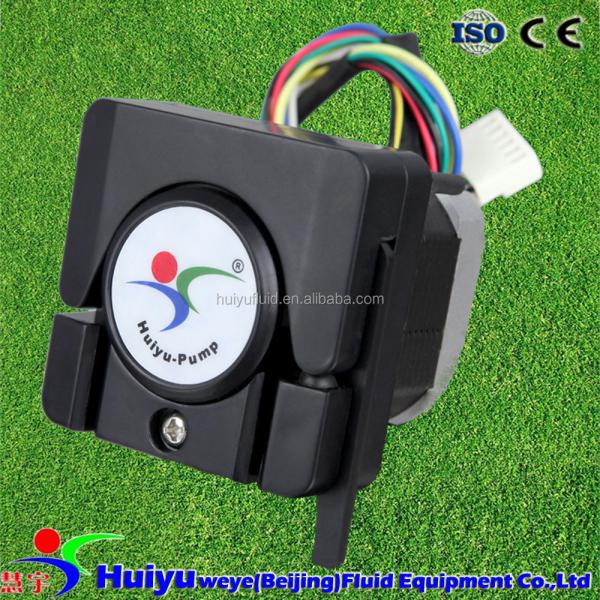

WX10pump head without drive board

Dimethylformamide DMF solution peristaltic PUMP

- Flow range:0006-41ml/min

- Speed: ≤100rpm
- Speed resolution: 0.1rpm
- Max. flow rate: 41mL/min
- Tubing: ID≤3.17mm wall thickness 0.8mm-1.0mm
- *Direction control: Pump runs if external control input is open circuit; pump stops if external control input is close circuit.
- *Start/stop control: Pump runs if external control input is open circuit; pump stops if external control input is close circuit.
- *BCD dial switch speed control: 15 kind of speeds are available for internal control, and "0" position is for external control.
- *External speed control (optional):
4-20mA corresponding to 0-100rpm
0-5V corresponding to 0-100rpm
0-10V corresponding to 0-100rpm
0-10kHz corresponding to 0-100rpm
- Dimension (LxWxH): 107mmx60mmx80mm
- Relative humidity: <80%
- Operating temperature: 0 to 40°C
- Power supply: DC11.4V-25.2V/10W
Dimethylformamide DMF solution peristaltic PUMP



Dimethylformamide DMF solution peristaltic PUMP

Accessories

Dimethylformamide DMF solution peristaltic PUMP

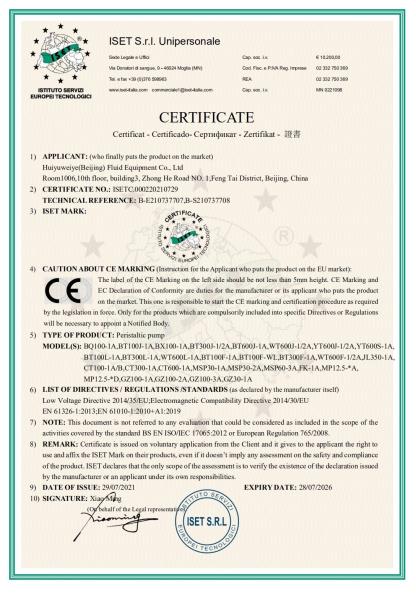

CE certificate

Dimethylformamide DMF solution peristaltic PUMP

Dimethylformamide DMF solution peristaltic PUMP
