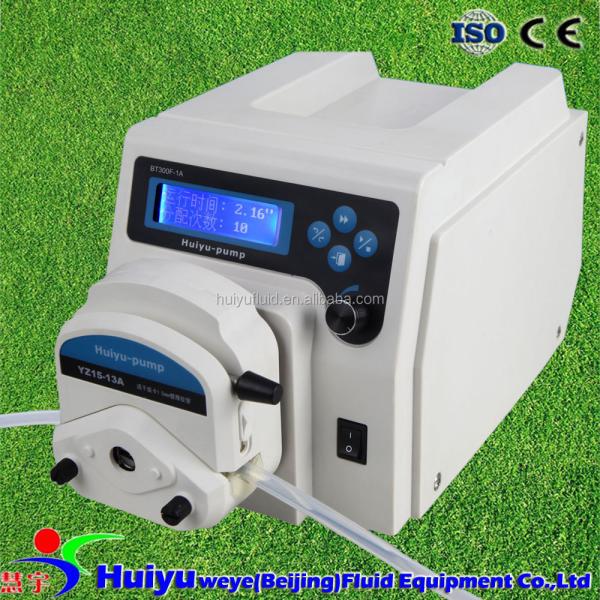

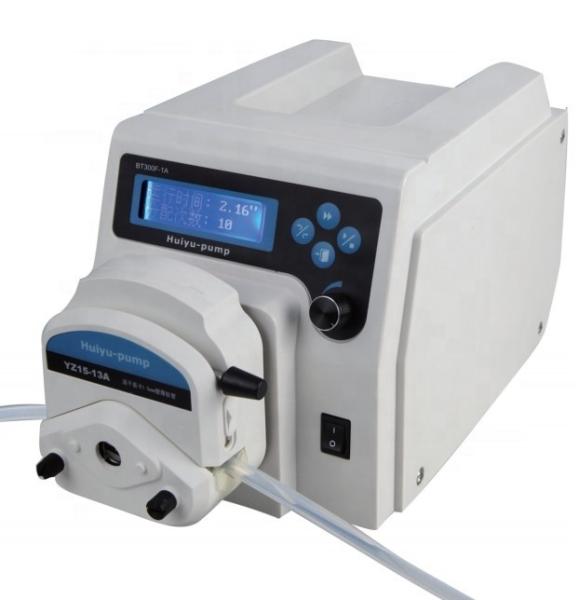

intelligent Dispensing Peristaltic Pump for Small Bottle Filling
intelligent Dispensing Peristaltic Pump for Small Bottle Filling
intelligent Dispensing Peristaltic Pump for Small Bottle Filling
intelligent Dispensing Peristaltic Pump for Small Bottle Filling
intelligent Dispensing Peristaltic Pump for Small Bottle Filling
intelligent Dispensing Peristaltic Pump for Small Bottle Filling
Specifications
Warranty :
1 year
Customized support :
OEM
Brand Name :
Huiyu
Model Number :
BT300F-1A
Place of Origin :
Beijing, China
Application :
Food and Beverage Industry, Pharmaceutical industry, Metering
Horsepower :
300rpm
Power Source :
Electric
Pressure :
0.2mpa, Low Pressure
Structure :
reciprocal
Power :
Electric
Standard or Nonstandard :
Nonstandard
Theory :
Reciprocating Pump
product :
table top semi precision automatic liquid vial filler
Brand :
Huiyu
Certification :
RoHS
Supply Ability :
100 Set/Sets per Week
Price :
$540.00 - $900.00/sets
Description
Product Description

table top semi precision automatic liquid vial filler intelligent Dispensing Peristaltic Pump for Small Bottle Filling

max flow rate :1140ml/min

Technical parameter
 Speed: 1-300 rpm, reversible Speed precision: 1 rpm
Speed control: membrane keypad and rotary encoded switch
Display: LCD displays flow rate, speed or dispensing mode
Copy number: 1 to 999, 0 means unlimited cycle
Dispensing volume: 0.1 mL to 99.9 L
Pause time : 1 to 999 sec
Back suction angle: 0 to 360°, 18° increments
External control: 0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional
Communication: RS485
Output signal: start/stop, direction output and speed, OC gate output mode
Power: 90-260V AC,50/60Hz
Power consumption: < 50W
Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
Dimensions (L × W × H): 276×184×175 (mm)
Drive Weight: 3.5 kg

Technical parameters
Pump head model Available tubing flow rate range (ml/min)
YZ15-lA 13#, 14#, 19#, 16#, 25#, 17#, 18# wall thickness:1.5mm 0.07-1140ml/min
YZ25-lA 15#, 24# wall thickness:2.5mm 1.7-810ml/min

intelligent Dispensing Peristaltic Pump for Small Bottle Fillingintelligent Dispensing Peristaltic Pump for Small Bottle Filling intelligent Dispensing Peristaltic Pump for Small Bottle Filling

OEM option

intelligent Dispensing Peristaltic Pump for Small Bottle Filling

Accessories

intelligent Dispensing Peristaltic Pump for Small Bottle Filling

Packaging & Shipping

intelligent Dispensing Peristaltic Pump for Small Bottle Filling

Special designed carton and foam plastic cushion

Professional bundling machine ensure safe delivery to customers directly .

These precise instruments are mainly delivered by Express like DHL FedEx etc.

intelligent Dispensing Peristaltic Pump for Small Bottle Filling

CE certificate

intelligent Dispensing Peristaltic Pump for Small Bottle Filling
